- Automatic spring retractable reel
- Plastic casing
- Swivel wall bracket
- Abrasion-resistant polyurethane hose
- Working temperature up to +50°C (for water max +40°C)
- Working pressure up to 15 bar

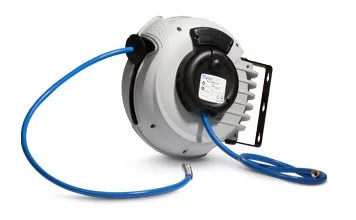

Compact series and Major series hose reels are suitable for water and compressed air in applications with a limited space requirement such as service cars, assembly lines, workbenches. Thanks to their plastic casing the hose reels are very lightweight.
They are offered with a wall bracket and polyurethane hose additionally equipped with a spring guard attached near the fitting, which protects the hose against excessive bending at the spot adjacent the fitting.
Low weight
Compact design
Economy version
Includes a swivel bracket and supply hose as standard
CE marked

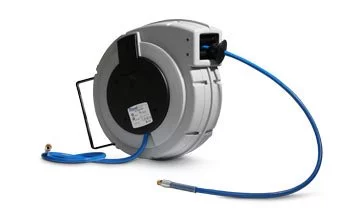

Hose reel with 15m hose for water and compressed air, MAJOR
Hose length 15 m
Hose diameter: 5/16″
Connection type (inlet): female thread 1/4″ BSP
Connection type (outlet): male thread 1/4″ BSP
Hose length 15 m
Hose diameter: 3/8″
Connection type (inlet): female thread 3/8″ BSP
Connection type (outlet): male thread 3/8″ BSP
