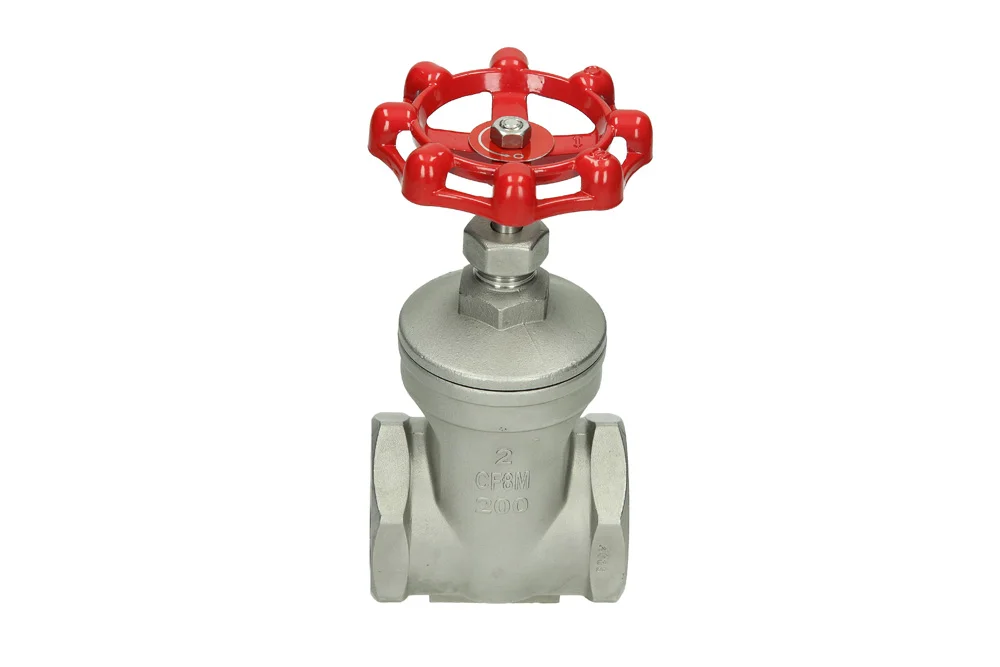

Stainless steel gate valve with BSP GW, type 2029
Variant parameters
| Article number | HT-2029-32X |
| Product variant name | Gate valve with 1.1/4" BSP thread, AISI 316 |
| Nominal inner diameter | 32 |
| Working pressure [bar] | 13.8 |
Short description
Universal gate valve type 2029 with metal-metal sealing and non-rising stem, intended for industrial installations. Allows for regulation or throttling at low flow rates. Maximum constant working pressure across the full temperature range. Body material: AISI 316 steel. Disc material: AISI 316 steel. Handwheel material: aluminum. Stem sealing: PTFE. Connection: BSP thread. Operating temperature: from -20°C to +200°C.
