Threaded end with GZ for steam hose according to EN 14423, VSS type EN

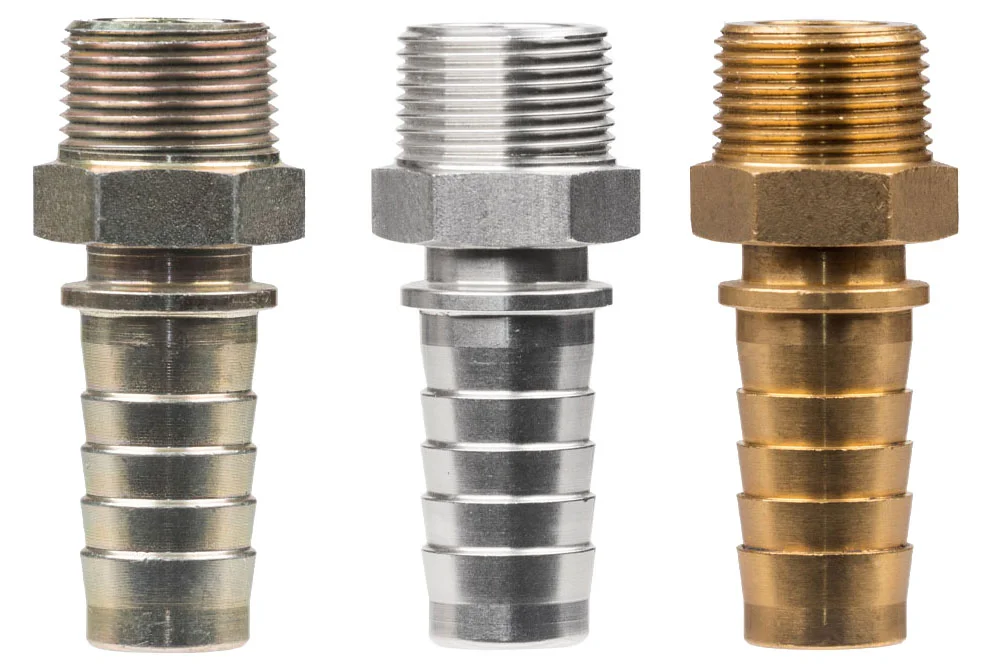

High-quality fittings with external threads BSPT and NPT. Designed for rubber hoses for steam, with a corrugated tail for the hose, with a lock – for installation in the hose using shell clamps for steam (Heavy Duty type). Sealing of fittings with external threads – on the thread (e.g., with Teflon tape); for BSPT threads, there is an option for flat sealing on the end face. Material: galvanized steel, AISI 316 steel, brass. Operating temperature: up to +230°C. Working pressure: 18 bar (+210°C) – saturated steam.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
High-quality fittings with external threads BSPT and NPT. Designed for rubber hoses for steam, with a corrugated tail for the hose, with a lock – for installation in the hose using shell clamps for steam (Heavy Duty type). Sealing of fittings with external threads – on the thread (e.g., with Teflon tape); for BSPT threads, there is an option for flat sealing on the end face. Material: galvanized steel, AISI 316 steel, brass. Operating temperature: up to +230°C. Working pressure: 18 bar (+210°C) – saturated steam.
Additional information
| Material | B – brass (bronze) |
|---|---|
| Standard length [m] | 60 |
