FERRARI lever couplings

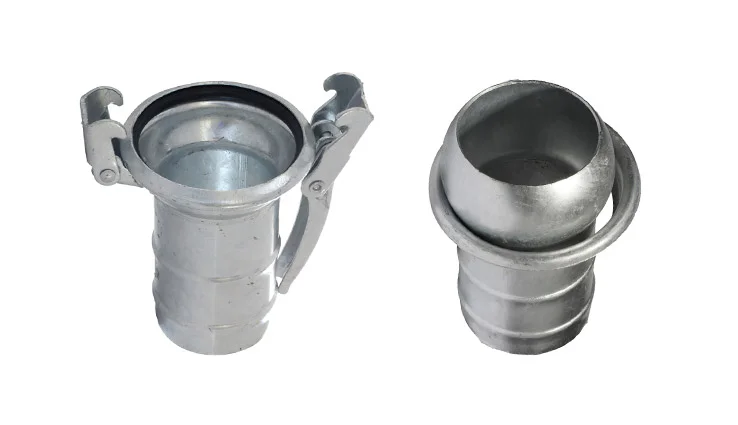

  • FERRARI lever couplings in zinc-plated steel

FERRARI lever couplings – general information

FERRARI lever couplings, originated in Italy, is a simple and economical solution for water, liquid media and solid (bulk) materials. Manufactured in zinc-plated steel as standard (or AISI 304 stainless steel option). NR/SBR rubber seal. Nominal coupling sizes: 48, 60, 80, 100, 120 and 150 mm.
Working pressure:

  • 10 bar (size 48 and 60 mm)
  • 9 bar (size 80 mm)
  • 8 bar (size 100 mm)
  • 7 bar (size 120 mm)
  • 6 bar (size 150 mm)

Options include a version with higher working pressure and with three hooks. FERRARI couplings allow some angular deflection between the parts while connecting (from 20° – larger sizes, up to 26° – smaller sizes). The range includes couplings with hose tails, with male thread, with flanges or weld-in connections, blank caps, but also straight pipes with couplings, elbows and tees. FERRARI couplings are extensively used in farming and horticulture for irrigation and sprinklers, in construction, road works, sewage disposal and sewage treatment plants, environment protection and for loose materials transfer.

Catalogue
Download

Sales Network
Check

E-shop
See more

Inquiry
Send

List of products:

FERRARI lever couplings in zinc-plated steel

FERRARI lever couplings with hose tail

 FERRARI lever couplings reducing with hose tail

FERRARI lever couplings reducing with hose tail

FERRARI lever couplings with male thread

FERRARI lever couplings with male thread

FERRARI lever couplings with flanges – DIN PN10/16

FERRARI lever couplings with flanges – DIN PN10/16

FERRARI lever coupling connectors

FERRARI lever coupling connectors

FERRARI lever coupling - blank caps

FERRARI lever coupling – blank caps

If you need help choosing a product or haven’t found the right one?
