Pipe connecting clamps – general information

UNI pipe couplings are designed to connect or repair industrial transfer pipes made of metal (carbon steel, stainless steel, cast iron, copper, cupro-nickel etc.) and plastics: PE, PVC, PP, PB (polybutylene). They are a cost-competitive alternative to conventional pipe joining methods for both plastic pipes and metal pipes. They are compact and handy so installation is quick and easy, even in tight spaces with limited access. UNI pipe couplings effectively dampen pressure variations, vibrations, acoustic waves. They reduce the fatigue wear of a system. The couplings compensate small misalignments or angular deflection of pipe axes while remaining perfectly leak-tight.

The UNI couplings are widely used in the construction of pipeline systems for conveying fluids, solids and gases in the shipbuilding and marine industry, construction industry, mining, water supply and sewerage systems, fire protection systems, industrial cooling water systems, process water, drinking water systems, compressed air, oil and chemicals.

UNI pipe couplings are approved by many institutions: DVGW, IACS, Bureau Veritas, Class NK, Lloyds Register, DNV, RINA, Korean Register, ABS, Russian Maritime Register of Shipping, China Classification Society.

There are two basic versions of UNI couplings:

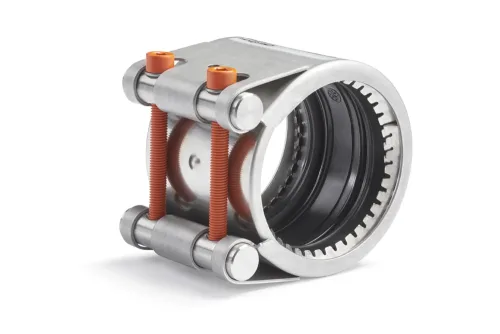

  • GRIP – axially restrained joint, with rubber seal and resilient metal rings which bite into the pipe surface,

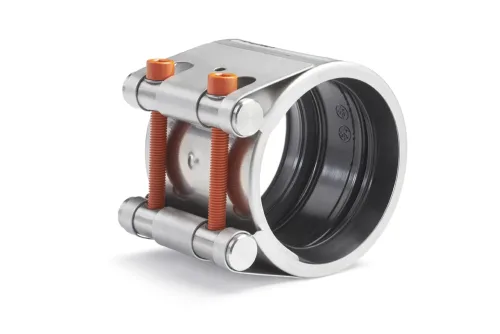

  • FLEX – axially unrestrained joint, flexible – with rubber seal only.

Both types of couplings are designed to join pipe ends to each other tightly and firmly, however the piping system must consist of pipe sections which are properly supported, anchored and correctly guided. The couplings do not absorb axial loads, bending or twisting. FLEX and REP couplings can absorb axial displacement during operation (change of distance between the ends of connected pipes) up to 5 mm for standard FLEX couplings up to 172 mm in size. Installation is quick and simple though relevant mounting instructions must be followed (contact Tubes International). Always check the distance between pipe ends (Cmax), their angular deflection, misalignment, pipe diameters, roundness error, potential axial displacement – and determine if they are within acceptable limits set for the given type of couplings. Smooth clean pipes do not require any pipe-end preparations. While joining plastic pipes special inserts should be used as reinforcement. A torque wrench is required for installation. The bolts must be tightened alternately to the torque value indicated on the coupling. For applications under vacuum (from 0,5 bar), at external pressure or for chemicals that may cause the seal to swell, use an internal metal strip insert.

Catalogue
Download

Sales Network
Check

E-shop
See more

Inquiry
Send

List of products:

Pipe couplings for metal pipe connections

GRIP – Pipe couplings for metal pipe connections

Pipe couplings for plastic pipe connections

PLASTGRIP – Pipe couplings for plastic pipe connections

Pipe couplings for connecting metal pipes to plastic pipes

COMBIGRIP – Pipe couplings for connecting metal pipes to plastic pipes

Pipe couplings for connecting metal pipes and plastic pipes

FLEX – Pipe couplings for connecting metal pipes and plastic pipes

pipe repair clamp

REP – Pipe couplings for repairing metal and plastic pipe connections under pressure

Fire-resistant cover for pipe couplings

Fire-resistant cover for pipe couplings
