Is the 22 mm UL and CSA coil for PIV.I valves, Ã8 stem compatible with the specified insulation class F155 and voltage tolerance -10 while maintaining IP65 (EN60529) with connector?

Yes. The 22 mm UL and CSA coil for PIV.I valves, Ã8 stem is compatible with the specified Insulation Class F155 and the voltage tolerance of -10 while maintaining IP65 (EN60529) protection with the connector. The coilâs construction meets the F155 insulation rating, is designed to operate safely within the stated voltage window, and the connector-equipped assembly provides the required dust and water ingress protection per IP65 when properly installed.

Does the 22 mm UL and CSA coil for PIV.I valves, Ã8 stem maintain IP65 (EN60529) with connector under voltage -10 and insulation class F155?

Yes. The 22 mm UL and CSA coil for PIV.I valves, Ã8 stem maintains IP65 (EN60529) with the connector when operated within the specified voltage tolerance of -10 and with insulation class F155, as stated in the product description.

Can the 22 mm UL and CSA coil for PIV.I valves, Ã8 stem operate reliably at -10% to +15% voltage with insulation class F155 and IP65 (EN60529) connector?

Yes. Based on the provided specification, the 22 mm UL and CSA coil for PIV.I valves, Ã8 stem can operate reliably within the stated -10% to +15% voltage tolerance when fitted with insulation class F155 and an IP65 (EN60529) connector. Reasoning: - Voltage tolerance: The coilâs rated voltage range explicitly allows operation from -10% to +15%, so normal supply variations within that band are within design limits and should not cause malfunction or immediate degradation. - Insulation class F155: Class F (155 Â°C) insulation provides a high thermal margin, helping the coil withstand elevated temperatures from both ambient heat and additional heating due to voltage variation or continuous operation, improving long-term reliability. - Protection degree IP65 (EN60529) with connector: IP65 protects against dust ingress and low-pressure water jets, preventing contaminants and moisture from causing electrical faults or corrosion at the connector, which supports reliable operation in typical industrial environments. Caveats and good practices: - Continuous operation at the extremes (especially +15%) increases power dissipation and heating; ensure adequate cooling and observe manufacturerâs duty cycle recommendations. - Confirm supply stabilityâfrequent or large transients outside -10 require surge protection. - Verify installation and connector sealing to maintain IP65 protection. - For safety-critical or warranty-sensitive applications, consult the manufacturer for test validation under your specific environmental and duty conditions. Conclusion: With proper installation, cooling, and supply quality, the 22 mm UL and CSA coil for PIV.I valves, Ã8 stem with insulation class F155 and IP65 connector is suitable for reliable operation at -10% to +15% voltage tolerance.

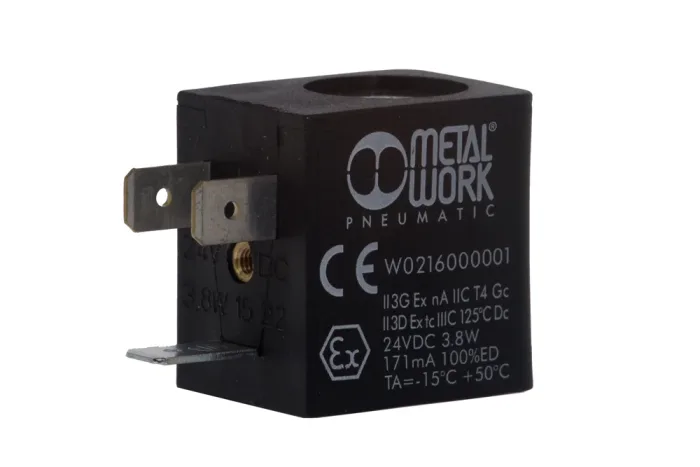

A coil 22 mm UL and CSA for valves PIV.I, stem Ø8

All products, Equipment for pneumatic valves/

Additional information

Standard length [m]	100, 2

A coil 22 mm UL and CSA for valves PIV.I, stem Ø8. Insulation class: F155. Voltage tolerance: -10% for +15%. Protection degree: IP65 EN60529 with a connector.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0216000001	A coil 22 mm D9 3.8W 24V DC (valves PIV.T)	-	-	In stock	Enquiry
MW-W0216000011	A coil 22 mm D9 6.5VA 24V AC 50/60 Hz (valves PIV.T)	-	-	In stock	Enquiry
MW-W0216000021	A coil 22 mm D9 6.5VA 110V AC 50/60 Hz (valves PIV.T)	-	-	In stock	Enquiry
MW-W0216000031	A coil 22 mm D9 6.5VA 220V AC 50/60 Hz (valves PIV.T)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A coil 22 mm UL and CSA for valves PIV.I, stem Ø8. Insulation class: F155. Voltage tolerance: -10% for +15%. Protection degree: IP65 EN60529 with a connector.
