Is the 90Â° connector for PP, PVDF plastic hose, series 1+ type EM compatible with silicone, PTFE, and TYGONÂ® smooth-walled hoses under 16 bar working pressure?

Yes. The 90Â° connector for PP, PVDF plastic hose, series 1+ type EM is compatible with silicone, PTFE, and TYGONÂ® smooth-walled hoses at the specified working pressure. The product description explicitly states it is intended for flexible smooth-walled unreinforced hoses made of PTFE, silicone, and TYGONÂ®, and its rated working pressure is 16 bar, matching your requirement.

Does the 90Â° connector for PP, PVDF plastic hose, series 1+ type EM allow tool-free multiple installations with PUR or PFA hoses?

Yes. The 90Â° connector for PP, PVDF plastic hose, series 1+ type EM allows tool-free multiple installations with PUR or PFA hoses. The product description explicitly states the design permits multiple installations without tools and lists PUR and PFA among the compatible flexible smooth-walled unreinforced hose materials.

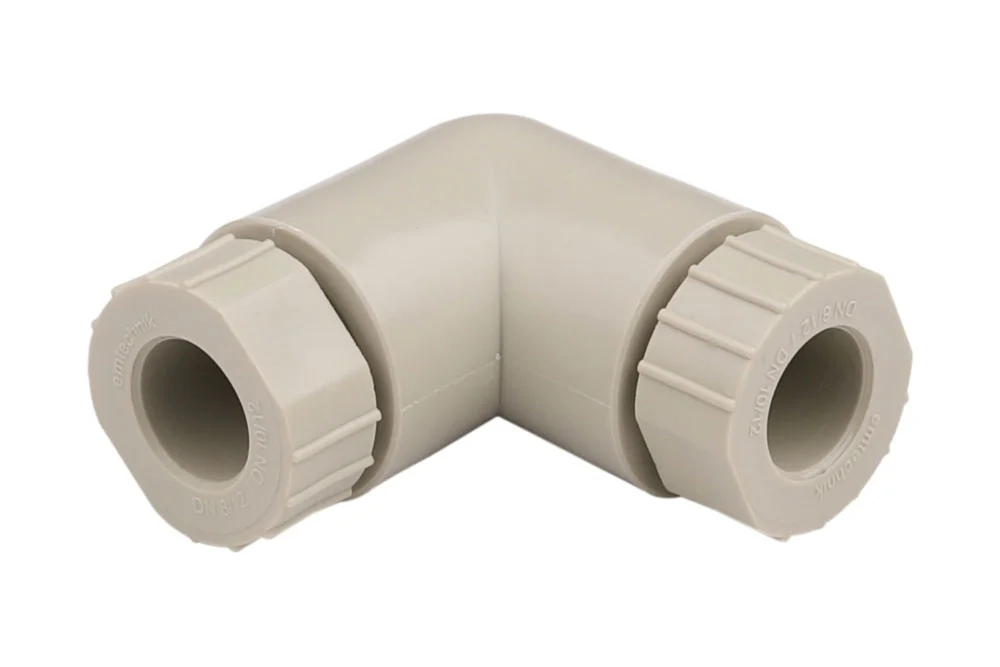

90° connector for PP, PVDF plastic hose, series 1+ type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Connector for hose 90° type EM, finds wide application in laboratories, medicine, pharmaceutical, chemical, and food industries. The design allows for multiple installations without the need for tools. It is intended for flexible smooth-walled unreinforced hoses made of PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone, and TYGON^® hoses. Material: polypropylene, PVDF. Working pressure: 16 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1P200T40PP	90° connector (series 1+), hose 4x6 mm, polypropylene	4	16	In stock	Enquiry
EM-1P200T40PV	90° connector (series 1+), hose 4x6 mm, PVDF	4	16	In stock	Enquiry
EM-1P200T43PP	90° connector (series 1+), hose 6x8 mm, polypropylene	6	16	In stock	Enquiry
EM-1P200T43PV	90° connector (series 1+), hose 6x8 mm, PVDF	6	16	In stock	Enquiry
EM-1P200T45PP	90° connector (series 1+), hose 8x10 mm, polypropylene	8	16	In stock	Enquiry
EM-1P200T45PV	90° connector (series 1+), hose 8x10 mm, PVDF	8	16	In stock	Enquiry
EM-1P200T48PP	90° connector (series 1+), hose 10x12 mm, polypropylene	10	16	In stock	Enquiry
EM-1P200T48PV	90° connector (series 1+), hose 10x12 mm, PVDF	10	16	In stock	Enquiry
EM-1P200T51PV	90° connector (series 1+), hose 12x14 mm, PVDF	12	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Connector for hose 90° type EM, finds wide application in laboratories, medicine, pharmaceutical, chemical, and food industries. The design allows for multiple installations without the need for tools. It is intended for flexible smooth-walled unreinforced hoses made of PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone, and TYGON^® hoses. Material: polypropylene, PVDF. Working pressure: 16 bar.
