Is the 90Â° connector for LAUX lever joint 42 socket-plug, carbon steel, KRKB suitable for use with food-grade materials and which gasket should be chosen?

90Â° connector for LAUX lever joint 42 socket-plug, carbon steel, KRKB is not specifically described as food-grade in the provided spec. Base material (carbon steel, galvanized) and the standard EPDM gasket are commonly used for general industrial applications (grain, flour, feeds, etc.), but galvanization and standard EPDM do not automatically meet food-contact certifications (e.g., FDA, EU 1935/2004, NSF). If you need food-grade compatibility, choose a gasket and surface treatment certified for food contact. Recommended options: - FKM/VitonÂ® or silicone with food-grade certification for high chemical/temperature resistance only if certified for food use. - EPDM food-grade (specifically declared food-grade/FDA-compliant EPDM) if the product is compatible with the specific foodstuffs and temperatures (-50Â°C to +120Â°C is fine). - PTFE (Teflon) gaskets with food-grade certification where high chemical inertness is required. Also verify the connectorâs surface finish and galvanization are acceptable for food contact or request stainless steel (e.g., AISI 316) and food-grade gasket to ensure compliance. In short: 90Â° connector for LAUX lever joint 42 socket-plug, carbon steel, KRKB can be used with food materials only if you replace or specify a certified food-grade gasket and confirm suitable surface/material certifications.

Can the 90Â° connector for LAUX lever joint 42 socket-plug, carbon steel, KRKB be used in corrosive environments and which gasket material is recommended?

90Â° connector for LAUX lever joint 42 socket-plug, carbon steel, KRKB can be used in mildly corrosive or wet environments thanks to its galvanized carbon steel construction, but it is not intended for highly corrosive or chemically aggressive atmospheres (strong acids, alkalis, chloride-rich marine environments) without additional protection. Standard sealing is EPDM, which is suitable for water, many aqueous solutions, and a wide temperature range (-50Â°C to +120Â°C). If the medium is other than water or is chemically aggressive, choose gasket material based on chemical compatibility (e.g., NBR for oils, FKM/Viton for hydrocarbons and aggressive chemicals, PTFE for strong chemicals). For corrosive environments consider stainless steel connectors or additional coatings and verify compatibility of both body and gasket with the specific medium.

Can the 90Â° connector for LAUX lever joint 42 socket-plug, carbon steel, KRKB be used with abrasive bulk materials like cement or sand?

Yes. the 90Â° connector for LAUX lever joint 42 socket-plug, carbon steel, KRKB can be used with abrasive bulk materials like cement or sand, but with important conditions and precautions: - Applicability: The product description explicitly lists transport and unloading of bulk materials (including cement and minerals) among its wide applications, so the connector is intended for such use. - Gasket selection: Abrasive dry materials can accelerate wear on seals. The standard EPDM gasket is suitable for many media but may not offer optimal abrasion resistance for heavy, gritty solids. For prolonged use with abrasive powders or frequent abrasive flow, select a more abrasion-resistant gasket material (e.g., NBR, nitrile, or other specified compounds if recommended by the manufacturer) or confirm the best option with the supplier. - Material and protection: The connector is carbon steel, galvanized, which provides general corrosion protection. Galvanizing helps resist wear from particulate flow, but severe abrasion over time will still cause erosion of the metal surface. Consider protective measures (wear sleeves, hardened inserts) or more abrasion-resistant materials if high wear is expected. - Installation and pressure: Ensure system pressures stay within rated limits (max 12.5 bar for liquids, 8 bar for air). Vacuum tightness and operating temperature range (-50Â°C to +120Â°C) are suitable for typical cement/sand handling conditions. - Maintenance: Expect increased inspection and maintenance frequency when handling abrasive bulk materialsâmonitor seals and contact surfaces and replace worn parts promptly. Conclusion: The 90Â° connector for LAUX lever joint 42 socket-plug, carbon steel, KRKB is suitable for use with cement and sand, provided you choose an appropriate gasket for abrasion resistance, account for potential metal erosion, and plan for more frequent maintenance or protective measures for high-abrasion applications.

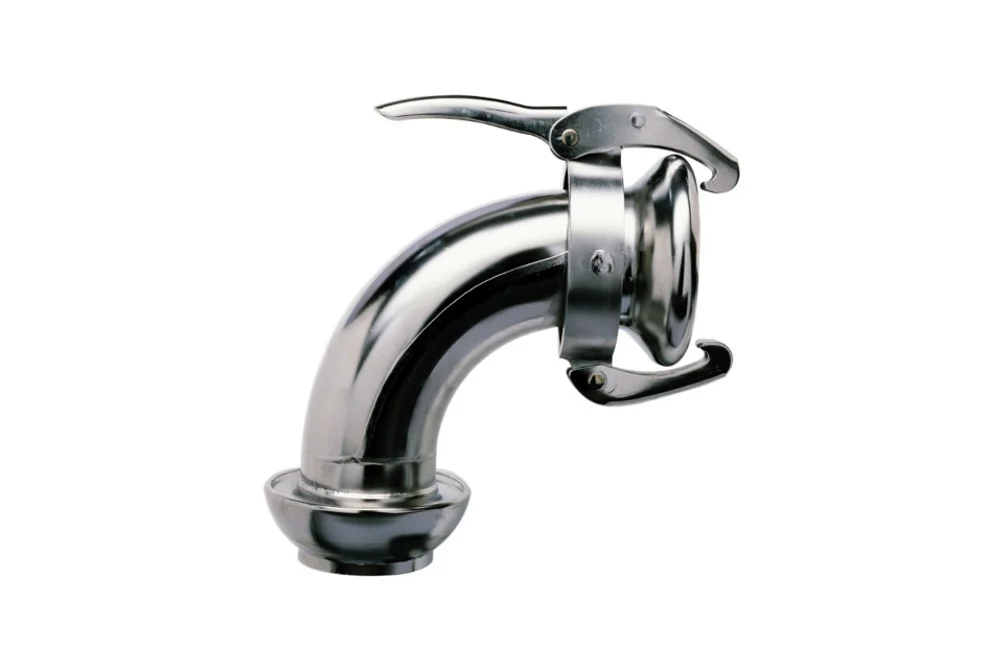

Connector 90° lever coupling LAUX 42 socket-plug, steel carbon, KRKB

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)

Connector 90° lever coupling LAUX 42 socket-plug with wide application np.: for transferring and unloading bulk materials (grain, flour, feed, granulates, cement, minerals), for pressure and vacuum pumps, for building temporary water and air installations in construction, mining and agriculture, and for irrigation systems. When selecting a coupling for a medium other than water, attention should be paid to the correct selection of the gasket material. The standard seal is an EPDM gasket. Material: steel carbon, galvanized. Maximum Working pressure: 12.5 bar (for fluids), 8 bar (for air). Vacuum tightness. Operating temperature: from -50°C to +120°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TF-KRKB-90-048	Connector 90° KRKB socket-plug 48 mm, galvanized steel	-	12.5	In stock	Enquiry
TF-KRKB-90-076	Connector 90° KRKB socket-plug 76 mm, galvanized steel	-	12.5	In stock	Enquiry
TF-KRKB-90-102	Connector 90° KRKB socket-plug 102 mm, galvanized steel	-	12.5	In stock	Enquiry
TF-KRKB-90-133	Connector 90° KRKB socket-plug 133 mm, galvanized steel	-	12.5	In stock	Enquiry
TF-KRKB-90-152	Connector 90° KRKB socket-plug 152 mm, galvanized steel	-	12.5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Connector 90° lever coupling LAUX 42 socket-plug with wide application np.: for transferring and unloading bulk materials (grain, flour, feed, granulates, cement, minerals), for pressure and vacuum pumps, for building temporary water and air installations in construction, mining and agriculture, and for irrigation systems. When selecting a coupling for a medium other than water, attention should be paid to the correct selection of the gasket material. The standard seal is an EPDM gasket. Material: steel carbon, galvanized. Maximum Working pressure: 12.5 bar (for fluids), 8 bar (for air). Vacuum tightness. Operating temperature: from -50°C to +120°C.
