Is the Elbow 90Â° with GW BSP/GZ BSP, brass, type EW rated for continuous use at pressures up to 63 bar and temperatures from -10Â°C to +90Â°C?

Yes. The Elbow 90Â° with GW BSP/GZ BSP, brass, type EW is rated for continuous use at pressures up to 63 bar and temperatures from -10Â°C to +90Â°C, per the provided specification.

Can Elbow 90Â° with GW BSP/GZ BSP, brass, type EW be used in hydraulic systems with intermittent pressure spikes to 63 bar and temperatures between -10Â°C and +90Â°C?

Yes. Elbow 90Â° with GW BSP/GZ BSP, brass, type EW is specified for a working pressure up to 63 bar and an operating temperature range of -10Â°C to +90Â°C, so it can be used in hydraulic systems experiencing intermittent pressure spikes to 63 bar and temperatures within that range. Ensure installations follow proper tightening and sealing practices and consider system dynamics-if spikes exceed 63 bar, are frequent/long-duration, or involve aggressive fluids/corrosive environments, select a component with higher safety margin or consult the manufacturer.

Can Elbow 90Â° with GW BSP/GZ BSP, brass, type EW be safely installed with sealing compounds for BSP threads at pressures up to 63 bar?

Yes. Elbow 90Â° with GW BSP/GZ BSP, brass, type EW can be safely installed using appropriate sealing compounds for BSP threads for systems up to 63 bar, provided the following conditions are met: - Use thread sealants (PTFE tape or liquid/paste sealants) specifically rated for BSP (parallel or tapered as appropriate) and certified for pressures up to or exceeding 63 bar and the systemâs operating temperature range (-10Â°C to +90Â°C). - Confirm thread type match: ensure sealing method suits BSPP (parallel) vs BSPT (tapered). BSPP typically requires a sealant on the thread plus a metal-to-metal seat or an O-ring; BSPT relies on the sealant to fill thread clearances. - Apply sealant correctly: wrap PTFE tape in the thread direction without overfilling, or apply liquid sealant per manufacturer instructions; allow curing time if required. - Avoid over-tightening: follow recommended torque values for brass fittings to prevent thread deformation or cracking; use suitable tools and support piping to prevent stress. - Verify chemical compatibility: ensure sealant is compatible with the conveyed media and brass (no degradation or galvanic issues). - Inspect and pressure-test: after assembly, perform a hydrostatic or pneumatic leak test at or above working pressure per applicable standards to confirm integrity. - Account for temperature and pressure cycling: select sealant and installation practice rated for the full operating range and any expected transients. If any of these conditions cannot be satisfied, consult the elbow manufacturer and the sealant supplier for specific approvals and recommendations.

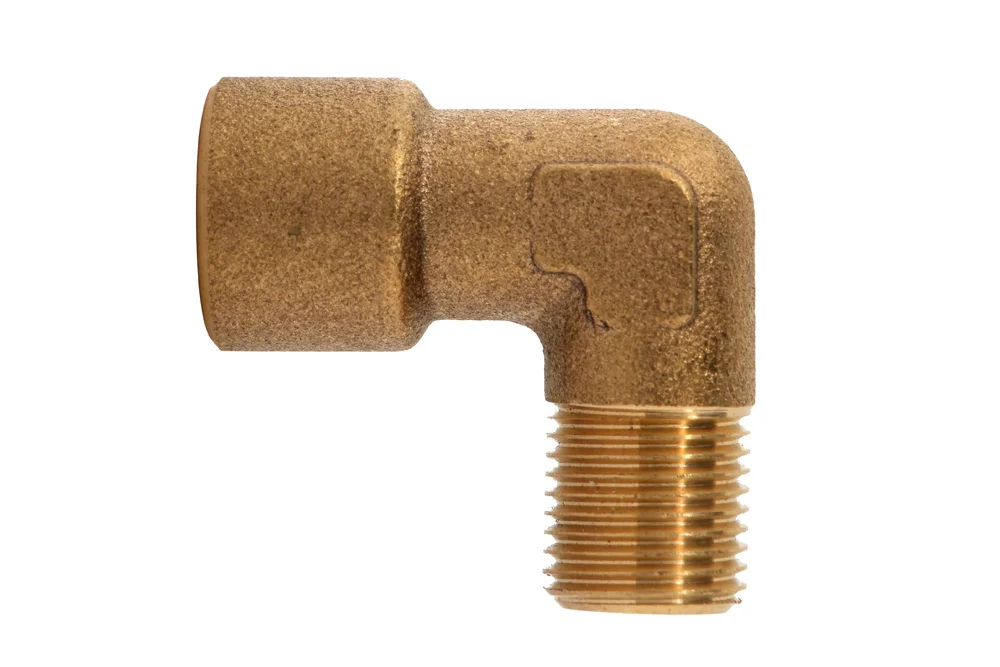

Elbow 90° with female thread BSP/BSP male, brass, type EW

Additional information

Material	B – brass (bronze)

Elbow 90° brass with a thread internal and with a thread external BSP. Material: brass. Working pressure: up to 63 bar. Operating temperature: from -10°C to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-MS-18542	Elbow 90° with female/male 1/8" BSP, brass	-	63	In stock	Enquiry
EW-MS-18543	Elbow 90° with female/male 1/4" BSP, brass	-	63	In stock	Enquiry
EW-MS-18545	Elbow 90° with female/male 3/8" BSP, brass	-	63	In stock	Enquiry
EW-MS-18547	Elbow 90° with female/male 1/2" BSP, brass	-	63	In stock	Enquiry
EW-MS-18548	Elbow 90° with female/male 3/4" BSP, brass	-	63	In stock	Enquiry
EW-MS-18549	Elbow 90° with female/male 1" BSP, brass	-	63	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Elbow 90° brass with a thread internal and with a thread external BSP. Material: brass. Working pressure: up to 63 bar. Operating temperature: from -10°C to +90°C.
