Is the Adaptor 90Â° IBC for pallet-boxes with GW/GZ, polypropylene compatible with all IBC container trapezoidal threads per DIN EN 12713?

Yes. The Adaptor 90Â° IBC for pallet-boxes with GW/GZ, polypropylene uses internal trapezoidal threads manufactured to the DIN EN 12713 standard and is designed to mate with external trapezoidal threads found on IBC containers. Trapezoidal threads standardly equipped in IBC couplings are 100% compatible with the threads in IBC containers from various manufacturers, so this adaptor will fit compliant IBC container threads. Additional relevant specs: material polypropylene, seal LDPE, working pressure up to 7 bar, operating temperature â10Â°C to +70Â°C (briefly up to +80Â°C).

Does the Adaptor 90Â° IBC for pallet-boxes with GW/GZ, polypropylene fit IBC containers from different manufacturers under DIN EN 12713?

Yes. The Adaptor 90Â° IBC for pallet-boxes with GW/GZ, polypropylene is manufactured to be compliant with DIN EN 12713 and uses an internal trapezoidal thread that mates to the external trapezoidal threads standardly found on IBC couplings. These trapezoidal threads are 100% compatible with threads on IBC containers from various manufacturers, so the adaptor will fit. Material: polypropylene; seal: LDPE; working pressure up to 7 bar; operating temperature -10Â°C to +70Â°C (temporarily up to +80Â°C).

Can Adaptor 90Â° IBC for pallet-boxes with GW/GZ, polypropylene withstand continuous use at 7 bar and +70Â°C?

Yes. the Adaptor 90Â° IBC for pallet-boxes with GW/GZ, polypropylene is rated for continuous use up to 7 bar and at operating temperatures up to +70Â°C. The product specifications list a working pressure "up to 7 bar" and an operating temperature range from -10Â°C to +70Â°C (with temporary use up to +80Â°C). Made of polypropylene with an LDPE seal and compliant with DIN EN 12713, the adaptor is designed for standard trapezoidal threads used on IBC couplings and containers. Notes/limitations: - "Up to 7 bar" and "+70Â°C" are the declared continuous limits; temporary excursions to +80Â°C are permitted per specification but should be short-term only. - Ensure compatibility with the specific media (chemicals, solvents) and check chemical compatibility of polypropylene and LDPE for your fluid and temperature to avoid degradation. - Confirm installation and maintenance follow manufacturer guidance and relevant safety standards for your application.

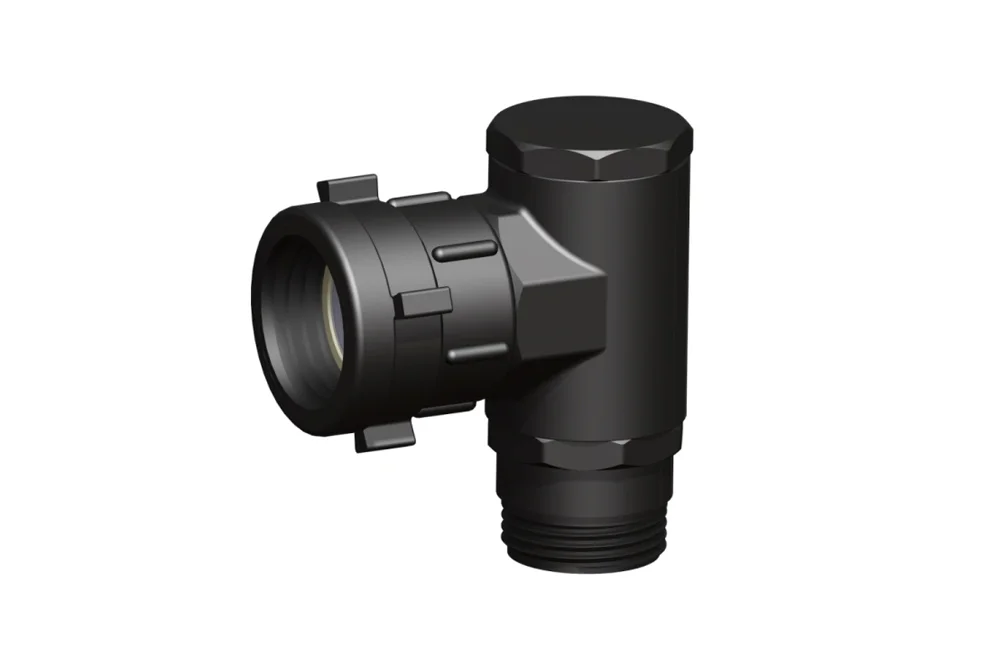

Adapter 90° IBC for IBC containers with female thread/male, polypropylene

Additional information

Material	P – material (plastic)

Adapter 90° IBC compliant of the standard DIN EN 12713 thread internal trapezoidal na thread external. The trapezoidal threads that the IBC couplings are fitted with as standard match 100% the threads in the IBC containers of various manufacturers. Material: polypropylene. gasket: low-density polyethylene (LDPE). Working pressure: up to 7 bar. Operating temperature: from -10°C to +70°C (momentarily up to +80°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AC-IBMF060-K90	Adapter/spout female S60x6 90° with male S60x6, PP	-	7	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter 90° IBC compliant of the standard DIN EN 12713 thread internal trapezoidal na thread external. The trapezoidal threads that the IBC couplings are fitted with as standard match 100% the threads in the IBC containers of various manufacturers. Material: polypropylene. gasket: low-density polyethylene (LDPE). Working pressure: up to 7 bar. Operating temperature: from -10°C to +70°C (momentarily up to +80°C).
