Is the 90Â° quick-connection socket, with GZ UNF cone 90Â°, HANSEN BEVERAGE available in interchangeable gas/liquid versions or how are they identified?

The 90Â° quick-connection socket, with GZ UNF cone 90Â°, HANSEN BEVERAGE is available in two distinct, non-interchangeable versions: gas (type 2HG) and liquid (type 2HL). They have different plug diameters to prevent mistaken connections. Identification is simple: gas couplings have a white identification ring on the socket and a notch in the hexagon on the plug; liquid couplings have a black identification ring on the socket and the plugâs hexagon has no notch. Working pressure: 15 bar. Operating temperature: up to +130Â°C.

Can the 90Â° quick-connection socket, with GZ UNF cone 90Â°, HANSEN BEVERAGE be used for both gas and liquid without checking the identification ring?

No. The 90Â° quick-connection socket, with GZ UNF cone 90Â°, HANSEN BEVERAGE exists in two non-interchangeable versions: 2HG for gases and 2HL for liquids (different plug diameters to prevent connection errors). Identification is simple: gas sockets have a white identification ring and the plug hexagon has a notch; liquid sockets have a black identification ring and the plug hexagon has no notch. Always check the identification ring before connecting. Working pressure: 15 bar; operating temperature up to +130Â°C.

How do I identify gas vs liquid versions of the 90Â° quick-connection socket, with GZ UNF cone 90Â°, HANSEN BEVERAGE?

To identify the 90Â° quick-connection socket, with GZ UNF cone 90Â°, HANSEN BEVERAGE versions: - Gas version (type 2HG): - Socket: identification ring is white. - Plug: hexagon has a notch. - Note: plug diameter differs from liquid version. not interchangeable. - Working pressure: 15 bar. Operating temperature: up to +130Â°C. - Liquid version (type 2HL): - Socket: identification ring is black. - Plug: hexagon does not have a notch. - Note: plug diameter differs from gas version. not interchangeable. - Working pressure: 15 bar. Operating temperature: up to +130Â°C.

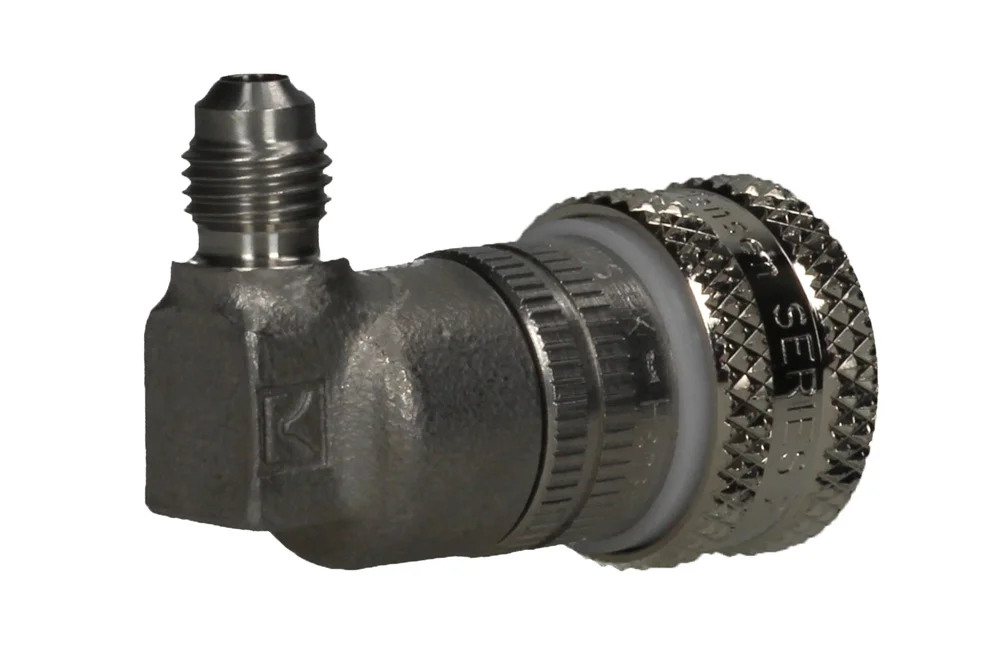

Socket quick coupling 90&deg, with male thread UNF 90° cone, HANSEN BEVERAGE

Additional information

Material	SS – stainless steel

Socket 90° quick coupling Hansen Beverage with a thread external UNF 7/16″-20 of a cone 90°. The couplings are available in two versions: for gases type 2HG and for liquids type 2HL. These versions are not interchangeable with each other (different plug diameter), which allows avoiding mistakes in connection. Recognizing the version is very easy. For gas couplings, the identification ring on the socket is white, and the hexagon on the plug has a notch. For liquid couplings, the identification ring on the socket is black, and the hexagon on the plug has no notch. pressure working: 15 bar. Operating temperature: up to +130°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
HB-2HGLLRA720	Socket 2HG 1/4" 90° with 7/16"-20 UNF male, 90° cone	-	15	In stock	0 zł		Enquiry
HB-2HLLLRA720	Socket 2HL 1/4" 90° with 7/16"-20 UNF male, 90° cone	-	15	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Socket 90° quick coupling Hansen Beverage with a thread external UNF 7/16″-20 of a cone 90°. The couplings are available in two versions: for gases type 2HG and for liquids type 2HL. These versions are not interchangeable with each other (different plug diameter), which allows avoiding mistakes in connection. Recognizing the version is very easy. For gas couplings, the identification ring on the socket is white, and the hexagon on the plug has a notch. For liquid couplings, the identification ring on the socket is black, and the hexagon on the plug has no notch. pressure working: 15 bar. Operating temperature: up to +130°C.
