Is the Adaptor - elbow 90Â° with GZ BSPT/GW BSP, carbon steel, type A114T suitable for use with hydraulic systems at 350 bar?

Based on the provided description, Adaptor - elbow 90Â° with GZ BSPT/GW BSP, carbon steel, type A114T is a high-pressure elbow adapter with an external BSPT thread (sealing on the thread) and an internal BSP thread with a swivel nut using a 60Â° cone seal, made of galvanized carbon steel. However, suitability for use at 350 bar cannot be confirmed from this information alone because the description does not specify a pressure rating, applicable standards (e.g., DIN, ISO), material heat treatment, or test/certification data. Key considerations: - Threaded BSPT (tapered) and 60Â° cone seals can be used in high-pressure hydraulic systems if the component is rated accordingly, but acceptable pressure depends on dimensions (thread size), wall thickness, and manufacturing/heat-treatment. - Carbon steel construction is common for hydraulic fittings, yet galvanization and specific grade (e.g., C45, 42CrMo) and mechanical properties determine pressure capacity. - Safety at 350 bar requires a documented working pressure rating â¥350 bar and ideally a safety factor per relevant standards; absence of that data is a disqualifier. - Compatibility with hydraulic fluids, temperature range, and torque/sealing procedures must also be verified. Conclusion: Without an explicit working pressure rating or applicable standard/certification provided for Adaptor - elbow 90Â° with GZ BSPT/GW BSP, carbon steel, type A114T, you should not assume it is suitable for 350 bar. Request manufacturer specifications, pressure rating, and test certificates to confirm suitability.

Can the Adaptor - elbow 90Â° with GZ BSPT/GW BSP, carbon steel, type A114T be used with non-hydraulic pneumatic systems?

Adaptor - elbow 90Â° with GZ BSPT/GW BSP, carbon steel, type A114T is designed for highâpressure hydraulic connections: external BSPT thread with thread sealing and internal BSP with a 60Â° cone swivel nut. Material is galvanized carbon steel-suitable for hydraulic fluids and pressures. Use in pneumatic (nonâhydraulic) systems is possible from a mechanical and sealing standpoint if pressure, temperature, and media compatibility are within the adaptorâs ratings and elastomer seals (if any) suit the gas used. However, BSPT thread seal relies on thread deformation/sealant and the swivel cone expects liquid-tight metalâtoâmetal seating; gas systems can leak more easily and may require additional thread sealant or tape rated for gases. Confirm the adaptorâs maximum working pressure, leakage class for gas use, and compatibility with your pneumatic medium before deployment.

Does the Adaptor - elbow 90Â° with GZ BSPT/GW BSP, carbon steel, type A114T support stainless steel-compatible sealing fluids?

Adaptor - elbow 90Â° with GZ BSPT/GW BSP, carbon steel, type A114T uses carbon steel (galvanized) body with two types of seals: thread seal on the external BSPT thread and a 60Â° cone swivel-nut seal on the internal BSP (60Â° cone). Stainless-steel-compatible sealing fluids typically refers to fluids that will not corrode stainless steel or degrade seals intended for stainless-steel systems. Compatibility considerations: - The adaptor body is carbon steel (galvanized), not stainless steel. Galvanized carbon steel can be attacked by certain fluids (chlorides, strong acids, some amines) that stainless steel resists. If your fluid is compatible with stainless steel but aggressive to galvanized carbon steel, the adaptor may corrode. - Sealing method: the BSPT thread relies on thread sealing (often PTFE tape or sealant) and the internal BSP uses a 60Â° cone metal-to-metal style seal. These seals are mechanical/metal mating surfaces; their chemical compatibility depends on any additional sealant/threads filler used and on corrosion resistance of the metal faces. The metal-to-metal cone will function with stainless-compatible fluids, but the carbon steel faces may corrode over time with aggressive fluids. - If your fluid is non-aggressive (hydraulic oils, mineral oils, many neutral fluids) and compatible with galvanized carbon steel, the adaptor is acceptable in stainless-steel systems from a sealing-function perspective (but galvanic compatibility between stainless steel piping and carbon steel adaptor should be checked). - If your system requires full stainless-steel wetted parts for corrosion resistance or purity (e.g., chloride-containing fluids, seawater, food/pharma, corrosive chemicals), the carbon steel A114T is not recommended even if the fluid is âstainless-compatible.â Conclusion: Adaptor - elbow 90Â° with GZ BSPT/GW BSP, carbon steel, type A114T can work with fluids that are chemically compatible with galvanized carbon steel and with metal cone/thread seals, but it is not suitable where fluids require stainless-steel wetted materials for corrosion resistance, purity, or long-term compatibility. Verify fluid chemistry and consider stainless-steel versions if needed.

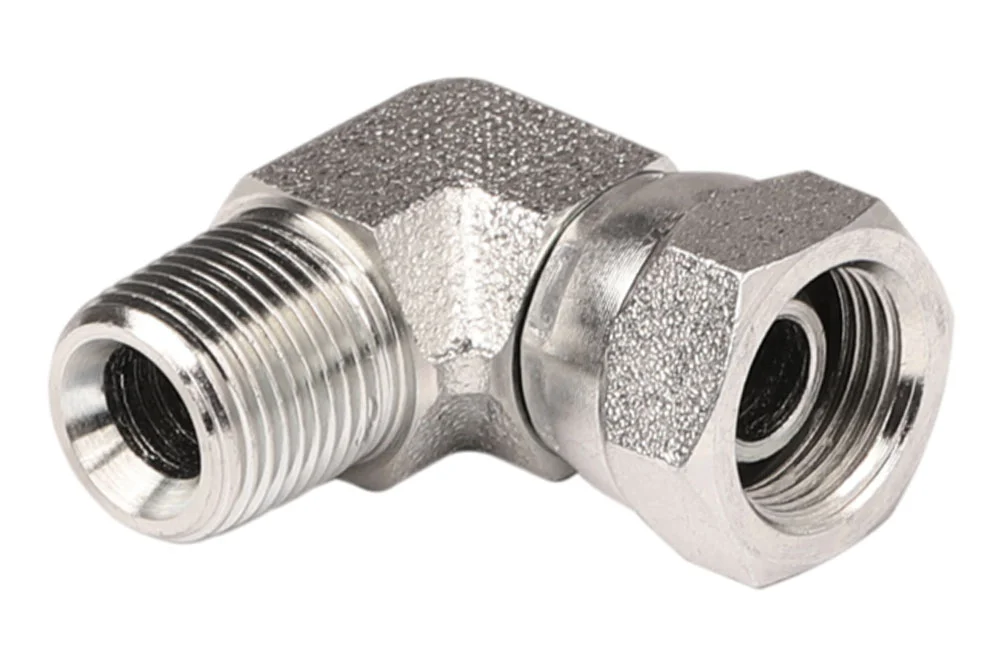

Adapter – elbow 90° with BSPT male/BSP female, carbon steel, type A114T

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Adapter elbow 90° high-pressure type A114T with BSPT male thread (thread sealing) and with BSP female thread, with a swivel nut (60° cone sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A114T-04	Adapter 90° 1/4" BSPT male / 1/4" BSP female	-	350	In stock	Enquiry
TI-A114T-06	Adapter 90° 3/8" BSPT male / 3/8" BSP female	-	250	In stock	Enquiry
TI-A114T-08	Adapter 90° 1/2" BSPT male / 1/2" BSP female	-	225	In stock	Enquiry
TI-A114T-12	Adapter 90° 3/4" BSPT male / 3/4" BSP female	-	200	In stock	Enquiry
TI-A114T-16	Adapter 90° 1" BSPT male / 1" BSP female	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter elbow 90° high-pressure type A114T with BSPT male thread (thread sealing) and with BSP female thread, with a swivel nut (60° cone sealing). Material: carbon steel, galvanized.
