Is the Adaptor with socket and plug for injection molds, DYROS series 6 compatible with standard 15 bar cooling and compressed air systems?

Yes. The Adaptor with socket and plug for injection molds, DYROS series 6 is compatible with standard 15 bar cooling and compressed air systems. It is specifically designed for cooling liquids in plastic processing and for compressed air installations (as well as gas cylinder applications and other technical fields). All components are brass with treated stainless steel rings, springs and balls, Viton sealing, and a working pressure rated to 15 bar, matching standard system requirements.

Can the Adaptor with socket and plug for injection molds, DYROS series 6 be used with gas cylinders and other industrial fluids at 15 bar?

Yes. The Adaptor with socket and plug for injection molds, DYROS series 6 is specified for use with cooling liquids, compressed air, gas cylinder applications and other technical fields, and has a working pressure of 15 bar. Its brass construction, stainless steel internal parts and Viton seals make it suitable for gas cylinders and many industrial fluids at that pressure. Ensure compatibility with the specific gas or fluid and operating temperature (Viton limits) and verify any industry-specific safety/regulatory requirements before use.

Can the Adaptor with socket and plug for injection molds, DYROS series 6 operate safely at 15 bar with Viton seals under high-temperature cooling fluids?

Yes. Adaptor with socket and plug for injection molds, DYROS series 6 can operate at 15 bar with Viton seals under high-temperature cooling fluids, with important caveats. Why: the product specification lists Viton (FKM) seals and a working pressure of 15 bar, and all wetted metal parts are brass with stainless steel supporting rings/springs/balls, so materials are compatible with typical high-temperature cooling fluids used in plastic processing and the rated pressure. Caveats and recommendations: - Verify fluid temperature: Viton is generally suitable up to about 200â220 Â°C for short excursions, but its long-term chemical and mechanical resistance depends on exact temperature and fluid composition. If your cooling fluid routinely approaches these upper limits or contains aggressive additives, seal life may be reduced. - Check fluid chemistry: Viton resists many hydrocarbons and heat-transfer fluids, but compatibility with specific glycol blends, chloride-containing fluids, or specialty additives should be confirmed. - Service life and safety margin: Operating continuously at the rated pressure and high temperature shortens seal life. Plan inspection/replacement intervals and consider a safety margin below maximum ratings for critical applications. - Installation and maintenance: Ensure correct installation, avoid mechanical damage, and monitor for leaks. For compressed gases or safety-critical systems, follow relevant standards and safety protocols. If you need a definitive yes/no for a specific temperature and fluid, provide the exact fluid composition and operating temperature so compatibility and expected seal life can be assessed.

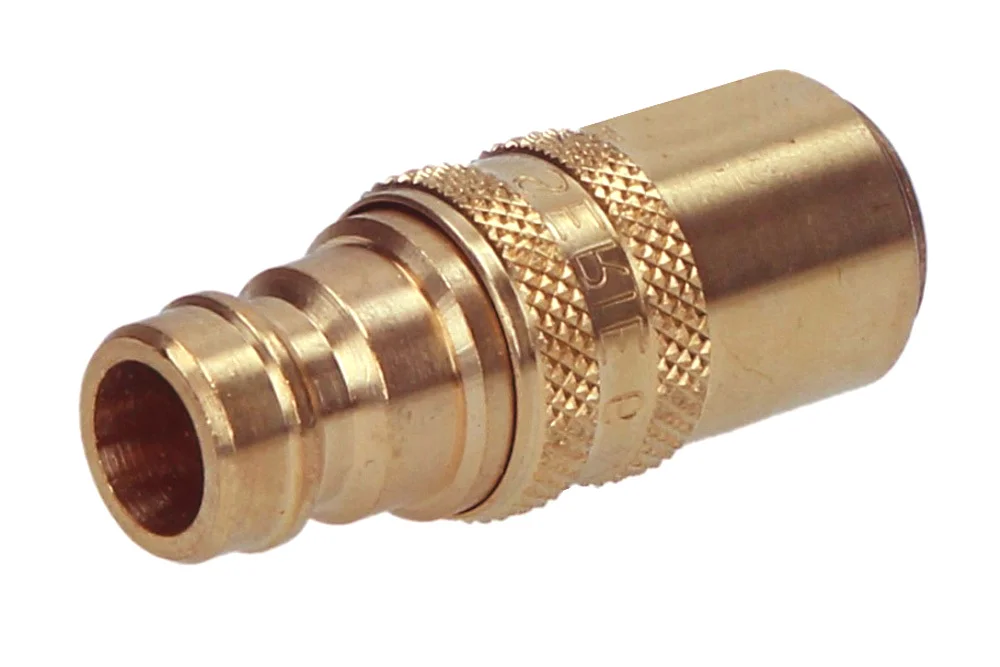

Adaptor with socket and plug for injection molds, DYROS series 6

Additional information

Material	B – brass (bronze)

DYROS adaptor with socket series 6 and plug for series 30, 40, or 90. Designed for cooling liquids in plastic processing, compressed air installations, gas cylinder applications, and other technical fields. Material: all components are made of brass, while the supporting rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DY-LK600-300	Socket adapter series 6 / plug series 30	-	15	In stock	Enquiry
DY-LK600-400	Socket adapter series 6 / plug series 40	-	15	In stock	Enquiry
DY-LK600-900	Socket adapter series 6 / plug series 90	-	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DYROS adaptor with socket series 6 and plug for series 30, 40, or 90. Designed for cooling liquids in plastic processing, compressed air installations, gas cylinder applications, and other technical fields. Material: all components are made of brass, while the supporting rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.
