Is the JIC 90Â° adjustable angle fitting with carbon steel BSPT socket, type WE-BT supplied ready-sealed, or should I apply Teflon tape or anaerobic sealant to the BSPT thread?

The JIC 90Â° adjustable angle fitting with carbon steel BSPT socket, type WE-BT is not supplied pre-sealed. According to the product description (âseal on the thread â with Teflon tape or anaerobic sealantâ), you should apply an appropriate thread sealant to the BSPT thread before installation . either PTFE (Teflon) tape or an anaerobic pipe thread sealant . to ensure a proper leak-tight joint. Use standard best practices: wrap PTFE tape 2â3 turns clockwise (looking at the male thread) without covering the first thread, or apply anaerobic sealant evenly; match sealant choice to fluid type, pressure and temperature for compatibility.

Does the JIC 90Â° adjustable angle fitting with carbon steel BSPT socket, type WE-BT require Teflon tape or anaerobic sealant on the BSPT thread?

Yes. The JIC 90Â° adjustable angle fitting with carbon steel BSPT socket, type WE-BT requires a thread sealant on the BSPT thread. Because the BSPT connection seals on the threads rather than a metal-to-metal face, use Teflon tape or an anaerobic thread sealant as specified in the description of the Adjustable 90Â° elbow fitting JIC 37Â° with external BSPT thread. Apply sealant per manufacturer instructions to ensure leak-free assembly.

Should I use Teflon tape or anaerobic sealant on the BSPT thread of the JIC 90Â° adjustable angle fitting with carbon steel BSPT socket, type WE-BT?

Use either Teflon tape or an anaerobic sealant on the BSPT thread of the JIC 90Â° adjustable angle fitting with carbon steel BSPT socket, type WE-BT. The fittingâs BSPT thread is a tapered pipe thread that seals on the thread itself, so a suitable thread sealant is required to ensure leak-free performance. Guidance for choosing and applying: - Teflon tape (PTFE): Good for general-purpose hydraulic and pneumatic service. Use 3â4 wraps in the direction of thread engagement. Keep tape clear of the first thread to avoid contaminating the system. Works well for moderate pressures and temperatures; compatible with most fluids but check compatibility for special fluids. - Anaerobic sealant: Provides a strong, permanent seal, excellent for high-pressure applications and where vibration or joint movement is expected. Choose a sealant rated for metals and hydraulic fluid compatibility. Apply a thin, even coat to the male threads, avoid overapplication to prevent excess curing inside the system. - Consider operating pressure, temperature, fluid compatibility and serviceability. Anaerobic adhesives often give a more robust, permanent joint; PTFE tape allows easier disassembly and is simpler to apply. - For critical or high-pressure hydraulic systems, prefer a hydraulic-compatible anaerobic sealant designed for pipe threads. Always follow the manufacturerâs instructions for cure time and application, and inspect joints after assembly and pressure testing. In summary: both methods are acceptable for the JIC 90Â° adjustable angle fitting with carbon steel BSPT socket, type WE-BT. Choose Teflon tape for ease of use and disassembly; choose an appropriate anaerobic sealant for higher reliability under pressure and vibration.

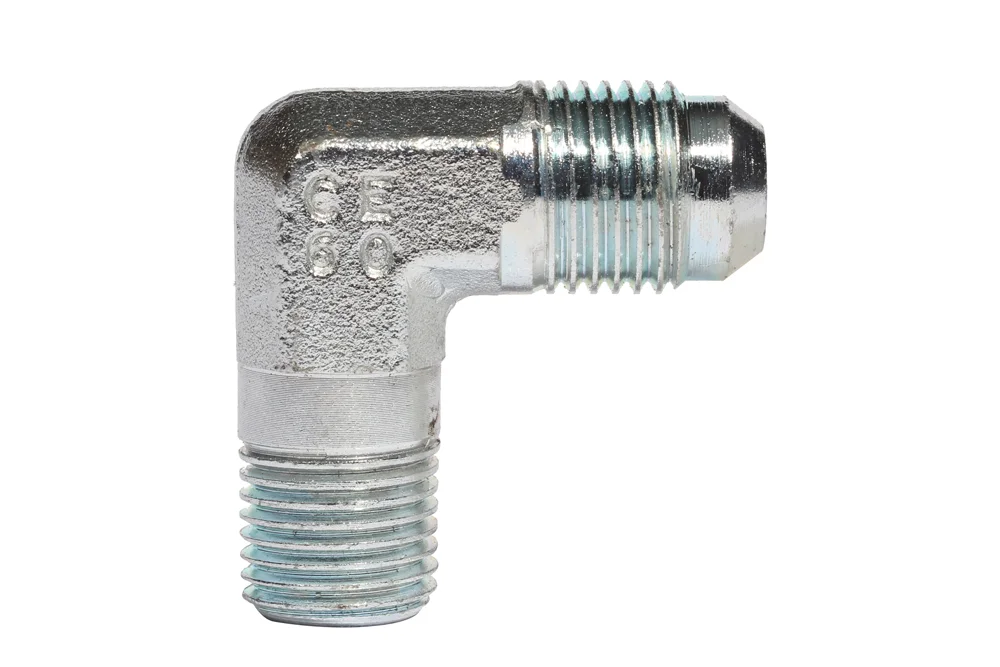

JIC 90° adjustable angle fitting with carbon steel BSPT socket, type WE-BT

Additional information

Material	CS – steel (cast iron)

Adjustable 90° elbow fitting JIC 37° with external BSPT thread (seal on the thread – with Teflon tape or anaerobic sealant). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-WE-07-BT-02	90° GZ JIC 7/16"-20 / GZ BSPT 1/8" fitting	-	350	In stock	Enquiry
HJ-WE-07-BT-04	90° GZ JIC 7/16"-20 / GZ BSPT 1/4" fitting	-	350	In stock	Enquiry
HJ-WE-08-BT-02	90° GZ JIC 1/2"-20 / GZ BSPT 1/8" fitting	-	350	In stock	Enquiry
HJ-WE-08-BT-04	90° GZ JIC 1/2"-20 / GZ BSPT 1/4" fitting	-	350	In stock	Enquiry
HJ-WE-09-BT-02	90° Female JIC 9/16"-18 / Female BSPT 1/8" fitting	-	350	In stock	Enquiry
HJ-WE-09-BT-04	90° GZ JIC 9/16"-18 / GZ BSPT 1/4" fitting	-	350	In stock	Enquiry
HJ-WE-09-BT-06	90° GZ JIC 9/16"-18 / GZ BSPT 3/8" fitting	-	350	In stock	Enquiry
HJ-WE-09-BT-08	90° GZ JIC 9/16"-18 / GZ BSPT 1/2" fitting	-	350	In stock	Enquiry
HJ-WE-12-BT-04	90° GZ JIC 3/4"-16 / GZ BSPT 1/4" fitting	-	350	In stock	Enquiry
HJ-WE-12-BT-06	90° GZ JIC 3/4"-16 / GZ BSPT 3/8" fitting	-	350	In stock	Enquiry
HJ-WE-12-BT-08	90° GZ JIC 3/4"-16 / GZ BSPT 1/2" fitting	-	350	In stock	Enquiry
HJ-WE-12-BT-12	90° GZ JIC 3/4"-16 / GZ BSPT 3/4" fitting	-	350	In stock	Enquiry
HJ-WE-14-BT-06	90° GZ JIC 7/8"-14 / GZ BSPT 3/8" fitting	-	350	In stock	Enquiry
HJ-WE-14-BT-08	90° GZ JIC 7/8"-14 / GZ BSPT 1/2" fitting	-	350	In stock	Enquiry
HJ-WE-14-BT-12	90° GZ JIC 7/8"-14 / GZ BSPT 3/4" fitting	-	350	In stock	Enquiry
HJ-WE-17-BT-08	90° GZ JIC 1.1/16"-12 / GZ BSPT 1/2" fitting	-	350	In stock	Enquiry
HJ-WE-17-BT-12	90° GZ JIC 1.1/16"-12 / GZ BSPT 3/4" fitting	-	350	In stock	Enquiry
HJ-WE-17-BT-16	90° GZ JIC 1.1/16"-12 / GZ BSPT 1"	-	290	In stock	Enquiry
HJ-WE-21-BT-12	90° GZ JIC 1.5/16"-12 / GZ BSPT 3/4" fitting	-	290	In stock	Enquiry
HJ-WE-21-BT-16	90° GZ JIC 1.5/16"-12 / GZ BSPT 1"	-	290	In stock	Enquiry
HJ-WE-26-BT-16	90° GZ JIC 1.5/8"-12 / GZ BSPT 1"	-	240	In stock	Enquiry
HJ-WE-26-BT-20	90° GZ JIC 1.5/8"-12 / GZ BSPT 1.1/4" fitting	-	240	In stock	Enquiry
HJ-WE-30-BT-24	90° GZ JIC 1.7/8"-12 / GZ BSPT 1.1/2" fitting	-	240	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adjustable 90° elbow fitting JIC 37° with external BSPT thread (seal on the thread – with Teflon tape or anaerobic sealant). Material: carbon steel, galvanized.
