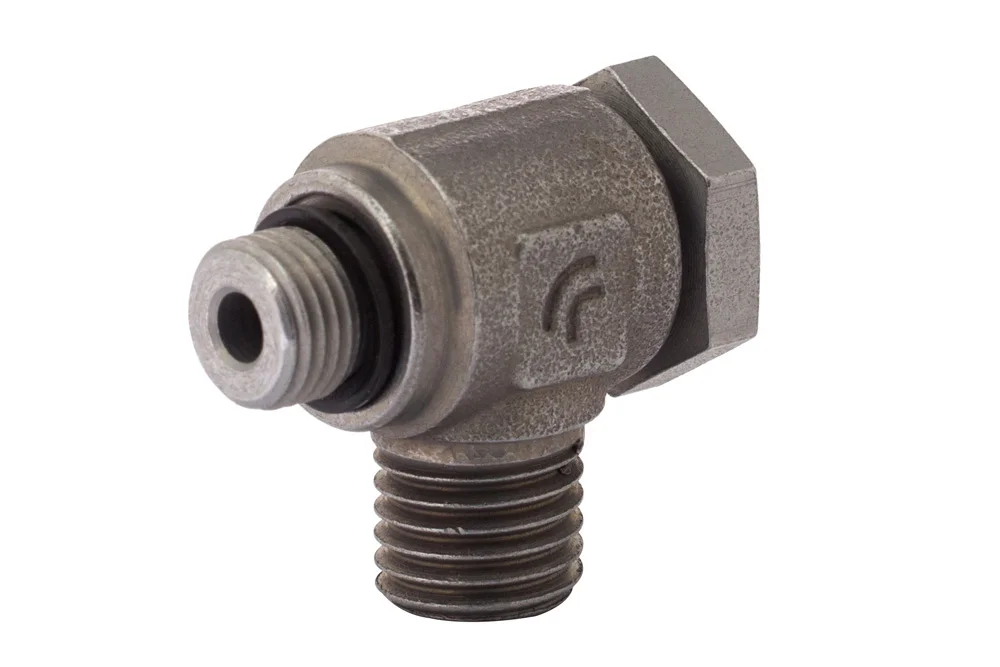

Fitting screw-in angled adjustable BANJO WH-ME, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)

Fitting DIN 2353 screw-in angled adjustable BANJO, type WH-ME: 24° DIN 2353 socket with metric male thread and with metric male thread (DIN 3852 type E sealing – elastomer gasket with a rectangular cross-section). Safety factor 4:1. Available as: LL (extra-light series), L (series light), S (series heavy). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which offers very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WH-06L-ME-10-CN	Fitting DIN 2353 WH 6L M10x1, Zn-Ni	-	315	In stock	Enquiry
HD-WH-06LL-ME-10-CN	Fitting DIN 2353 WH 6LL M10x1, Zn-Ni	-	100	In stock	Enquiry
HD-WH-06S-ME-12-CN	Fitting DIN 2353 WH 6S M12x1.5, Zn-Ni	-	630	In stock	Enquiry
HD-WH-08L-ME-12-CN	Fitting DIN 2353 WH 8L M12x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WH-08LL-ME-10-CN	Fitting DIN 2353 WH 8LL M10x1, Zn-Ni	-	100	In stock	Enquiry
HD-WH-08S-ME-14-CN	Fitting DIN 2353 WH 8S M14x1.5, Zn-Ni	-	630	In stock	Enquiry
HD-WH-10L-ME-14-CN	Fitting DIN 2353 WH 10L M14x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WH-10S-ME-16-CN	Fitting DIN 2353 WH 10S M16x1.5, Zn-Ni	-	630	In stock	Enquiry
HD-WH-12L-ME-16-CN	Fitting DIN 2353 WH 12L M16x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WH-12L-ME-18-CN	Fitting DIN 2353 WH 12L M18x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WH-12S-ME-18-CN	Fitting DIN 2353 WH 12S M18x1.5, Zn-Ni	-	630	In stock	Enquiry
HD-WH-14S-ME-20-CN	Fitting DIN 2353 WH 14S M20x1.5, Zn-Ni	-	630	In stock	Enquiry
HD-WH-15L-ME-18-CN	Fitting DIN 2353 WH 15L M18x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WH-16S-ME-22-CN	Fitting DIN 2353 WH 16S M22x1.5, Zn-Ni	-	400	In stock	Enquiry
HD-WH-18L-ME-22-CN	Fitting DIN 2353 WH 18L M22x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WH-20S-ME-27-CN	Fitting DIN 2353 WH 20S M27x2, Zn-Ni	-	400	In stock	Enquiry
HD-WH-22L-ME-26-CN	Fitting DIN 2353 WH 22L M26x1.5, Zn-Ni	-	160	In stock	Enquiry
HD-WH-25S-ME-33-CN	Fitting DIN 2353 WH 25S M33x2, Zn-Ni	-	400	In stock	Enquiry
HD-WH-28L-ME-33-CN	Fitting DIN 2353 WH 28L M33x2, Zn-Ni	-	160	In stock	Enquiry
HD-WH-30S-ME-42-CN	Fitting DIN 2353 WH 30S M42x2, Zn-Ni	-	400	In stock	Enquiry
HD-WH-35L-ME-42-CN	Fitting DIN 2353 WH 35L M42x2, Zn-Ni	-	160	In stock	Enquiry
HD-WH-38S-ME-48-CN	Fitting DIN 2353 WH 38S M48x2, Zn-Ni	-	315	In stock	Enquiry
HD-WH-42L-ME-48-CN	Fitting DIN 2353 WH 42L M48x2, Zn-Ni	-	160	In stock	Enquiry
