Is the WE-BGE adjustable angle screw connection, carbon steel, zinc-nickel, compatible with standard DIN 2353 24Â° fittings and BSP external threads?

Yes. The WE-BGE adjustable angle screw connection, carbon steel, zinc-nickel is compatible with standard DIN 2353 24Â° fittings and with BSP external threads. It is a DIN 2353 screw-in angular adjustable fitting featuring a 24Â° DIN 2353 socket and both external metric and external BSP threads, with sealing per DIN 3852 type E (elastomer gasket, rectangular cross-section). It meets a safety factor of 4:1 and is available in L (light) and S (heavy) series. The carbon steel body is zinc-nickel coated (6â10 Âµm) for high corrosion resistance (up to 720 hours in salt spray).

Can the WE-BGE adjustable angle screw connection, carbon steel, zinc-nickel, withstand media temperatures up to 120Â°C without gasket degradation?

Based on the provided DIN 2353 description for the WE-BGE adjustable angle screw connection, carbon steel, zinc-nickel, the fitting uses an elastomer gasket (rectangular cross-section, DIN 3852 type E). Elastomer gaskets typically have temperature limits that depend on the rubber compound (e.g., NBR ~-30 to +100Â°C, FKM/Viton ~-20 to +200Â°C). The specification given does not state the gasket material. Therefore you cannot confirm safe exposure to 120Â°C without knowing the exact elastomer type. If the gasket is a high-temperature elastomer such as FKM/Viton or another compound rated â¥120Â°C, the fitting can withstand 120Â°C; if itâs NBR or a lower-rated material, degradation is likely. Recommendation: verify the gasket compound and its temperature rating with the manufacturer or supplier before using at 120Â°C.

Does the WE-BGE adjustable angle screw connection, carbon steel, zinc-nickel, meet a 4:1 safety factor for pressure ratings?

Yes. The WE-BGE adjustable angle screw connection, carbon steel, zinc-nickel, is specified with a safety factor of 4:1 according to the provided DIN 2353 description. The fitting is available in light (L) and heavy (S) series, includes a 24Â° DIN 2353 socket with external metric and BSP threads (sealing DIN 3852 type E with an elastomer rectangular gasket), and the material/coating details (carbon steel with 6â10 Âµm zincânickel) are consistent with the stated 4:1 safety factor for pressure ratings.

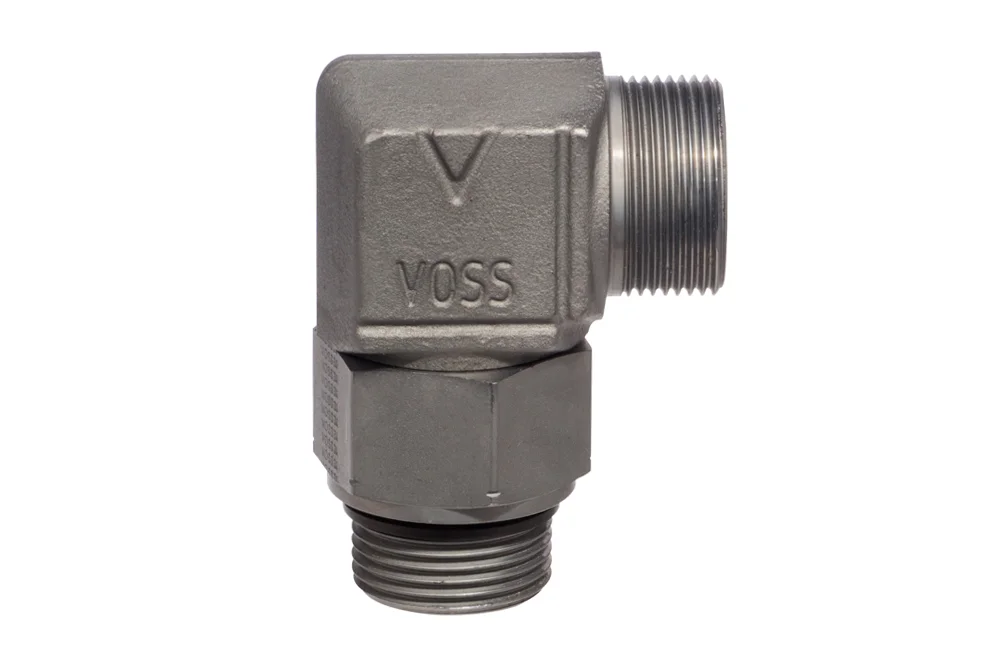

WE-BGE adjustable angle screw connection, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 50

DIN 2353 screw-in angular adjustable fitting, type WE-BGE: 24° DIN 2353 socket with external metric thread and external BSP thread (sealing DIN 3852 type E – elastomer gasket with a rectangular cross-section). Safety factor 4:1. Available as: L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WE-06L-BGE-02-CN	DIN 2353 fitting WE 6L 1/8" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-06L-BGE-04-CN	DIN 2353 fitting WE 6L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-06S-BGE-04-CN	DIN 2353 fitting WE 6S 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-08L-BGE-04-CN	DIN 2353 fitting WE 8L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-08S-BGE-04-CN	DIN 2353 fitting WE 8S 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-10L-BGE-04-CN	DIN 2353 fitting WE 10L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-10S-BGE-06-CN	DIN 2353 fitting WE 10S 3/8" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-12L-BGE-04-CN	DIN 2353 fitting WE 12L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-12L-BGE-06-CN	DIN 2353 fitting WE 12L 3/8" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-12L-BGE-08-CN	DIN 2353 fitting WE 12L 1/2" BSP, Zn-Ni	-	250	In stock	Enquiry
HD-WE-12S-BGE-06-CN	DIN 2353 fitting WE 12S 3/8" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-14S-BGE-08-CN	DIN 2353 fitting WE 14S 1/2" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-15L-BGE-08-CN	DIN 2353 fitting WE 15L 1/2" BSP, Zn-Ni	-	250	In stock	Enquiry
HD-WE-16S-BGE-08-CN	DIN 2353 fitting WE 16S 1/2" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WE-16S-BGE-12-CN	DIN 2353 fitting WE 16S 3/4" BSP, Zn-Ni	-	250	In stock	Enquiry
HD-WE-18L-BGE-08-CN	DIN 2353 fitting WE 18L 1/2" BSP, Zn-Ni	-	250	In stock	Enquiry
HD-WE-20S-BGE-12-CN	DIN 2353 fitting WE 20S 3/4" BSP, Zn-Ni	-	250	In stock	Enquiry
HD-WE-22L-BGE-12-CN	DIN 2353 fitting WE 22L 3/4" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WE-25S-BGE-12-CN	DIN 2353 fitting WE 25S 3/4" BSP, Zn-Ni	-	250	In stock	Enquiry
HD-WE-25S-BGE-16-CN	DIN 2353 fitting WE 25S 1" BSP, Zn-Ni	-	250	In stock	Enquiry
HD-WE-28L-BGE-12-CN	DIN 2353 fitting WE 28L 3/4" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WE-28L-BGE-16-CN	DIN 2353 fitting WE 28L 1" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WE-30S-BGE-20-CN	DIN 2353 fitting WE 30S 1.1/4" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WE-35L-BGE-20-CN	DIN 2353 fitting WE 35L 1.1/4" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WE-38S-BGE-24-CN	DIN 2353 fitting WE 38S 1.1/2" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WE-42L-BGE-24-CN	DIN 2353 fitting WE 42L 1.1/2" BSP, Zn-Ni	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 screw-in angular adjustable fitting, type WE-BGE: 24° DIN 2353 socket with external metric thread and external BSP thread (sealing DIN 3852 type E – elastomer gasket with a rectangular cross-section). Safety factor 4:1. Available as: L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
