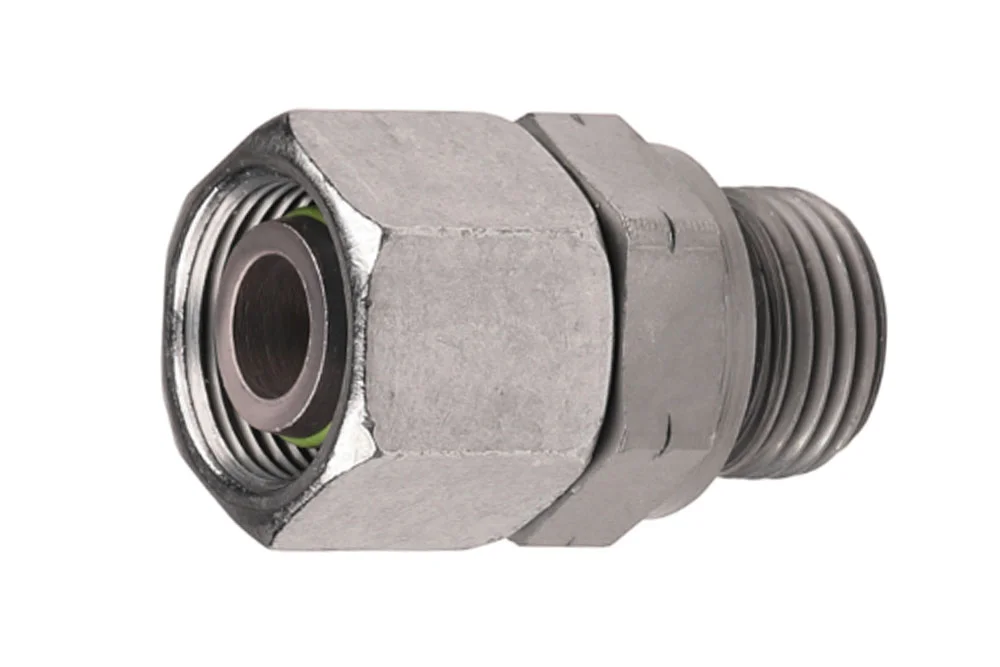

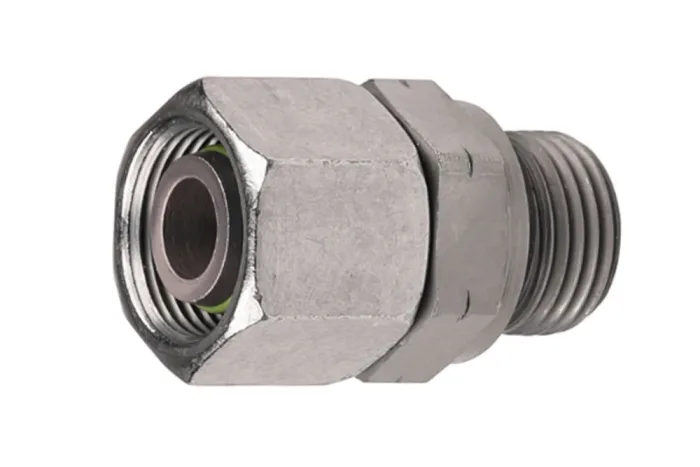

Fitting DIN 2353 screw-in adjustable, type EVGEO-BE: 24° DIN 2353 socket with an O-ring with metric female thread and with BSP male thread (DIN 3852 type E sealing – elastomer gasket with a rectangular cross-section). Safety factor 4:1. Available as: L (series light), S (series heavy). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which offers very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
Fitting DIN 2353 screw-in adjustable, type EVGEO-BE: 24° DIN 2353 socket with an O-ring with metric female thread and with BSP male thread (DIN 3852 type E sealing – elastomer gasket with a rectangular cross-section). Safety factor 4:1. Available as: L (series light), S (series heavy). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which offers very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
Additional information
Material
CS – steel (cast iron)
