Is the JIC adjustable screw connection with carbon steel BSP socket, type TE-BG compatible with hydraulic systems using 37Â° JIC fittings and sealed O-ring connections?

Yes . the JIC adjustable screw connection with carbon steel BSP socket, type TE-BG is compatible with hydraulic systems that use 37Â° JIC fittings and sealed O-ring connections. The product description states it is an adjustable screw fitting "T" JIC 37Â° with external BSP thread, sealed with an O-ring and retaining ring, made of carbon steel (galvanized). That means: - The sealing face conforms to the 37Â° JIC standard, so it will mate correctly with other 37Â° JIC components. - The integrated O-ring and retaining ring provide the intended sealed O-ring connection method. - The external BSP thread allows attachment where BSP threads are required, but the pressure sealing at the flange is via the 37Â° JIC/O-ring interface. Ensure thread type and sizes match your system (BSP vs NPT or metric), torque and assembly follow manufacturer specs, and materials are suitable for your fluid, pressure and environment.

Can the JIC adjustable screw connection with carbon steel BSP socket, type TE-BG be used in high-pressure hydraulic systems with O-ring and retaining ring sealing?

Yes - the JIC adjustable screw connection with carbon steel BSP socket, type TE-BG, can be used in high-pressure hydraulic systems when it features the described sealing (O-ring plus retaining ring) and is manufactured from carbon steel with galvanized finish. The JIC 37Â° seating provides reliable metal-to-metal backup sealing while the O-ring and retaining ring deliver elastomeric sealing and axial retention, suitable for dynamic/high-pressure applications if: - The O-ring material is compatible with the hydraulic fluid and temperature range, - The componentâs pressure rating matches or exceeds system working pressure (including safety factor), - Proper installation torques and mating thread/port specifications (BSP) are observed, - Regular inspection and maintenance are planned. If any of these conditions arenât met, consult the manufacturerâs pressure ratings and material data or perform application-specific testing before use.

Does the JIC adjustable screw connection with carbon steel BSP socket, type TE-BG require specific O-ring materials for chemical compatibility?

Yes. The JIC adjustable screw connection with carbon steel BSP socket, type TE-BG uses an O-ring as the static seal at the BSP interface, so O-ring material selection for chemical compatibility is required. Carbon steel body with galvanic plating does not protect the seal from media; the O-ring must be compatible with the fluid, temperature and pressure conditions of the application and with any cleaning agents or environmental exposures. Common choices: - NBR (nitrile): good for mineral oils and many hydraulic fluids, moderate temperature (-40 to +100 Â°C). Not suitable for many fuels, ketones, or strong oxidizers. - FKM / Viton: broad chemical resistance, good for oils, fuels and many chemicals, higher temperature capability (~-20 to +200 Â°C). Less swell in fuels and many solvents. - EPDM: good for brake fluids, hot water/steam, glycol-based fluids, and many polar media; poor resistance to mineral oils and hydrocarbons. - HNBR: better high-temperature and mechanical properties than NBR, good for many hydraulic oils. - PTFE: excellent chemical resistance and wide temperature range; use where elastomers fail, but requires careful gland design and may not seal as elastically as elastomers. - Fluorosilicone, Kalrez, Chemraz: specialty materials for aggressive or specific chemical environments. Recommendation: Identify the exact fluid(s), temperature range and pressure; then choose an O-ring compound rated for those conditions and compatible with carbon steel and the galvanic finish. If in doubt, consult the O-ring manufacturerâs chemical compatibility charts or request a compatibility confirmation from the supplier.

JIC adjustable screw connection with carbon steel BSP socket, type TE-BG

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

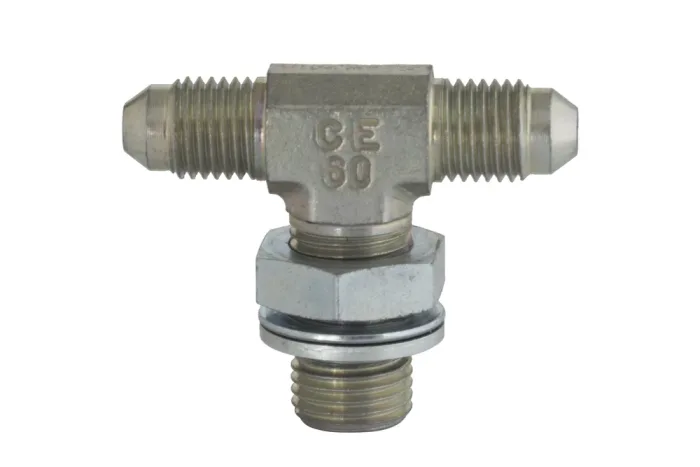

Adjustable screw fitting “T” JIC 37° with external BSP thread (sealed with an O-ring and retaining ring). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-TE-07-BG-02	Adapter tee fitting GZ JIC 7/16"-20 / GZ BSP 1/8"	-	350	In stock	Enquiry
HJ-TE-07-BG-04	Connector tee adjustable GZ JIC 7/16"-20 / GZ BSP 1/4"	-	315	In stock	Enquiry
HJ-TE-07-BG-06	Connector tee adjustable GZ JIC 7/16"-20 / GZ BSP 3/8"	-	250	In stock	Enquiry
HJ-TE-07-BG-08	Connector tee adjustable GZ JIC 7/16"-20 / GZ BSP 1/2"	-	250	In stock	Enquiry
HJ-TE-08-BG-02	Adapter tee fitting GZ JIC 1/2"-20 / GZ BSP 1/8"	-	350	In stock	Enquiry
HJ-TE-08-BG-04	Adapter tee fitting GZ JIC 1/2"-20 / GZ BSP 1/4"	-	315	In stock	Enquiry
HJ-TE-08-BG-06	Adapter tee fitting GZ JIC 1/2"-20 / GZ BSP 3/8"	-	250	In stock	Enquiry
HJ-TE-09-BG-04	Adapter tee fitting GZ JIC 9/16"-18 / GZ BSP 1/4"	-	315	In stock	Enquiry
HJ-TE-09-BG-06	Adapter tee fitting GZ JIC 9/16"-18 / GZ BSP 3/8"	-	250	In stock	Enquiry
HJ-TE-09-BG-08	Connector tee adjustable GZ JIC 9/16"-18 / GZ BSP 1/2"	-	250	In stock	Enquiry
HJ-TE-12-BG-04	Adapter tee fitting GZ JIC 3/4"-16 / GZ BSP 1/4"	-	315	In stock	Enquiry
HJ-TE-12-BG-06	Adapter tee fitting GZ JIC 3/4"-16 / GZ BSP 3/8"	-	250	In stock	Enquiry
HJ-TE-12-BG-08	Adapter tee fitting GZ JIC 3/4"-16 / GZ BSP 1/2"	-	250	In stock	Enquiry
HJ-TE-12-BG-12	Adapter tee fitting GZ JIC 3/4"-16 / GZ BSP 3/4"	-	250	In stock	Enquiry
HJ-TE-14-BG-06	Adapter tee fitting GZ JIC 7/8"-14 / GZ BSP 3/8"	-	250	In stock	Enquiry
HJ-TE-14-BG-08	Branch connector, adjustable tee GZ JIC 7/8"-14 / GZ BSP 1/2"	-	250	In stock	Enquiry
HJ-TE-14-BG-12	Adapter tee fitting GZ JIC 7/8"-14 / GZ BSP 3/4"	-	250	In stock	Enquiry
HJ-TE-17-BG-08	Connector tee adjustable GZ JIC 1.1/16"-12 / GZ BSP 1/2"	-	250	In stock	Enquiry
HJ-TE-17-BG-12	Connector tee adjustable GZ JIC 1.1/16"-12 / GZ BSP 3/4"	-	250	In stock	Enquiry
HJ-TE-17-BG-16	Connector tee adjustable GZ JIC 1.1/16"-12 / GZ BSP 1"	-	200	In stock	Enquiry
HJ-TE-21-BG-12	Connector tee adjustable GZ JIC 1.5/16"-12 / GZ BSP 3/4"	-	250	In stock	Enquiry
HJ-TE-21-BG-16	Connector tee adjustable GZ JIC 1.5/16"-12 / GZ BSP 1"	-	200	In stock	Enquiry
HJ-TE-21-BG-20	Connector tee adjustable GZ JIC 1.5/16"-12 / GZ BSP 1.1/4"	-	200	In stock	Enquiry
HJ-TE-26-BG-16	Connector tee adjustable GZ JIC 1.5/8"-12 / GZ BSP 1"	-	200	In stock	Enquiry
HJ-TE-26-BG-20	Connector tee adjustable GZ JIC 1.5/8"-12 / GZ BSP 1.1/4"	-	200	In stock	Enquiry
HJ-TE-30-BG-20	Adapter tee fitting GZ JIC 1.7/8"-12 / GZ BSP 1.1/4"	-	200	In stock	Enquiry
HJ-TE-30-BG-24	Connector tee adjustable GZ JIC 1.7/8"-12 / GZ BSP 1.1/2"	-	160	In stock	Enquiry
