Is the Straight connector adjustable SNV, carbon steel, zinc-nickel compatible with both L (light) and S (heavy) series systems?

Yes. The Straight connector adjustable SNV, carbon steel, zinc-nickel is available in both L (light) and S (heavy) series and features 24Â° DIN 2353 sockets on both sides with Oârings and internal metric threads, so it is compatible with components of either series. The carbon steel body with a 6â10 Âµm zincânickel coating provides high corrosion resistance (up to 720 hours in salt spray), but ensure matching thread sizes and series specifications when assembling to maintain correct sealing and mechanical fit.

Can the Straight connector adjustable SNV, carbon steel, zinc-nickel be used with hydraulic systems requiring 24Â° DIN 2353 o-ring connections?

Yes. The Straight connector adjustable SNV, carbon steel, zinc-nickel is designed with 24Â° DIN 2353 sockets on both sides with O-rings and internal metric threads, so it is compatible with hydraulic systems that require 24Â° DIN 2353 O-ring connections. Ensure you select the correct series (L light or S heavy) and verify pressure ratings and thread sizes match your system specifications before installation.

Does the Straight connector adjustable SNV, carbon steel, zinc-nickel require specific torque settings for installation?

Yes. The Straight connector adjustable SNV, carbon steel, zinc-nickel requires specific torque settings for correct installation. Because it is a DIN 2353 straight adjustable fitting (24Â° socket with Oâring and internal metric thread) the connection must be tightened to the proper torque to ensure a reliable, leakâfree seal and to avoid damaging the Oâring, the 24Â° cone seating, or the internal threads. Recommended practice: - Use the torque values specified by the manufacturer or by DIN 2353 for the particular size and series (L = light series, S = heavy series). Torque depends on thread size (e.g. M14x1.5, M16x1.5, etc.) and series. - If manufacturer data are unavailable, consult DIN 2353 tables for tightening torques for adjustable fittings with 24Â° cones and Oârings; these tables provide specific Nm values by thread size and material. - Always use a calibrated torque wrench and tighten in the sequence and increments recommended (handâtight first, then to specified torque). - After initial assembly, recheck torque after system pressurization and following a short runâin period to compensate for seating and any relaxation. Do not overtighten: excess torque can deform the 24Â° seating, damage the Oâring, strip threads, and compromise the zincânickel coating. If unsure, contact the fitting supplier or refer to official DIN 2353 documentation for exact torque figures for the Straight connector adjustable SNV, carbon steel, zinc-nickel.

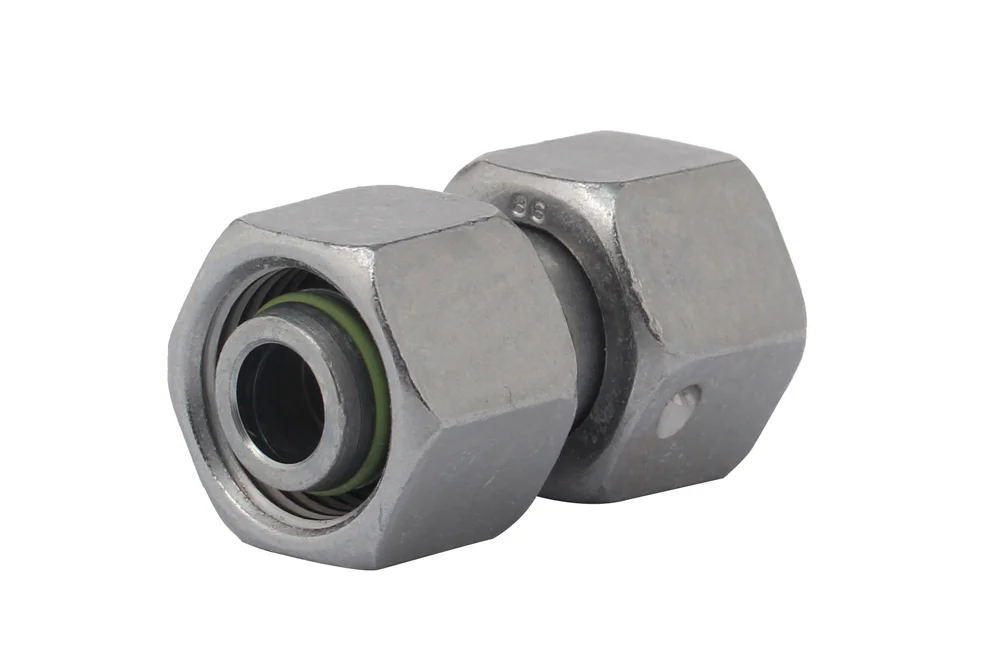

Straight connector adjustable SNV, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)

DIN 2353 straight adjustable fitting, type SNV: socket 24° DIN 2353 on both sides with an o-ring and internal metric thread. Available as: L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-SNV-06L-CN	DIN 2353 fitting SNV 6L, Zn-Ni	-	315	In stock	Enquiry
HD-SNV-06S-CN	DIN 2353 fitting SNV 6S, Zn-Ni	-	630	In stock	Enquiry
HD-SNV-08L-CN	DIN 2353 fitting SNV 8L, Zn-Ni	-	315	In stock	Enquiry
HD-SNV-08S-CN	DIN 2353 fitting SNV 8S, Zn-Ni	-	630	In stock	Enquiry
HD-SNV-10L-CN	DIN 2353 fitting SNV 10L, Zn-Ni	-	315	In stock	Enquiry
HD-SNV-10S-CN	DIN 2353 fitting SNV 10S, Zn-Ni	-	630	In stock	Enquiry
HD-SNV-12L-CN	DIN 2353 fitting SNV 12L, Zn-Ni	-	315	In stock	Enquiry
HD-SNV-12S-CN	DIN 2353 fitting SNV 12S, Zn-Ni	-	630	In stock	Enquiry
HD-SNV-14S-CN	DIN 2353 fitting SNV 14S, Zn-Ni	-	630	In stock	Enquiry
HD-SNV-15L-CN	DIN 2353 fitting SNV 15L, Zn-Ni	-	315	In stock	Enquiry
HD-SNV-16S-CN	DIN 2353 fitting SNV 16S, Zn-Ni	-	400	In stock	Enquiry
HD-SNV-18L-CN	DIN 2353 fitting SNV 18L, Zn-Ni	-	315	In stock	Enquiry
HD-SNV-20S-CN	DIN 2353 fitting SNV 20S, Zn-Ni	-	400	In stock	Enquiry
HD-SNV-22L-CN	DIN 2353 fitting SNV 22L, Zn-Ni	-	160	In stock	Enquiry
HD-SNV-25S-CN	DIN 2353 fitting SNV 25S, Zn-Ni	-	400	In stock	Enquiry
HD-SNV-28L-CN	DIN 2353 fitting SNV 28L, Zn-Ni	-	160	In stock	Enquiry
HD-SNV-30S-CN	DIN 2353 fitting SNV 30S, Zn-Ni	-	400	In stock	Enquiry
HD-SNV-35L-CN	DIN 2353 fitting SNV 35L, Zn-Ni	-	160	In stock	Enquiry
HD-SNV-38S-CN	DIN 2353 fitting SNV 38S, Zn-Ni	-	315	In stock	Enquiry
HD-SNV-42L-CN	DIN 2353 fitting SNV 42L, Zn-Ni	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 straight adjustable fitting, type SNV: socket 24° DIN 2353 on both sides with an o-ring and internal metric thread. Available as: L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
