Is the SNV adjustable straight fitting, stainless steel, available in both L (light) and S (heavy) series?

Yes. The SNV adjustable straight fitting, stainless steel is available in both L (light) and S (heavy) series. The fitting is a 24Â° DIN 2353 socket with Oâring and internal metric thread on both sides, and is made of AISI 316 stainless steel.

What sealing material is used in the SNV adjustable straight fitting, stainless steel, and is it compatible with hydraulic fluids?

The SNV adjustable straight fitting, stainless steel uses an Oâring as the sealing material (24Â° DIN 2353 socket with Oâring). Compatibility with hydraulic fluids depends on the Oâring material - the fitting description does not specify the elastomer type. Common Oâring materials for hydraulic service are NBR (BunaâN), FKM (Viton) and EPDM: NBR is broadly compatible with mineral hydraulic oils, FKM offers wider chemical and temperature resistance (including many synthetic fluids), EPDM is not suitable for petroleum oils. To confirm compatibility with your hydraulic fluid, check the actual Oâring elastomer supplied or request fittings with a specified Oâring material matched to your fluid and operating temperature.

Does the SNV adjustable straight fitting, stainless steel, require special installation tools or torque values?

Does the SNV adjustable straight fitting, stainless steel require special installation tools or torque values? No special proprietary tools are required to install the SNV adjustable straight fitting, stainless steel (DIN 2353 straight adjustable fitting, type SNV). Assembly follows standard DIN 2353 practices: the fitting uses a 24Â° socket with an Oâring and internal metric threads on both sides, and is available in L (light) and S (heavy) series in AISI 316 stainless steel. Recommended installation guidance: - Use standard tube fitting spanners/wrenches sized to the flats on the fitting to avoid damaging surfaces. - Ensure mating threads and faces are clean, undamaged and properly lubricated if specified for your application or media. - Tighten by hand initially, then use a wrench to make the final engagement; for fittings with bite-type or flareless designs per DIN 2353, follow the incremental tightening/rotation procedure in the DIN standard (start with hand-tight, then specified wrench turns). - Because DIN 2353 fittings rely on metal-to-metal sealing geometry (and here additionally an Oâring), avoid over-tightening to prevent distortion of the cone or Oâring extrusion. There is no single universal torque value provided by DIN 2353 for all sizes and series; torque depends on thread size, series (L or S) and tube material. - For critical or safetyârelated installations, consult the manufacturerâs torque recommendations or the DIN 2353 standard tables for the specific nominal size and material, and when possible use a calibrated torque wrench to achieve repeatable results. - After initial assembly, pressurize and inspect for leaks; retighten per manufacturer/DIN guidance if necessary. Summary: No special proprietary tools are required, but use appropriate spanners/wrenches and follow DIN 2353 installation procedures. Torque values are size- and series-specific; obtain the correct values from the manufacturerâs data or DIN 2353 tables and use a calibrated torque wrench for critical assemblies.

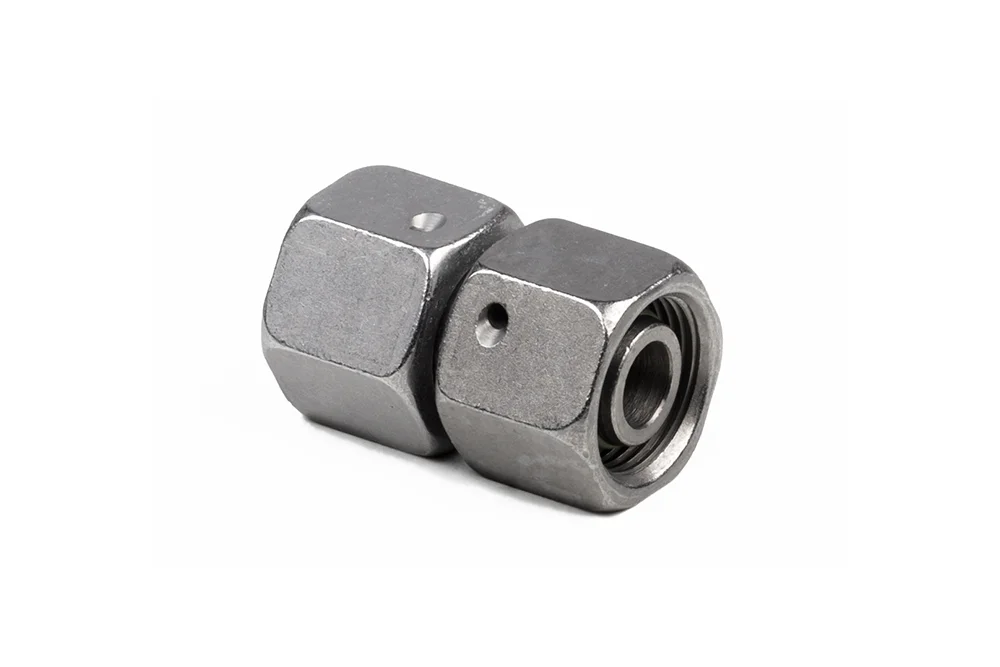

Fitting straight adjustable SNV, stainless steel

Additional information

Material	SS – stainless steel

Fitting DIN 2353 straight adjustable, type SNV: 24° DIN 2353 socket on both sides with an O-ring with metric female thread. Available as: L (series light), S (series heavy). Material: AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-SNV-06L-SS	Fitting DIN 2353 SNV 6L, AISI 316	-	500	In stock	Enquiry
HD-SNV-06S-SS	Fitting DIN 2353 SNV 6S, AISI 316	-	800	In stock	Enquiry
HD-SNV-08L-SS	Fitting DIN 2353 SNV 8L, AISI 316	-	500	In stock	Enquiry
HD-SNV-08S-SS	Fitting DIN 2353 SNV 8S, AISI 316	-	800	In stock	Enquiry
HD-SNV-10L-SS	Fitting DIN 2353 SNV 10L, AISI 316	-	500	In stock	Enquiry
HD-SNV-10S-SS	Fitting DIN 2353 SNV 10S, AISI 316	-	800	In stock	Enquiry
HD-SNV-12L-SS	Fitting DIN 2353 SNV 12L, AISI 316	-	400	In stock	Enquiry
HD-SNV-12S-SS	Fitting DIN 2353 SNV 12S, AISI 316	-	630	In stock	Enquiry
HD-SNV-14S-SS	Fitting DIN 2353 SNV 14S, AISI 316	-	630	In stock	Enquiry
HD-SNV-15L-SS	Fitting DIN 2353 SNV 15L, AISI 316	-	400	In stock	Enquiry
HD-SNV-16S-SS	Fitting DIN 2353 SNV 16S, AISI 316	-	630	In stock	Enquiry
HD-SNV-18L-SS	Fitting DIN 2353 SNV 18L, AISI 316	-	400	In stock	Enquiry
HD-SNV-20S-SS	Fitting DIN 2353 SNV 20S, AISI 316	-	420	In stock	Enquiry
HD-SNV-22L-SS	Fitting DIN 2353 SNV 22L, AISI 316	-	250	In stock	Enquiry
HD-SNV-25S-SS	Fitting DIN 2353 SNV 25S, AISI 316	-	420	In stock	Enquiry
HD-SNV-28L-SS	Fitting DIN 2353 SNV 28L, AISI 316	-	250	In stock	Enquiry
HD-SNV-30S-SS	Fitting DIN 2353 SNV 30S, AISI 316	-	420	In stock	Enquiry
HD-SNV-35L-SS	Fitting DIN 2353 SNV 35L, AISI 316	-	250	In stock	Enquiry
HD-SNV-38S-SS	Fitting DIN 2353 SNV 38S, AISI 316	-	420	In stock	Enquiry
HD-SNV-42L-SS	Fitting DIN 2353 SNV 42L, AISI 316	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 straight adjustable, type SNV: 24° DIN 2353 socket on both sides with an O-ring with metric female thread. Available as: L (series light), S (series heavy). Material: AISI 316.
