Is the Air conditioning hose 3356 compatible with both R134a and R404a refrigerants and PAG/POE oils at operating temperatures from -40Â°C to +125Â°C?

Yes. Air conditioning hose 3356 is compatible with both R134a and R404a refrigerants and with mineral and synthetic oils (PAG and POE). Its construction.black IIR inner tube, steel braid reinforcement, and oil/abrasion/weather-resistant black CSM outer layer.plus its SAE J2064 type B (SAE 100R5) specification and working pressure of 35 bar support use in automotive (trucks/buses) and industrial A/C systems. Rated operating temperature range is â40Â°C to +125Â°C. For installation use appropriate screwed or clamped fittings as specified.

Can Air conditioning hose 3356 be used with screwed or clamped fittings for truck and industrial refrigeration installations?

Yes. Air conditioning hose 3356 is designed for truck and industrial refrigeration and air conditioning systems and should be installed using special screwed or clamped fittings. The hose meets SAE J2064 type B (dimensions SAE 100R5), has a steel braid reinforcement, oil- and abrasion-resistant outer CSM layer, black IIR inner layer, 35 bar working pressure and an operating range of -40Â°C to +125Â°C, and is compatible with R134a, R404a and PAG/POE oils.

Does Air conditioning hose 3356âs micro-perforated CSM outer layer resist oil, abrasion, and weathering in harsh environments?

Yes. Air conditioning hose 3356âs micro-perforated CSM outer layer resists oil, abrasion, and weathering in harsh environments. The hose is specifically designed for automotive and industrial refrigeration and air conditioning systems using R134a and R404a and compatible with mineral and synthetic oils (PAG and POE). Its outer layer is black CSM rubber described as resistant to oil, abrasion, high temperatures, and weather conditions, with an operating range of -40Â°C to +125Â°C and a working pressure of 35 bar. The construction (IIR inner tube, steel braid reinforcement, and micro-perforated CSM outer) and compliance with SAE J2064 type B (SAE 100R5 dimensions) further support its suitability for demanding conditions when installed with appropriate screwed or clamped fittings.

Hose for air conditioning 3356

Additional information

Material	IIR – butyl rubber
Maximum operating temperature [°C]	125
Minimum operating temperature [°C]	-40
Vacuum resistance	no

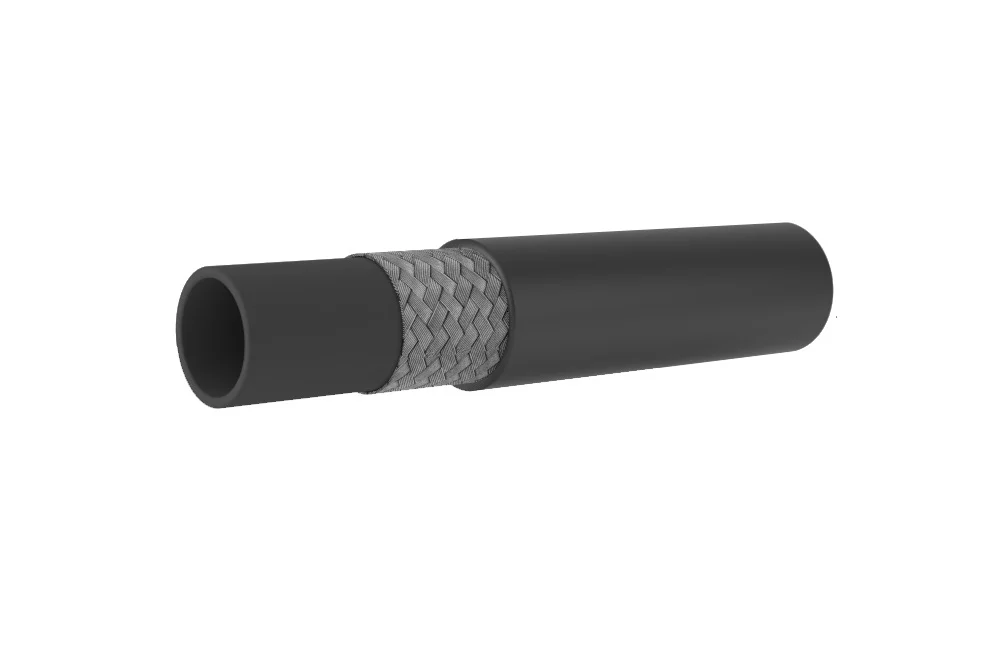

The highest quality hose freon o high diameter intended for automotive (especially trucks and buses) and industrial systems refrigerant and air-conditioning working based on freon R 134a and R404a and oils mineral and synthetic PAG and POE. Layer outer resistant to oil, abrasion, high temperature and conditions atmospheric. standards: SAE J2064 type B (dimensions SAE 100R5). assembly: use bolted or crimped fittings special. Inner layer: black rubber IIR. Reinforcement: a steel braid. Outer layer: black rubber CSM, micro-perforated. Working pressure: 35 bar. Operating temperature: od -40°C up to +125°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
BU-3356-22	Hose 3356 for freonu 7/8" (22.2 mm)	22	35	In stock	0 zł		Enquiry
BU-3356-28	Hose 3356 for freonu 1.1/8" (28.6 mm)	28	35	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The highest quality hose freon o high diameter intended for automotive (especially trucks and buses) and industrial systems refrigerant and air-conditioning working based on freon R 134a and R404a and oils mineral and synthetic PAG and POE. Layer outer resistant to oil, abrasion, high temperature and conditions atmospheric. standards: SAE J2064 type B (dimensions SAE 100R5). assembly: use bolted or crimped fittings special. Inner layer: black rubber IIR. Reinforcement: a steel braid. Outer layer: black rubber CSM, micro-perforated. Working pressure: 35 bar. Operating temperature: od -40°C up to +125°C.
