Is the ANFOR lever connector plug with GZ BSP, galvanized steel, type A.15 suitable for pressures between 5 and 19 bar in wastewater and groundwater applications?

Yes. The ANFOR lever connector plug with GZ BSP, galvanized steel, type A.15 is specified for use in groundwater drainage, wastewater treatment plants and sewage discharge, and its working pressure range is given as 5â19 bar (depending on connector size). Therefore, when you choose the appropriate connector size whose rated working pressure falls within 5â19 bar, this plug is suitable for wastewater and groundwater applications within that pressure range. Ensure the selected sizeâs specific pressure rating, and verify compatibility with fluid chemistry and operating temperature range (â20Â°C to +50Â°C) for your installation.

Can the ANFOR lever connector plug with GZ BSP, galvanized steel, type A.15 be used in environments with temperatures from -20Â°C to +50Â°C?

Yes. The ANFOR lever connector plug with GZ BSP, galvanized steel, type A.15 is specified for an operating temperature range of -20Â°C to +50Â°C, so it can be used in environments within that temperature span. Ensure selection also matches required working pressure (5â19 bar depending on size) and application conditions.

Does the ANFOR lever connector plug with GZ BSP, galvanized steel, type A.15 fit standard agricultural and industrial pipe sizes?

Yes. in most cases. Explanation: The ANFOR lever connector plug with GZ BSP, galvanized steel, type A.15 is designed for use in agricultural, horticultural, industrial and construction applications and features an external (male) BSP thread. BSP (British Standard Pipe) is a widely used standardized pipe thread system in those sectors, so connectors with BSP threads generally fit standard pipes and fittings that use the corresponding BSP size and thread form (parallel or tapered as appropriate). What matters for compatibility: - Thread size and type: You must match the exact BSP nominal size (e.g., 1", 1Â¼", 1Â½", etc.) and whether itâs BSPP (parallel) or BSPT (tapered). The product name indicates a GZ (male) BSP thread. verify the specific nominal size of the connector you have or order. - Pressure rating: The connectorâs working pressure (5â19 bar depending on size) must be compatible with the system pressure. - Application and material: Galvanized steel is suitable for many agricultural and industrial pipelines, but consider corrosion, media (e.g., aggressive chemicals), and operating temperature range (â20Â°C to +50Â°C). - Sealing method: Some BSP connections require thread sealant (PTFE tape, sealant) or an O-ring; check the connector design. Conclusion: If you match the connectorâs BSP nominal size and thread type to your existing standard BSP pipe fittings and ensure the pressure, material and temperature limits are appropriate, the ANFOR lever connector plug with GZ BSP, galvanized steel, type A.15 will fit standard agricultural and industrial pipe sizes.

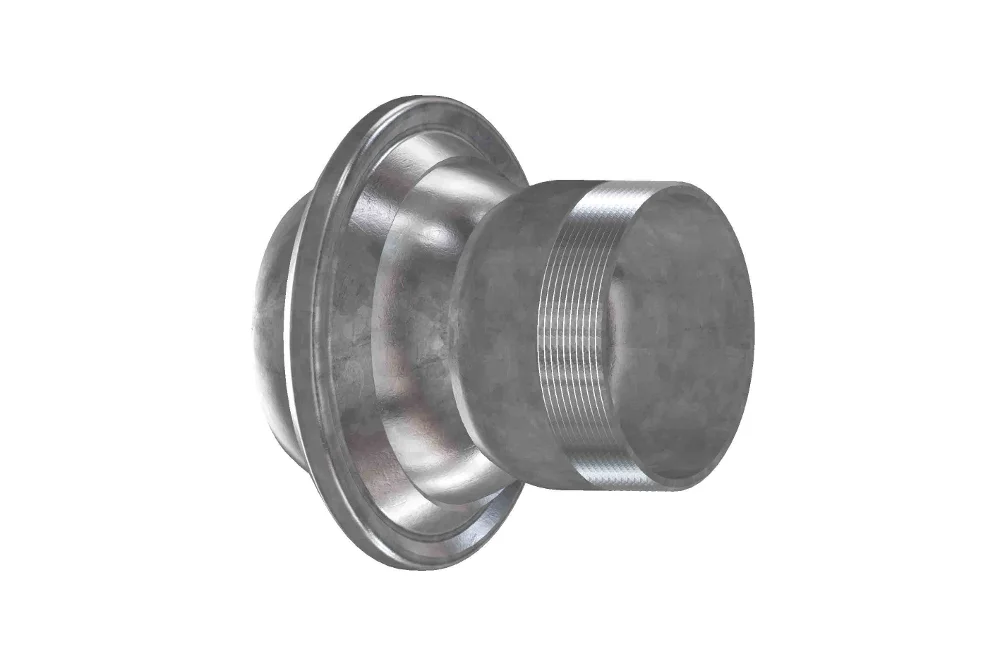

Plug lever coupling ANFOR with male thread BSP, steel galvanized, type A.15

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)

Plug lever coupling ANFOR with a thread external BSP for use among others in agriculture, horticulture, industry, construction, road and tunnel building, groundwater drainage, sewage treatment plants, wastewater discharge, and environmental protection. Material: steel galvanized. Working pressure: from 5 bar to 19 bar (depending on the coupling size). Operating temperature: from -20°C to +50°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
OM-A15-060-200	Plug ANFOR 60 mm with 2" BSP male, galvanized steel	-	19	In stock	Enquiry
OM-A15-080-250	Plug ANFOR 80 mm with 2.1/2" BSP male, galvanized steel	-	16	In stock	Enquiry
OM-A15-080-300	Plug ANFOR 80 mm with 3" BSP male, galvanized steel	-	16	In stock	Enquiry
OM-A15-100-400	Plug ANFOR 100 mm with 4" BSP male, galvanized steel	-	14	In stock	Enquiry
OM-A15-120-500	Plug ANFOR 120 mm with 5" BSP male, galvanized steel	-	13	In stock	Enquiry
OM-A15-150-600	Plug ANFOR 150 mm with 6" BSP male, galvanized steel	-	12	In stock	Enquiry
OM-A15-200-800	Plug ANFOR 200 mm with 8" BSP male, galvanized steel	-	6	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Plug lever coupling ANFOR with a thread external BSP for use among others in agriculture, horticulture, industry, construction, road and tunnel building, groundwater drainage, sewage treatment plants, wastewater discharge, and environmental protection. Material: steel galvanized. Working pressure: from 5 bar to 19 bar (depending on the coupling size). Operating temperature: from -20°C to +50°C.
