Is the ANFOR lever connector plug with hose end, galvanized steel, type A.8 suitable for drinking water or only for wastewater and drainage applications?

Based on the provided description, the ANFOR lever connector plug with hose end, galvanized steel, type A.8 is specified for applications such as agriculture, horticulture, industry, construction, road and tunnel building, groundwater drainage, wastewater treatment plants, sewage discharge and environmental protection. The material is galvanized steel and the operating temperature and pressure ranges are given, but there is no mention of potable/drinking water certification, food-grade materials, or compliance with drinking water standards (e.g., NSF/ANSI, WRAS, KTW). Therefore, ANFOR lever connector plug with hose end, galvanized steel, type A.8 should be considered suitable only for wastewater, drainage and non-potable applications unless the manufacturer explicitly confirms compliance with potable water standards. For use with drinking water, request documentation or certification from the manufacturer verifying material safety and regulatory approvals.

Can ANFOR lever connector plug with hose end, galvanized steel, type A.8 withstand pressures up to 19 bar for heavy-duty construction or tunnel dewatering?

Yes. The ANFOR lever connector plug with hose end, galvanized steel, type A.8 can withstand pressures up to 19 bar for heavy-duty construction or tunnel dewatering, provided you select the connector size rated for the 19 bar working pressure. Ensure the chosen size, installation, hoses and fittings are all compatible with the 19 bar rating and operating temperature range (â20Â°C to +50Â°C) for safe use.

Does the ANFOR lever connector plug with hose end, galvanized steel, type A.8 require specific hose types or clamps for safe use?

Yes. The ANFOR lever connector plug with hose end, galvanized steel, type A.8 requires appropriate hose types and secure clamping for safe and reliable use. Key points: - Hose material: Use hoses rated for the connectorâs working pressure (5â19 bar depending on size) and for the operating temperature range (â20Â°C to +50Â°C). For applications listed (agriculture, horticulture, industry, construction, groundwater drainage, wastewater, sewage, environmental protection) choose chemically and abrasionâresistant hoses compatible with the media handled (water, wastewater, slurry, chemicals where applicable). Common suitable types include reinforced rubber, PVC, or thermoplastic hoses designed for fluid transfer and rated to at least the connectorâs maximum pressure for the chosen size. - Hose diameter and fit: Match the hose internal diameter to the hose tail size of the ANFOR lever connector plug with hose end, galvanized steel, type A.8 to ensure a tight overlap on the tail section. - Clamping: Use appropriate clamps (e.g., heavyâduty wormâdrive, ear/clamp, or hydraulic clamps) sized and rated for the hose and working pressure to prevent blowâoff. For higher pressures or critical installations, use stainless steel Tâbolt or band clamps that provide uniform compression and higher clamp strength. - Installation best practices: Ensure clean, smooth hose ends, sufficient tail insertion depth, and at least one clamp (preferably two staggered for higher pressures or aggressive conditions). Inspect clamps and hose periodically for wear, corrosion, or loosening. - Application risk: For corrosive media, high mechanical stress, or continuous highâpressure use near the upper pressure limit, select hoses and clamps with higher safety margins and consider additional retention (safety wire, captive clamp, or crimped fittings). In summary, match hose construction, pressure and temperature ratings, and clamp type to the ANFOR lever connector plug with hose end, galvanized steel, type A.8âs specifications and the intended service conditions to ensure safe operation.

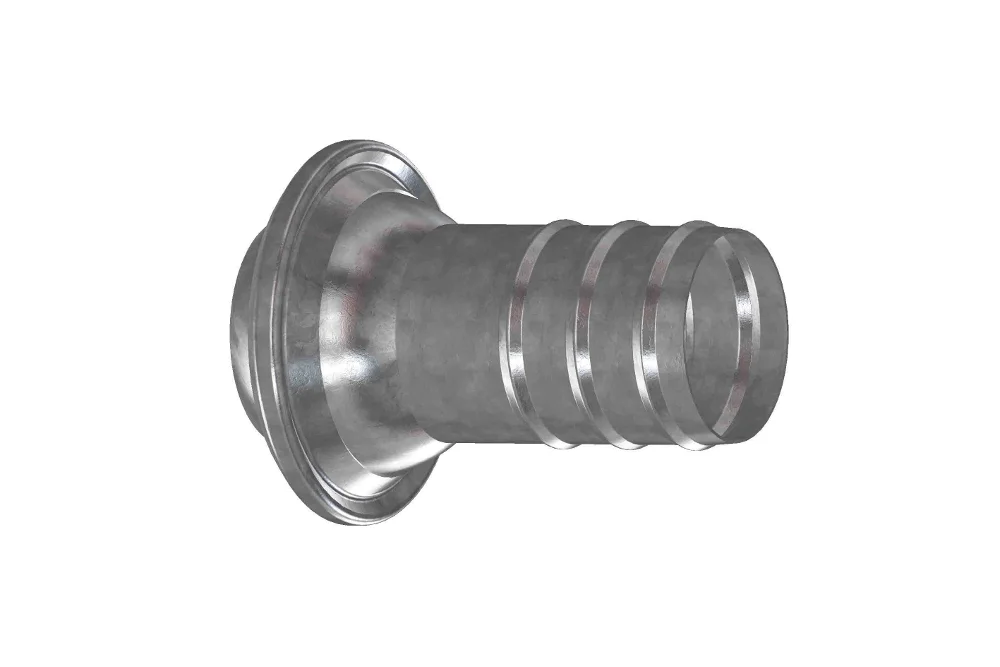

Plug lever coupling ANFOR with fitting for hose, steel galvanized, type A.8

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

Plug lever coupling ANFOR with “tail” for hose for use among others in agriculture, horticulture, industry, construction, road and tunnel building, groundwater drainage, sewage treatment plants, wastewater discharge, and environmental protection. Material: steel galvanized. Working pressure: from 5 bar to 19 bar (depending on the coupling size). Operating temperature: from -20°C to +50°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
OM-A8-060-060	Plug ANFOR 60 mm with Fitting for 60 mm hose, galvanized steel	60	19	In stock	Enquiry
OM-A8-080-080	Plug ANFOR 80 mm with Fitting for 80 mm hose, galvanized steel	80	16	In stock	Enquiry
OM-A8-100-100	Plug ANFOR 100 mm with Fitting for 100 mm hose, galvanized steel	100	14	In stock	Enquiry
OM-A8-120-120	Plug ANFOR 120 mm with Fitting for 120 mm hose, galvanized steel	120	13	In stock	Enquiry
OM-A8-150-150	Plug ANFOR 150 mm with Fitting for 150 mm hose, galvanized steel	150	12	In stock	Enquiry
OM-A8-200-200	Plug ANFOR 200 mm with Fitting for 200 mm hose, galvanized steel	200	6	In stock	Enquiry
OM-A8-250-250	Plug ANFOR 250 mm with Fitting for 250 mm hose, galvanized steel	250	5	In stock	Enquiry
OM-A8-300-300	Plug ANFOR 300 mm with Fitting for 300 mm hose, galvanized steel	300	5	In stock	Enquiry
OM-A8-400-400	Plug ANFOR 400 mm with Fitting for 400 mm hose, galvanized steel	400	5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Plug lever coupling ANFOR with “tail” for hose for use among others in agriculture, horticulture, industry, construction, road and tunnel building, groundwater drainage, sewage treatment plants, wastewater discharge, and environmental protection. Material: steel galvanized. Working pressure: from 5 bar to 19 bar (depending on the coupling size). Operating temperature: from -20°C to +50°C.
