WE-BT angle screw connection, stainless steel

Additional information

Material	SS – stainless steel

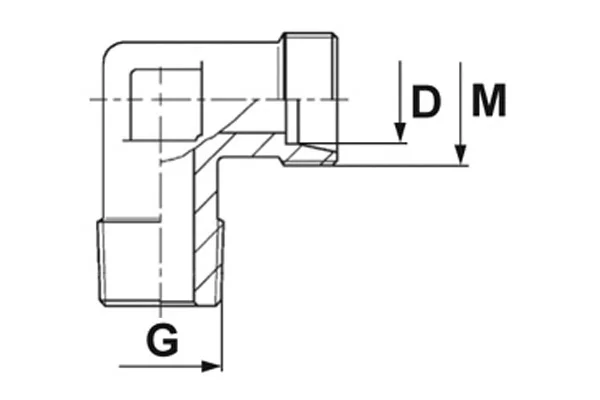

DIN 2353 angular screw connection, type WE-BT: 24° DIN 2353 socket with external metric thread and external BSPT thread (seal on the thread – with Teflon tape or anaerobic sealant). Safety factor 2.5:1. Available as: LL (very light series), L (light series), S (heavy series). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WE-04LL-BT-02-SS	DIN 2353 fitting WE 4LL 1/8" BSPT, AISI 316	-	100	In stock	Enquiry
HD-WE-06L-BT-02-SS	DIN 2353 fitting WE 6L 1/8" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-06L-BT-04-SS	DIN 2353 fitting WE 6L 1/4" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-06S-BT-04-SS	DIN 2353 fitting WE 6S 1/4" BSPT, AISI 316	-	630	In stock	Enquiry
HD-WE-08L-BT-02-SS	DIN 2353 fitting WE 8L 1/8" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-08L-BT-04-SS	DIN 2353 fitting WE 8L 1/4" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-08L-BT-06-SS	DIN 2353 fitting WE 8L 3/8" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-08L-BT-08-SS	DIN 2353 fitting WE 8L 1/2" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-08S-BT-04-SS	DIN 2353 fitting WE 8S 1/4" BSPT, AISI 316	-	630	In stock	Enquiry
HD-WE-10L-BT-02-SS	DIN 2353 fitting WE 10L 1/8" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-10L-BT-04-SS	DIN 2353 fitting WE 10L 1/4" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-10L-BT-06-SS	DIN 2353 fitting WE 10L 3/8" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-10S-BT-06-SS	DIN 2353 fitting WE 10S 3/8" BSPT, AISI 316	-	630	In stock	Enquiry
HD-WE-12L-BT-04-SS	DIN 2353 fitting WE 12L 1/4" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-12L-BT-06-SS	DIN 2353 fitting WE 12L 3/8" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-12L-BT-08-SS	DIN 2353 fitting WE 12L 1/2" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-12S-BT-06-SS	DIN 2353 fitting WE 12S 3/8" BSPT, AISI 316	-	630	In stock	Enquiry
HD-WE-12S-BT-08-SS	DIN 2353 fitting WE 12S 1/2" BSPT, AISI 316	-	630	In stock	Enquiry
HD-WE-14S-BT-06-SS	DIN 2353 fitting WE 14S 3/8" BSPT, AISI 316	-	630	In stock	Enquiry
HD-WE-14S-BT-08-SS	DIN 2353 fitting WE 14S 1/2" BSPT, AISI 316	-	630	In stock	Enquiry
HD-WE-15L-BT-06-SS	DIN 2353 fitting WE 15L 3/8" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-15L-BT-08-SS	DIN 2353 fitting WE 15L 1/2" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-16S-BT-06-SS	DIN 2353 fitting WE 16S 3/8" BSPT, AISI 316	-	400	In stock	Enquiry
HD-WE-16S-BT-08-SS	DIN 2353 fitting WE 16S 1/2" BSPT, AISI 316	-	400	In stock	Enquiry
HD-WE-18L-BT-08-SS	DIN 2353 fitting WE 18L 1/2" BSPT, AISI 316	-	315	In stock	Enquiry
HD-WE-18L-BT-12-SS	DIN 2353 fitting WE 18L 3/4" BSPT, AISI 316	-	160	In stock	Enquiry
HD-WE-20S-BT-08-SS	DIN 2353 fitting WE 20S 1/2" BSPT, AISI 316	-	400	In stock	Enquiry
HD-WE-20S-BT-12-SS	DIN 2353 fitting WE 20S 3/4" BSPT, AISI 316	-	400	In stock	Enquiry
HD-WE-22L-BT-12-SS	DIN 2353 fitting WE 22L 3/4" BSPT, AISI 316	-	160	In stock	Enquiry
HD-WE-28L-BT-16-SS	DIN 2353 fitting WE 28L 1" BSPT, AISI 316	-	160	In stock	Enquiry
HD-WE-35L-BT-20-SS	DIN 2353 fitting WE 35L 1.1/4" BSPT, AISI 316	-	160	In stock	Enquiry
