Is the ECODORA E-540 automatic hose reel machine, carbon steel safe for use with hot oil up to +130Â°C and ATEX-classified environments?

Yes . ECODORA E-540 automatic hose reel machine, carbon steel is suitable for hot oil up to +130Â°C and for ATEX-classified environments, with these conditions and limits: - Temperature: The unitâs operating temperature is specified up to +130Â°C (without hose). To use with hot oil at that temperature you must fit a hose rated for hot oil at +130Â°C; the drum itself and viton seals are rated to that limit but the hose is supplied separately and must match the media and temperature. - Media compatibility: The reel is designed for water, oil, lubricants and similar media; viton sealing improves chemical/temperature resistance for many oils. Verify compatibility of the specific oil grade with viton and the chosen hose material. - ATEX: It is compliant with ATEX directive 94/9 IIB 2GD c T4 T135C X, so it is certified for use in II B hazardous gas groups and dust zones covered by that classification. Ensure installation and surrounding equipment meet the same ATEX requirements. - Other notes: The reel includes a tested retractable spring (25,000 cycles) and rotating connection made of AISI 304 steel (or brass for ED-540-10). The drum is powder-coated carbon steel. Rotating or fixed suspensions and the hose itself must be ordered separately. Conclusion: ECODORA E-540 automatic hose reel machine, carbon steel can be used with hot oil up to +130Â°C and in ATEX environments when you install an appropriate hose rated for that temperature/media and confirm the rest of the installation complies with the ATEX zone and equipment requirements.

Can the ECODORA E-540 automatic hose reel machine, carbon steel, be used with viton-sealed rotating connection for hot water, oil, and lubricants up to +130Â°C?

Yes. The ECODORA E-540 automatic hose reel machine, carbon steel, can be used with a vitonâsealed rotating connection for hot water, oil, and lubricants up to +130Â°C - the rotating connection features Viton sealing and the specified operating temperature is up to +130Â°C (note: this limit applies without hose; select a hose rated for that temperature).

Does the ECODORA E-540 automatic hose reel machine, carbon steel, include a hose bumper and removable suspension options?

Yes. The ECODORA E-540 automatic hose reel machine, carbon steel includes a hose bumper. It does not include a hose (must be ordered separately). Removable suspension options are available but sold separately: you can order either a rotating suspension or an additional fixed suspension designed for quick disassembly (e.g., for winter).

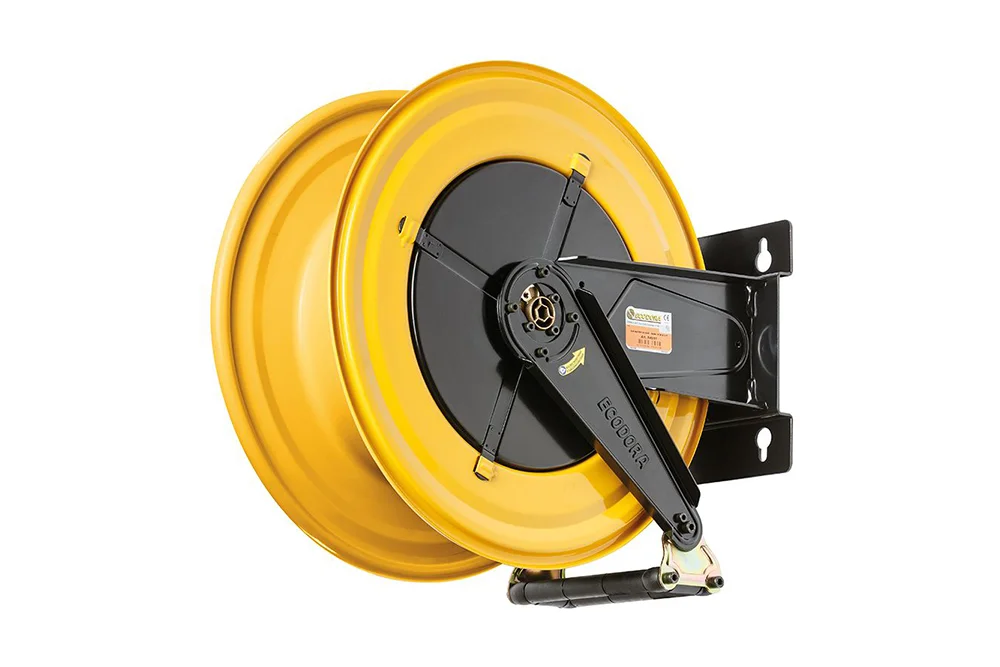

Automatic reel drum ECODORA E-540 for hose, steel carbon

All products, Spring-driven hose reels/

Additional information

Material	CS – steel (cast iron)
Maximum operating temperature [°C]	130

An automatic drum reel for hoses for cold and hot water, oil, greases and other media. The rewind spring tested for 25000 winding and unwinding cycles. compliant with the directive ATEX 94/9 IIB 2GD c T4 T135C X. A hose stopper included in the set. The reel is not equipped with a hose, which should be ordered separately. A swivel bracket or an additional fixed bracket for quick removal (e.g. in winter) ordered separately. advantages: coupling swivel of steel AISI 304 (ED-540-10 coupling swivel with brass), sealing Viton. Material drum: steel carbon painted powder. Sealing: Viton. Operating temperature: up to +130°C (without hose).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
ED-540-10	Reel E-540 for hose 1" / 15 m, 20 bar, carbon steel	25	20	In stock	Enquiry
ED-540-20	Reel E-540 for hose 3/4" / 20 m, carbon steel	20	150	In stock	Enquiry
ED-540-25	Reel E-540 for hose 1/2" / 30m, carbon steel	12	150	In stock	Enquiry
ED-540-30	Reel E-540 for hose 3/8" / 30 m, carbon steel	10	200	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

An automatic drum reel for hoses for cold and hot water, oil, greases and other media. The rewind spring tested for 25000 winding and unwinding cycles. compliant with the directive ATEX 94/9 IIB 2GD c T4 T135C X. A hose stopper included in the set. The reel is not equipped with a hose, which should be ordered separately. A swivel bracket or an additional fixed bracket for quick removal (e.g. in winter) ordered separately. advantages: coupling swivel of steel AISI 304 (ED-540-10 coupling swivel with brass), sealing Viton. Material drum: steel carbon painted powder. Sealing: Viton. Operating temperature: up to +130°C (without hose).
