Is the NOR adaptor with BSP female thread, bronze compatible with standard Storz couplings used on ships and fire trucks?

Yes. The NOR adaptor with BSP female thread, bronze is compatible with standard Storz-type couplings used on ships and fire trucks. It is specifically described as having a symmetrical Storz-style connection part with an internal BSP thread, built to the Norwegian national standard and widely used in maritime and firefighting installations. Its bronze construction, NBR sealing and 10 bar working pressure make it suitable for typical shipboard and mobile firefighting water-supply systems. Compatibility note: it mates with Storz couplings of the same nominal size and standard; ensure matching nominal diameter and pressure rating when specifying for a particular system.

Can the NOR adaptor with BSP female thread, bronze be used in saltwater environments without additional corrosion protection?

Short answer: No - not recommended without additional protection. Explanation: The NOR adaptor with BSP female thread, bronze is commonly used in marine and firefighting applications and bronze offers better corrosion resistance than many ferrous metals. However, saltwater is highly corrosive: bronze can suffer dezincification, pitting, and galvanic corrosion over time, especially at joints and threads where NBR sealing and contact with other metals occur. NBR seals are not ideal long-term for continuous seawater exposure either. For reliable long-term use in saltwater environments, apply additional corrosion protection (sacrificial anodes, protective coatings, cathodic protection), ensure compatible mating materials, regular inspection and maintenance, or choose materials certified for seawater service (e.g., Naval bronze grades, duplex stainless steels) depending on duty and exposure.

What maintenance is required for the NOR adaptor with BSP female thread, bronze to ensure 10 bar rating?

To maintain the 10 bar rating of the NOR adaptor with BSP female thread, bronze, perform the following routine maintenance and checks: 1. Visual inspection (before use and periodically) - Check the bronze body for cracks, deformation, corrosion, or signs of fretting. - Inspect the BSP female thread for wear, galling, cross-threading or damage that could prevent proper tightening. - Examine the Storz-type symmetrical connection faces for dents, burrs or misalignment. 2. Sealing inspection and replacement - Inspect the NBR seal (gasket/Oâring) for cuts, hardening, swelling, flattening, chemical attack or loss of elasticity. - Replace the NBR seal immediately if any deterioration is found; use correct size and material to preserve rated pressure. 3. Functional checks - Assemble and tighten the adaptor to mating parts to ensure proper engagement and leak-free fit; ensure thread engagement is complete and torque is appropriate for the joint (follow equipment-specific torque recommendations where available). - Perform a pressure/leak test at or slightly above working pressure (up to 10 bar per applicable procedures) after reassembly or after seal/thread work, and hold for the required inspection interval to confirm no leakage. 4. Cleaning and lubrication - Clean contact and sealing surfaces from dirt, debris, paint or marine deposits before assembly. - Lightly lubricate threads with a compatible, non-reactive lubricant approved for bronze and NBR (avoid oils that degrade NBR) to prevent galling and ensure proper torque. 5. Corrosion protection and storage - For marine or corrosive environments, apply appropriate corrosion inhibitors to external surfaces as permitted, and store the adaptor dry, protected from sunlight and chemicals that can degrade NBR seals. - Avoid prolonged exposure of NBR seals to ozone, UV and high temperatures during storage. 6. Service intervals and records - Establish inspection intervals based on frequency of use, environment (marine/industrial), and local regulations; increase frequency in aggressive environments. - Keep maintenance records of inspections, seal replacements and pressure tests. 7. Replacement criteria - Replace the adaptor if threads are irreparably damaged, if the bronze shows structural defects, or if sealing cannot be restored with a new NBR gasket. - Do not exceed the specified working pressure (10 bar); if higher pressures are needed, select appropriately rated equipment. Following these steps will help ensure the NOR adaptor with BSP female thread, bronze maintains its integrity and 10 bar working pressure.

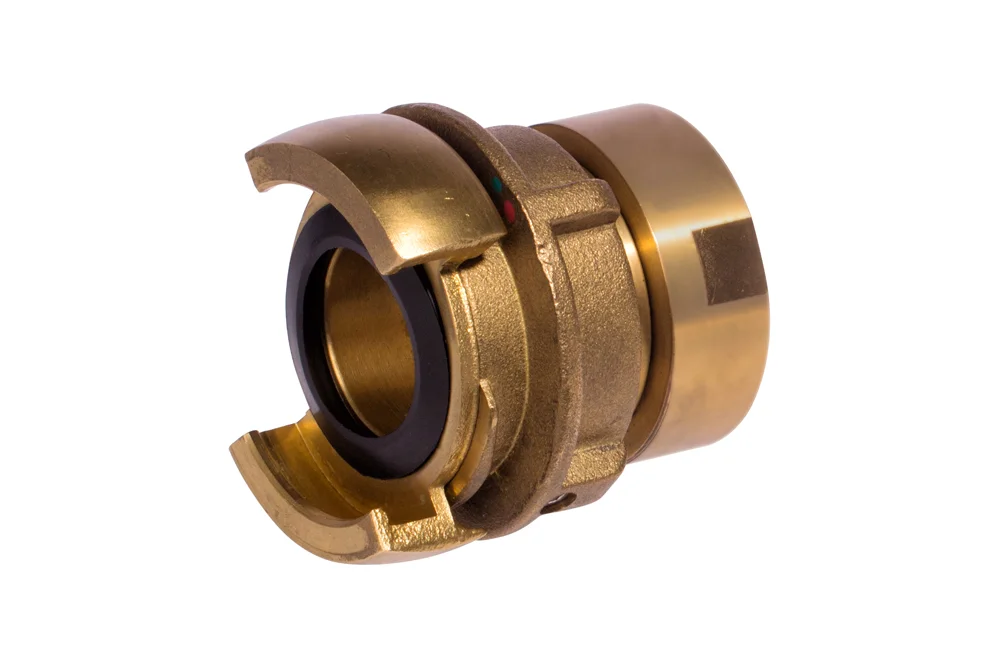

A NOR adapter with a thread internal BSP, bronze

All products, Symmetrical claw couplings/

Additional information

Material	B – brass (bronze)

A NOR adapter having a STORZ-type symmetrical design of the connection part with a thread internal BSP designed in accordance with the Norwegian national standard. Widely used in fire-protection installations on ships, in industry and in mobile water supply. Material: bronze. Sealing: NBR. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GP-NOR2040025-B	Adapter NOR 50 mm with 1" BSP female, bronze	-	10	In stock	Enquiry
GP-NOR2040050-B	Adapter NOR 50 mm with 2" BSP female, bronze	-	10	In stock	Enquiry
GP-NOR2050038-B	Adapter NOR 66 mm with 1.1/2" BSP female, bronze	-	10	In stock	Enquiry
GP-NOR2050050-B	Adapter NOR 66 mm with 2" BSP female, bronze	-	10	In stock	Enquiry
GP-NOR2065038-B	Adapter NOR 83 mm with 1.1/2" BSP female, bronze	-	10	In stock	Enquiry
GP-NOR2065050-B	Adapter NOR 83 mm with 2" BSP female, bronze	-	10	In stock	Enquiry
GP-NOR2065065-B	Adapter NOR 83 mm with 2.1/2" BSP female, bronze	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A NOR adapter having a STORZ-type symmetrical design of the connection part with a thread internal BSP designed in accordance with the Norwegian national standard. Widely used in fire-protection installations on ships, in industry and in mobile water supply. Material: bronze. Sealing: NBR. Working pressure: 10 bar.
