Is the CEJN 115 quick connect plug with GW with valve, hardened steel compatible with my hydraulic press at 1000 bar working pressure?

Yes . the CEJN 115 quick connect plug with GW with valve, hardened steel is compatible with a hydraulic press operating at 1000 bar, provided the press uses a matching coupling and thread type. Key points from the product data: - Rated working pressure (connected coupling): 1000 bar . matches your press pressure. - Burst pressure: 2600 bar . provides a safety margin. - Material: hardened, galvanized steel . suitable for high-pressure hydraulic service. - Sealing: NBR and operating temperature range â30Â°C to +100Â°C . verify compatibility with your fluid and temperature conditions. - Flow and nominal diameter: 6 l/min at Îp = 4 bar, nominal Ã 2.5 mm . ensure this flow capacity and diameter meet your application requirements. - Supplied with protective cap and built-in valve . appropriate for press use. Final note: confirm thread size/type and coupling compatibility with your press, and ensure the fluid and temperature fall within NBR limits.

Is the CEJN 115 quick connect plug with GW with valve, hardened steel suitable for rescue tools operating at -30Â°C to +100Â°C?

Yes. The CEJN 115 quick connect plug with GW with valve, hardened steel is suitable for rescue tools operating at -30Â°C to +100Â°C. Its specifications list an operating temperature range of -30Â°C to +100Â°C, working pressure up to 1000 bar (connected), hardened galvanized steel construction, NBR sealing, and intended use in rescue equipment and cutters, confirming suitability for those temperature conditions.

Can the CEJN 115 quick connect plug with GW with valve, hardened steel handle transient pressure spikes above 1000 bar?

No. the CEJN 115 quick connect plug with GW with valve, hardened steel is rated for a continuous working pressure of 1000 bar (when connected) and a burst pressure of 2600 bar, but it is not guaranteed to safely withstand arbitrary transient spikes above 1000 bar. Explanation: The specified working pressure (1000 bar) is the maximum continuous operating pressure for which the CEJN 115 quick connect plug with GW with valve, hardened steel is designed. Burst pressure (2600 bar) indicates the pressure at which catastrophic failure may occur, not a safe transient limit. Transient pressure spikes between 1000 bar and 2600 bar could cause accelerated wear, seal (NBR) damage, valve malfunction or unpredictable failure. Additionally, NBR sealing performance and the hardened, galvanized steel handle may be compromised by repeated or high-magnitude transients; the specified operating temperature range (-30Â°C to +100Â°C) also affects seal resilience. Recommendation: If your system may experience pressure spikes above 1000 bar, consult CEJN or a qualified engineer for guidance, consider pressure dampening (accumulators, surge suppressors), rated components with a higher continuous pressure rating, or verified transient-tested couplings.

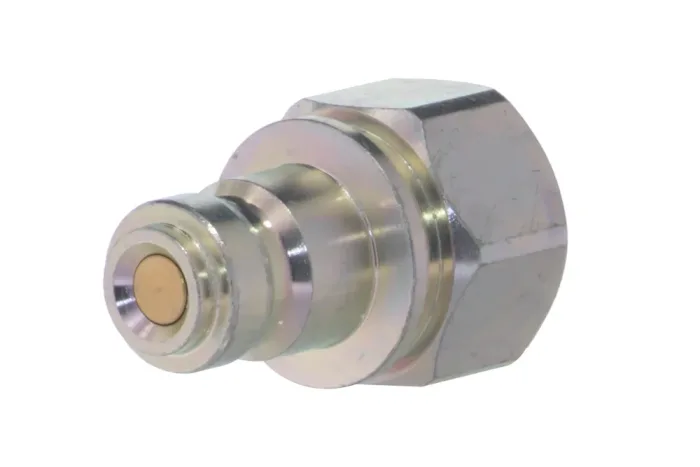

CEJN 115 quick connect plug with GW with valve, hardened steel

All products, UHP quick couplings/

Additional information

Material	CS – steel (cast iron)

CEJN 115 quick coupling plug with internal thread and valve designed for hydraulic installations at very high pressures. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Supplied standard with a cap for protection against contamination. Material: hardened, galvanized steel. Sealing: NBR. Flow: 6 l/min (Δp = 4 bar). Nominal diameter: 2.5 mm. Working pressure: 1000 bar (connected coupling). Burst pressure: 2600 bar. Operating temperature: from -30°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CJ-HP-101156102	CEJN 115 plug 1/4" BSPT	-	1000	In stock	Enquiry
CJ-HP-101156104	CEJN 115 GW 3/8" BSPT plug	-	1000	In stock	Enquiry
CJ-HP-101156201	CEJN 115 plug 1/8" BSP	-	1000	In stock	Enquiry
CJ-HP-101156202	CEJN 115 male connector 1/4" BSP	-	1000	In stock	Enquiry
CJ-HP-101156204	CEJN 115 GW 3/8" BSP connector	-	1000	In stock	Enquiry
CJ-HP-101156401	CEJN 115 GW 1/8" NPT plug	-	1000	In stock	Enquiry
CJ-HP-101156402	CEJN 115 plug 1/4" NPT	-	1000	In stock	Enquiry
CJ-HP-101156404	CEJN 115 male connector 3/8" NPT	-	1000	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

CEJN 115 quick coupling plug with internal thread and valve designed for hydraulic installations at very high pressures. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Supplied standard with a cap for protection against contamination. Material: hardened, galvanized steel. Sealing: NBR. Flow: 6 l/min (Δp = 4 bar). Nominal diameter: 2.5 mm. Working pressure: 1000 bar (connected coupling). Burst pressure: 2600 bar. Operating temperature: from -30°C to +100°C.
