Is the CEJN 115 quick connect socket with GW with valve, hardened steel compatible with my hydraulic press operating at 1000 bar?

Yes . the CEJN 115 quick connect socket with GW with valve, hardened steel is compatible with your hydraulic press operating at 1000 bar, with these caveats: - Rated working pressure (connected coupling) = 1000 bar . matches your system pressure. - Burst pressure = 2600 bar provides a substantial safety margin for static/short-term overloads. - Designed specifically for high-pressure hydraulic applications (hydraulic presses, rescue equipment, lifts, cutters). - Materials and seals: hardened, galvanized steel with NBR sealing; suitable for many hydraulic fluids but verify fluid compatibility with NBR and galvanization. - Flow and size: nominal diameter 2.5 mm and flow rate 6 l/min (Îp = 4 bar) . ensure this meets your required flow and pressure-drop constraints. - Temperature range: -30Â°C to +100Â°C . ensure your operating environment and fluid temperature fall within this range. - Safety features: can be fitted with a safety ring to prevent accidental disconnection; supplied with a protective cap. Recommendation: confirm fluid compatibility with NBR, ensure required flow/pressure-drop is acceptable for your press, and consider using the safety ring if accidental disconnection is a concern.

Can the CEJN 115 quick connect socket with GW with valve, hardened steel be fitted with a safety ring to prevent accidental disconnection?

Yes. The CEJN 115 quick connect socket with GW with valve, hardened steel can be fitted with a safety ring to prevent accidental disconnection. The socket is optionally equipped with this safety ring and is supplied standard with a protective cap. It is designed for very high-pressure hydraulic installations (working pressure 1000 bar connected) and made of hardened, galvanized steel with NBR sealing.

Does the CEJN 115 quick connect socket with GW with valve, hardened steel include a protective cap for contamination?

Yes. The CEJN 115 quick connect socket with GW with valve, hardened steel is supplied standard with a cap for protection against contamination.

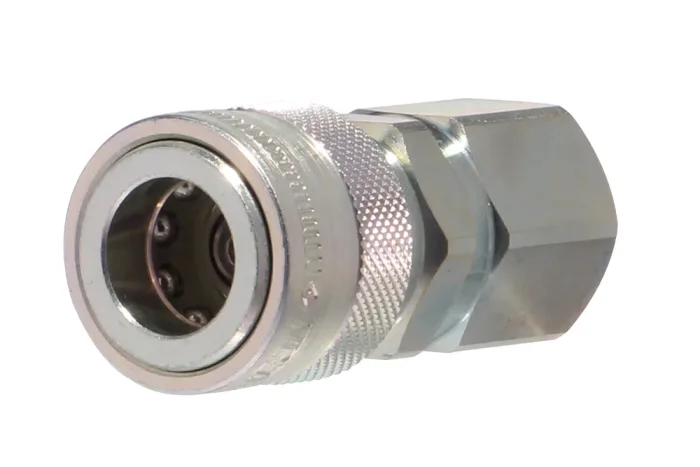

CEJN 115 quick connect socket with GW with valve, hardened steel

All products, UHP quick couplings/

Additional information

Material	CS – steel (cast iron)

CEJN 115 quick coupling socket with internal thread and valve designed for hydraulic installations at very high pressures. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Optionally, the socket can be equipped with a safety ring to prevent accidental disconnection. Supplied standard with a cap for protection against contamination. Material: hardened, galvanized steel. Sealing: NBR. Flow rate: 6 l/min (Δp = 4 bar). Nominal diameter: 2.5 mm. Working pressure: 1000 bar (connected coupling). Burst pressure: 2600 bar. Operating temperature: from -30°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CJ-HP-101151102	CEJN 115 GW 1/4" BSPT socket	-	1000	In stock	Enquiry
CJ-HP-101151104	CEJN 115 GW 3/8" BSPT socket	-	1000	In stock	Enquiry
CJ-HP-101151201	CEJN 115 GW 1/8" BSP socket	-	1000	In stock	Enquiry
CJ-HP-101151202	CEJN 115 GW 1/4" BSP socket	-	1000	In stock	Enquiry
CJ-HP-101151204	CEJN 115 GW 3/8" BSP socket	-	1000	In stock	Enquiry
CJ-HP-101151401	CEJN 115 GW 1/8" NPT socket	-	1000	In stock	Enquiry
CJ-HP-101151402	CEJN 115 GW 1/4" NPT socket	-	1000	In stock	Enquiry
CJ-HP-101151404	CEJN 115 GW 3/8" NPT socket	-	1000	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

CEJN 115 quick coupling socket with internal thread and valve designed for hydraulic installations at very high pressures. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Optionally, the socket can be equipped with a safety ring to prevent accidental disconnection. Supplied standard with a cap for protection against contamination. Material: hardened, galvanized steel. Sealing: NBR. Flow rate: 6 l/min (Δp = 4 bar). Nominal diameter: 2.5 mm. Working pressure: 1000 bar (connected coupling). Burst pressure: 2600 bar. Operating temperature: from -30°C to +100°C.
