Is the CEJN 116 quick connect plug with GZ without valve, hardened steel suitable for continuous use at 1500 bar in hydraulic presses?

Yes. The CEJN 116 quick connect plug with GZ without valve, hardened steel is specified for hydraulic installations at very high pressures and lists a working pressure of 1500 bar (when connected), a burst pressure of 3000 bar, and is explicitly used in hydraulic presses. Material (hardened, galvanized steel) and operating temperature range (â30Â°C to +100Â°C) support heavy-duty continuous use. Note the flow rating is low (6 l/min at Îp = 4 bar) and the plug is supplied with a protective cap; ensure the mating coupling is the correct CEJN 116 series model rated for 1500 bar and that system conditions (pressure spikes, temperature, contamination, fatigue due to cyclic loading, seal compatibility) are addressed. If those system-level checks are satisfied, the CEJN 116 quick connect plug with GZ without valve, hardened steel is suitable for continuous use at 1500 bar in hydraulic presses.

Can the CEJN 116 quick connect plug with GZ without valve, hardened steel be used safely in rescue equipment at temperatures down to -30Â°C?

Yes. The CEJN 116 quick connect plug with GZ without valve, hardened steel is specified for use in hydraulic installations including rescue equipment and its operating temperature range is listed as -30Â°C to +100Â°C. Given its construction (hardened, galvanized steel), high working pressure (1500 bar connected) and intended applications (rescue equipment among others), it can be used safely down to -30Â°C provided: the mating coupling and complete hydraulic system are also rated for -30Â°C, seals and hydraulic fluid remain suitable at that temperature, and periodic inspection/maintenance procedures for cold environments are followed.

Can the CEJN 116 quick connect plug with GZ without valve, hardened steel handle flow rates of 6 l/min at Îp = 4 bar?

Yes. The CEJN 116 quick connect plug with GZ without valve, hardened steel provides a flow of 6 l/min at a pressure drop Îp = 4 bar according to the product description. Its nominal diameter (2.5 mm) and specified flow value confirm it meets that performance, while the component is rated for hydraulic service up to 1500 bar (connected coupling) and constructed from hardened, galvanized steel.

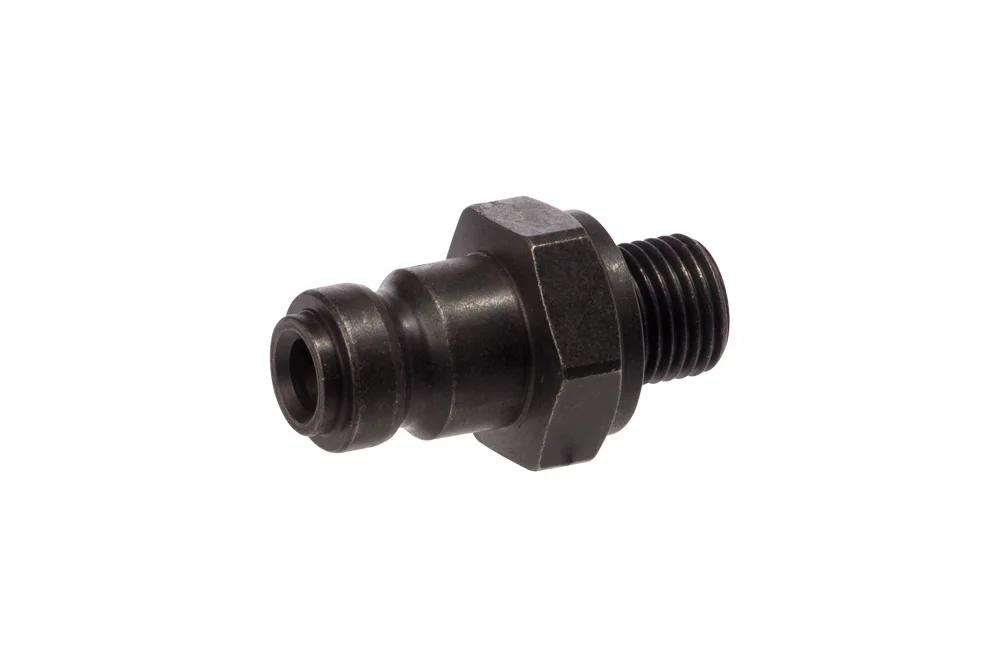

CEJN 116 quick-coupling plug with male thread without a valve, hardened steel

All products, UHP quick couplings/

Additional information

Material	CS – steel (cast iron)

CEJN 116 quick-coupling plug with a male thread without a valve intended for hydraulic installations at very high pressures. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Supplied as standard with a cap to protect against contamination. Material: hardened steel, galvanized. Flow: 6 l/min (Δp = 4 bar). Nominal diameter: 2.5 mm. Working pressure: 1500 bar (coupling connected). Burst pressure: 3000 bar. Operating temperature: from -30°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CJ-HP-101165252	Plug CEJN 116 1/4" BSP male without valve	-	1500	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

CEJN 116 quick-coupling plug with a male thread without a valve intended for hydraulic installations at very high pressures. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Supplied as standard with a cap to protect against contamination. Material: hardened steel, galvanized. Flow: 6 l/min (Δp = 4 bar). Nominal diameter: 2.5 mm. Working pressure: 1500 bar (coupling connected). Burst pressure: 3000 bar. Operating temperature: from -30°C to +100°C.
