Can a Collet L type made of AISI 304 steel be used to crimp Z-type hydraulic hose ends if sleeve L â¤ tail length Lk and matches hose Dw and Dz?

Yes . a Collet L type made of AISI 304 steel can be used to crimp Z-type hydraulic hose ends provided the following conditions from the L-type sleeve description are met: - Sleeve internal diameter (D2) matches the hose internal diameter Dw. - Sleeve external diameter (D1) and locking diameter (D3) are compatible with the Z-type end dimensions and the crimping tool. - Sleeve length L is less than or equal to the tail length Lk of the hose end (L â¤ Lk). - The sleeve is suitable for the hose construction (rubber or plastic with textile reinforcement, and if present a reinforcing spiral) and intended service (suction and pressure, high-pressure hydraulic). Material AISI 304 steel is acceptable for sleeves where corrosion resistance and strength meet the application requirements; verify pressure ratings and any manufacturer recommendations or certifications for high-pressure hydraulic service. If all dimensional matches and suitability checks above are satisfied, the Collet L type (AISI 304 steel, type L Format) may be used to crimp Z-type ends.

Can a Collet L made of AISI 304 steel crimp Z-type hydraulic hose ends when sleeve L â¤ tail length Lk and fits hose Dw and Dz?

Yes - a Collet L made of AISI 304 steel in L-type sleeve format can crimp Z-type hydraulic hose ends provided all dimensional and fit conditions are met: the sleeve internal diameter D2 must match the hose inner diameter Dw and the sleeve external diameter D1 must correspond to the hose outer diameter Dz (or be compatible with the end). The sleeve length L must be less than or equal to the tail length Lk of the end. The locking diameter D3 must suit the endâs locking geometry. Material AISI 304 steel is acceptable for crimping industrial rubber or plastic high-pressure Z-type hose ends (including textile-reinforced or spiral-reinforced suction/pressure hoses) when those dimensional and fit requirements are observed.

Can a Collet type L made of AISI 304 steel reliably crimp Z-type hydraulic hose ends when sleeve L â¤ Lk and matches Dw/Dz?

Yes. a Collet type L made of AISI 304 steel can reliably crimp Z-type hydraulic hose ends provided the specified requirements are met. Key conditions for reliable crimping: - Sleeve type L is intended for high-pressure Z-type hose ends (industrial rubber/plastic hoses with textile reinforcement, possibly spiral). - The sleeve must be selected to match the hose outer diameter Dz and hose inner diameter Dw; these dimensions determine proper fit and compression. - Sleeve length L must not exceed the tail length of the hose end Lk (L â¤ Lk). If L is longer than Lk, the sleeve cannot fully engage the hose tail and a secure crimp is not achievable. - Diameters D1 (external), D2 (internal) and D3 (locking) must correspond to the hose end and fitting specifications to ensure correct deformation and mechanical interlock during crimping. - Material AISI 304 steel is suitable for mechanical strength and corrosion resistance in many applications; however, verify service conditions (temperature, chemical exposure, and pressure ratings) to ensure AISI 304 meets operational requirements. If all listed dimensional matches and L â¤ Lk are satisfied and installation follows recommended crimping procedures, the Collet type L in AISI 304 steel will reliably crimp Z-type hydraulic hose ends.

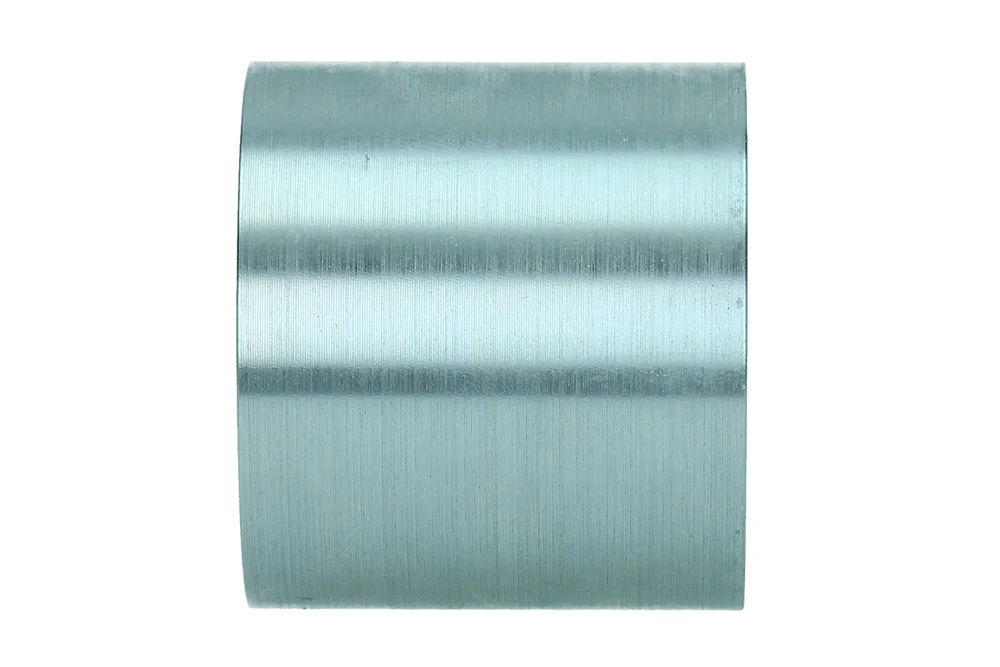

Collet, AISI 304 steel, type L

Additional information

Material	SS – stainless steel

L-type sleeve designed for crimping hydraulic type ends (ends for high-pressure hoses type Z) in industrial hoses (rubber and plastic with textile reinforcement, possibly with a reinforcing spiral – suction and pressure hoses). The sleeve should be selected considering the internal diameter Dw and external diameter Dz of the hose. The length of the sleeve L should not exceed the length of the tail of the end Lk. Diameter D1 [mm] – external diameter. Diameter D2 [mm] – internal diameter. Diameter D3 [mm] – locking diameter. Material: AISI 304 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-L-15-04-SS	L type bushing 15 mm x 1/4", AISI 304	6	-	In stock	Enquiry
TI-L-15-05-SS	L type bushing 15 mm x 5/16", AISI 304	8	-	In stock	Enquiry
TI-L-16-06-SS	L type bushing 16 mm x 3/8", AISI 304	10	-	In stock	Enquiry
TI-L-17-05-SS	L type bushing 17 mm x 5/16", AISI 304	8	-	In stock	Enquiry
TI-L-18-06-SS	L type bushing 18 mm x 3/8", AISI 304	10	-	In stock	Enquiry
TI-L-19-05-SS	L type bushing 19 mm x 5/16", AISI 304	8	-	In stock	Enquiry
TI-L-19-06-SS	L type bushing 19 mm x 3/8", AISI 304	10	-	In stock	Enquiry
TI-L-20-06-SS	L type bushing 20 mm x 3/8", AISI 304	10	-	In stock	Enquiry
TI-L-22-08-SS	L type bushing 22 mm x 1/2", AISI 304	12	-	In stock	Enquiry
TI-L-24-06-SS	L type bushing 24 mm x 3/8", AISI 304	10	-	In stock	Enquiry
TI-L-24-08-SS	L type bushing 24 mm x 1/2", AISI 304	12	-	In stock	Enquiry
TI-L-25-10-SS	L type bushing 25 mm x 5/8", AISI 304	16	-	In stock	Enquiry
TI-L-26-08-SS	L type bushing 26 mm x 1/2", AISI 304	12	-	In stock	Enquiry
TI-L-28-08-SS	L type bushing 28 mm x 1/2", AISI 304	12	-	In stock	Enquiry
TI-L-28-10-SS	L type bushing 28 mm x 5/8", AISI 304	16	-	In stock	Enquiry
TI-L-30-10-SS	L type bushing 30 mm x 5/8", AISI 304	16	-	In stock	Enquiry
TI-L-30-12-SS	L type bushing 30 mm x 3/4", AISI 304	20	-	In stock	Enquiry
TI-L-33-12-SS	L type bushing 33 mm x 3/4", AISI 304	20	-	In stock	Enquiry
TI-L-37-16-SS	L type bushing 37 mm x 1", AISI 304	25	-	In stock	Enquiry
TI-L-39-16-SS	L type bushing 39 mm x 1", AISI 304	25	-	In stock	Enquiry
TI-L-41-16-SS	L type bushing 41 mm x 1", AISI 304	25	-	In stock	Enquiry
TI-L-45-20-SS	L type bushing 45 mm x 1.1/4", AISI 304	32	-	In stock	Enquiry
TI-L-48-20-SS	L type bushing 48 mm x 1.1/4", AISI 304	32	-	In stock	Enquiry
TI-L-50-20-SS	L type bushing 50 mm x 1.1/4", AISI 304	32	-	In stock	Enquiry
TI-L-52-24-SS	L type bushing 52 mm x 1.1/2", AISI 304	38	-	In stock	Enquiry
TI-L-53-20-SS	L type bushing 53 mm x 1.1/4", AISI 304	32	-	In stock	Enquiry
TI-L-54-24-SS	L type bushing 54 mm x 1.1/2", AISI 304	38	-	In stock	Enquiry
TI-L-56-24-SS	Sleeve type L 56 mm x 1.1/2", AISI 304	38	-	In stock	Enquiry
TI-L-58-24-SS	Sleeve type L 58 mm x 1.1/2", AISI 304	38	-	In stock	Enquiry
TI-L-64-32-SS	L type bushing 64 mm x 2", AISI 304	50	-	In stock	Enquiry
TI-L-67-32-SS	L type bushing 67 mm x 2", AISI 304	50	-	In stock	Enquiry
TI-L-70-32-SS	L type bushing 70 mm x 2", AISI 304	50	-	In stock	Enquiry
TI-L-82-40-SS	L type bushing 82 mm x 2.1/2", AISI 304	65	-	In stock	Enquiry
TI-L-96-48-SS	L type bushing 96 mm x 3", AISI 304	80	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

L-type sleeve designed for crimping hydraulic type ends (ends for high-pressure hoses type Z) in industrial hoses (rubber and plastic with textile reinforcement, possibly with a reinforcing spiral – suction and pressure hoses). The sleeve should be selected considering the internal diameter Dw and external diameter Dz of the hose. The length of the sleeve L should not exceed the length of the tail of the end Lk. Diameter D1 [mm] – external diameter. Diameter D2 [mm] – internal diameter. Diameter D3 [mm] – locking diameter. Material: AISI 304 steel.
