What maintenance interval is recommended for the FIL 100 - 200 - 300 compressed air filter, SKILLAIRÂ® series, with end plates, depending on filtration degree and condensate discharge type?

Recommended maintenance interval for the FIL 100 - 200 - 300 compressed air filter, SKILLAIRÂ® series, with end plates depends on filtration degree and condensate discharge type: - For 5 Âµm elements: inspect and service every 1â3 months. - For 20 Âµm elements: inspect and service every 3â6 months. - For 50 Âµm elements: inspect and service every 6â12 months. Adjust intervals shorter if operating conditions are harsh (high particulate load, high humidity, elevated temperature, or pressure near maximum). For condensate discharge type: - Manual discharge: check and drain daily; perform full service at the short end of the intervals above. - Semi-automatic (RMSA): inspect weekly and service per the element-based intervals. - Automatic (SAC, RA): inspect monthly and service per the element-based intervals. Replace filter elements immediately if differential pressure rises significantly or flow is reduced. Always follow site-specific monitoring (pressure drop, condensate volume) to set final maintenance frequency.

What condensate discharge option (manual, RMSA semiâautomatic, SAC, RA automatic) is best for the FIL 100 - 200 - 300 compressed air filter, SKILLAIRÂ® series, with end plates in heavyâduty applications?

For heavyâduty applications the recommended condensate discharge for the FIL 100 - 200 - 300 compressed air filter, SKILLAIRÂ® series, with end plates is an automatic type (RA or SAC). Automatic discharge ensures continuous, reliable removal of condensate under high load and frequent condensate formation, avoids loss of compressed air from manual drains, and reduces maintenance interventions versus RMSA semiâautomatic. Choose RA if simple, robust automatic drainage is required; choose SAC where electronic/level control or optimized cycling is needed for higher duty or precise condensate management.

How does inlet pressure affect the flow rates of the FIL 100 - 200 - 300 compressed air filter, SKILLAIRÂ® series, with end plates?

Inlet pressure directly influences the flow rates of the FIL 100 - 200 - 300 compressed air filter, SKILLAIRÂ® series, with end plates by changing the available pressure differential (Îp) across the filter. The quoted flow rates (2000 l/min for size 100, 3100 l/min for size 200, 5300 l/min for size 300) are given at an inlet pressure of 6 bar with a Îp = 1 bar. - If inlet pressure increases while downstream pressure remains the same, the pressure differential rises and actual flow will increase above the quoted values (up to the limits of supply pressure, max 15 bar depending on model and discharge type). - If inlet pressure decreases, the pressure differential falls and flow rates drop below the stated values. - For a fixed Îp (e.g., 1 bar), higher absolute inlet pressure does not significantly change the flow; the important parameter is the pressure drop across the element. - Operating limits and filtration performance must be respected (max 15 bar, max +50Â°C); condensate discharge type can also affect effective flow and pressure behavior. In practice, expect proportional changes in flow with changes in Îp: increasing Îp raises flow, decreasing Îp reduces flow, within the mechanical and operational limits of the FIL 100 - 200 - 300 compressed air filter, SKILLAIRÂ® series, with end plates.

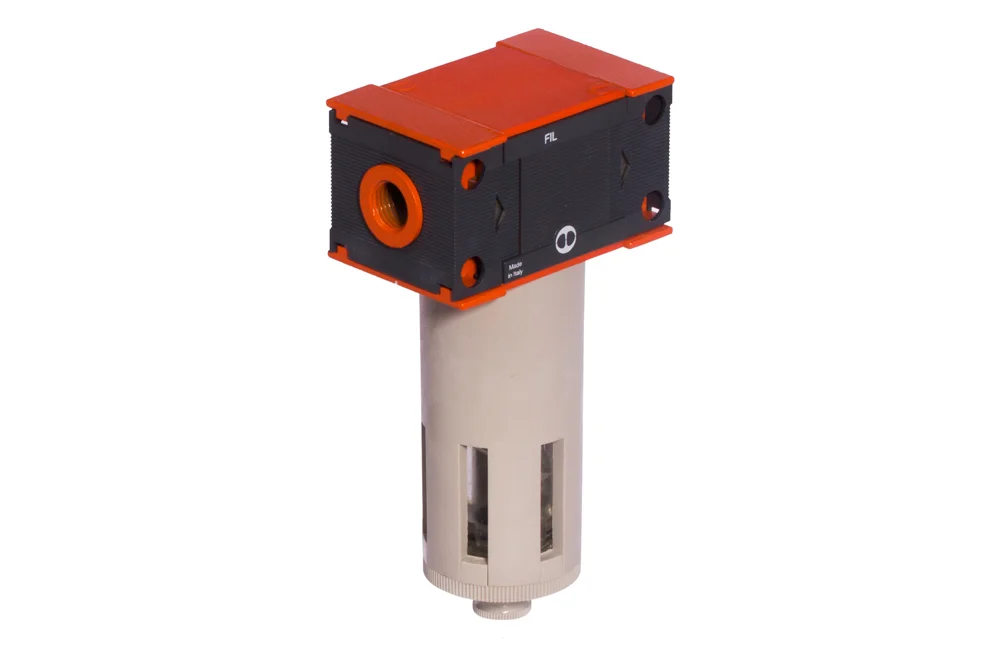

Filter compressed air FIL 100 – 200 – 300, series SKILLAIR®, with plates end

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Standard length [m]	2

Filter FIL series SKILLAIR®, with plates end, serves for accurate removal contaminants liquid and solid, contained in compressed air. size retained contaminants depends od degree filtration the insert filter. Size: 100, 200, 300. Filtration grade: 5 µm, 20 µm, 50 µm. Supply pressure: up to 15 bar, depending on size and kinds trigger. Operating temperature: up to +50°C. Connection: 1/4″ BSP female ÷ 1″. Condensate drain: manual / semi-automatic (RMSA), automatic (SAC, RA). Flow rate: 2000 l/min – size 100, 3100 l/min – size 200, 5300 l/min – size 300 (at an inlet pressure of 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-3280001	Filter FIL 100 1/4 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3280002	Filter FIL 100 1/4 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3280003	Filter FIL 100 1/4 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3280007	Filter FIL 100 1/4 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3280008	Filter FIL 100 1/4 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3280009	Filter FIL 100 1/4 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3380001	Filter FIL 100 3/8 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3380002	Filter FIL 100 3/8 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3380003	Filter FIL 100 3/8 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3380007	Filter FIL 100 3/8 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3380008	Filter FIL 100 3/8 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3380009	Filter FIL 100 3/8 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3480001	Filter FIL 200 1/4 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3480002	Filter FIL 200 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3480003	Filter FIL 200 1/4 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3480007	Filter FIL 200 1/4 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3480008	Filter FIL 200 1/4 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3480009	Filter FIL 200 1/4 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3580001	Filter FIL 200 3/8 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3580002	Filter FIL 200 3/8 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3580003	Filter FIL 200 3/8 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3580007	Filter FIL 200 3/8 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3580008	Filter FIL 200 3/8 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3580009	Filter FIL 200 3/8 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3680001	Filter FIL 200 1/2 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3680002	Filter FIL 200 1/2 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3680003	Filter FIL 200 1/2 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3680004	Filter FIL 200 1/2 5 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-3680005	Filter FIL 200 1/2 20 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-3680007	Filter FIL 200 1/2 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3680008	Filter FIL 200 1/2 20 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3680009	Filter FIL 200 1/2 50 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-4480001	Filter FIL 300 1/2 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4480002	Filter FIL 300 1/2 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4480003	Filter FIL 300 1/2 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4480004	Filter FIL 300 1/2 5 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4480005	Filter FIL 300 1/2 20 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4480006	Filter FIL 300 1/2 50 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4580001	Filter FIL 300 3/4 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4580002	Filter FIL 300 3/4 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4580003	Filter FIL 300 3/4 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4580004	Filter FIL 300 3/4 5 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4580005	Filter FIL 300 3/4 20 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4580006	Filter FIL 300 3/4 50 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4680001	Filter FIL 300 1 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4680002	Filter FIL 300 1 20 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4680003	Filter FIL 300 1 50 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4680004	Filter FIL 300 1 5 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4680005	Filter FIL 300 1 20 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4680006	Filter FIL 300 1 50 RA (SKILLAIR)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Filter FIL series SKILLAIR®, with plates end, serves for accurate removal contaminants liquid and solid, contained in compressed air. size retained contaminants depends od degree filtration the insert filter. Size: 100, 200, 300. Filtration grade: 5 µm, 20 µm, 50 µm. Supply pressure: up to 15 bar, depending on size and kinds trigger. Operating temperature: up to +50°C. Connection: 1/4″ BSP female ÷ 1″. Condensate drain: manual / semi-automatic (RMSA), automatic (SAC, RA). Flow rate: 2000 l/min – size 100, 3100 l/min – size 200, 5300 l/min – size 300 (at an inlet pressure of 6 bar Δp = 1 bar).
