Can the DEP compressed air fine filter, BIT series, with coalescing element be used at inlet pressures up to 13 bar and temperatures up to +50Â°C?

Yes. The DEP compressed air fine filter, BIT series (with coalescing element) is specified for a maximum inlet pressure up to 13 bar and an operating temperature up to +50Â°C, so it can be used under those conditions. Ensure correct sizing and installation (available sizes 1/8" and 1/4"), and verify that recommended flow (200 Nl/min at 6 bar) and condensate drain type (manual or semi-automatic RMSA) meet your system requirements.

Does the DEP compressed air fine filter, BIT series, with coalescing element support manual and RMSA semi-automatic condensate drains?

Yes. The DEP compressed air fine filter, BIT series with coalescing element supports both manual and RMSA semi-automatic condensate drains, as indicated in its specifications.

Is the DEP compressed air fine filter, BIT series, with coalescing element suitable for flows of 200 Nl/min at 6 bar inlet pressure?

Yes. The DEP compressed air fine filter, BIT series, with coalescing element is suitable for flows of 200 Nl/min at 6 bar inlet pressure. The product specification explicitly lists a recommended flow of 200 Nl/min at an inlet pressure of 6 bar, the maximum inlet pressure is up to 13 bar, and operating temperature is up to +50Â°C. Available sizes (1/8", 1/4") and condensate drain options (manual / semi-automatic RMSA) are consistent with use in compressed air systems or near actuating devices. Ensure the chosen port size and drain type match your installation and that ambient/medium conditions do not exceed the stated limits.

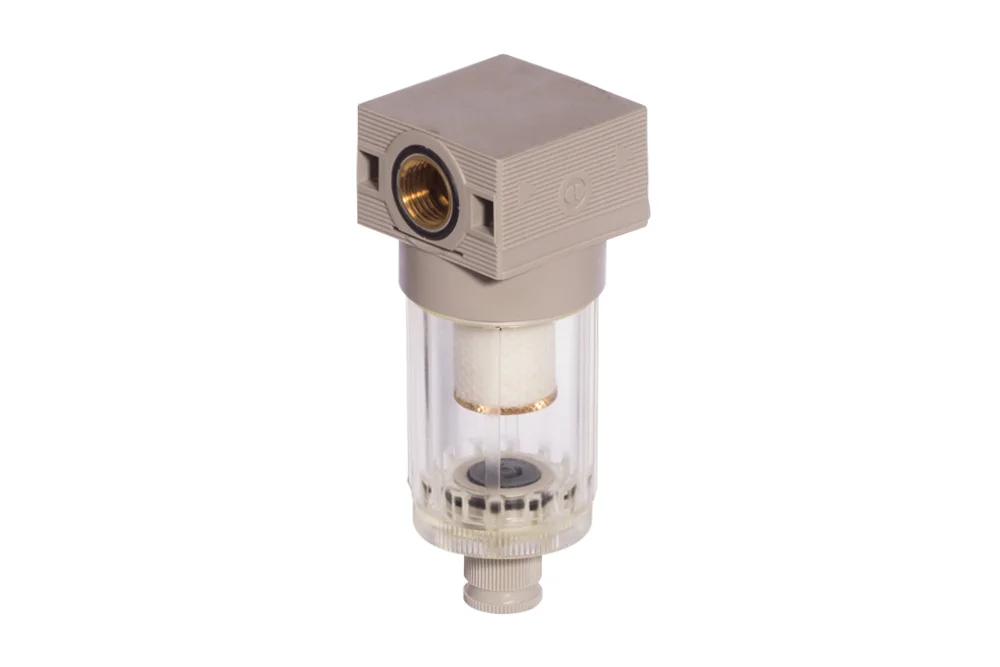

DEP compressed air fine filter, BIT series

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50

DEP BIT series fine filter with coalescing element for compressed air systems or in close proximity to actuating devices. Size: 1/8″, 1/4″. Maximum inlet pressure: up to 13 bar. Operating temperature: up to +50°C. Condensate drain: manual / semi-automatic (RMSA). Recommended flow: 200 Nl/min (at inlet pressure of 6 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-5112001	Precision filter D BIT 1/8 RMSA	-	-	In stock	0 zł		Enquiry
MW-5212001	Precision filter D BIT 1/4 RMSA	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DEP BIT series fine filter with coalescing element for compressed air systems or in close proximity to actuating devices. Size: 1/8″, 1/4″. Maximum inlet pressure: up to 13 bar. Operating temperature: up to +50°C. Condensate drain: manual / semi-automatic (RMSA). Recommended flow: 200 Nl/min (at inlet pressure of 6 bar).
