Is the Connector with UNF GW for quick connect plug type 2KGF, stainless steel, HANSEN BEVERAGE suitable for use up to +130Â°C and 15 bar?

Yes. The Connector with UNF GW for quick connect plug type 2KGF, stainless steel, HANSEN BEVERAGE is suitable for use up to +130Â°C and at 15 bar. The product description specifies a working pressure of 15 bar and an operating temperature up to +130Â°C, and it is made of AISI 303 stainless steel with a 9/16â³-18 UNF internal threaded connection for the 2KGF plug.

Can the Connector with UNF GW for quick connect plug type 2KGF, stainless steel, HANSEN BEVERAGE be fitted with external threading instead of internal?

Yes. The Connector with UNF GW for quick connect plug type 2KGF, stainless steel, HANSEN BEVERAGE is described with an internal 9/16â³-18 UNF connection to mate with the 2KGF plug, and the opposite end can be finished with either internal or external thread. Therefore it can be supplied with external threading instead of internal, while retaining the specified working pressure (15 bar), temperature rating (up to +130Â°C) and material (AISI 303 steel).

Does the Connector with UNF GW for quick connect plug type 2KGF, stainless steel, HANSEN BEVERAGE include seals compatible with food and beverage applications?

Connector with UNF GW for quick connect plug type 2KGF, stainless steel, HANSEN BEVERAGE: Based on the provided description, there is no explicit mention of seals or seal materials. The description details an internal threaded connection 9/16â³-18 UNF to mate with the Hansen Beverage type 2KGF plug, alternative finishing with internal or external thread, working pressure 15 bar, operating temperature up to +130Â°C, and material AISI 303 stainless steel. It does not state whether any seals are included, nor whether any seals (if present) are rated or specified as food- or beverage-compatible (e.g., FDA-compliant EPDM, silicone, or PTFE). Conclusion: The product description does not confirm inclusion of seals compatible with food and beverage applications. For assurance about seal presence and food-grade compatibility, request specification of seal type/material or ask the supplier/manufacturer for certification (e.g., FDA, EU 10/2011) and details on included seals.

Connection with female thread UNF for plug quick coupling type 2KGF, steel stainless, HANSEN BEVERAGE

Additional information

Material	SS – stainless steel

Connection with a thread internal 9/16″-18 UNF enabling connection for plug type 2KGF quick coupling Hansen Beverage. On the other side, terminated with a female or male thread. pressure working: 15 bar. Operating temperature: up to +130°C. Material: steel AISI 303.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
HB-PE2KGF1501	Connection with 1/4" NPT male for plug 2KGF15	-	15	In stock	0 zł		Enquiry

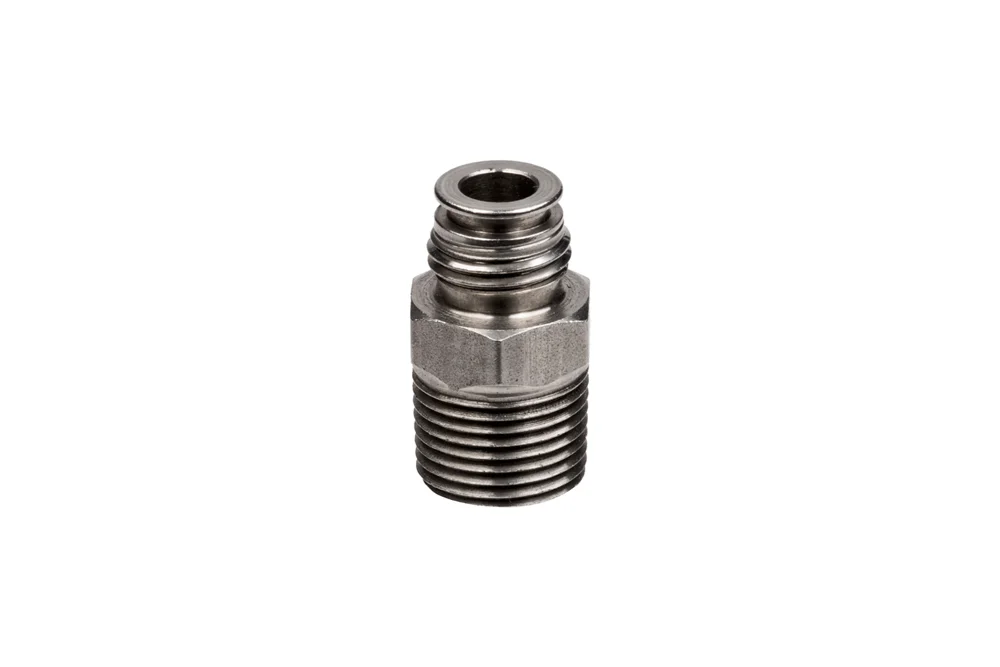

HB-PE2KGF2001	Connection with 3/8" NPT male for plug 2KGF20	-	15	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Connection with a thread internal 9/16″-18 UNF enabling connection for plug type 2KGF quick coupling Hansen Beverage. On the other side, terminated with a female or male thread. pressure working: 15 bar. Operating temperature: up to +130°C. Material: steel AISI 303.
