Is the Connector of the LAUX 42 lever joint, plug-plug, carbon steel, KK2V suitable for use with oils or chemicals, and which seal material should be chosen?

Connector of the LAUX 42 lever joint, plug-plug, carbon steel, KK2V is primarily specified for water and bulk materials; standard seal is EPDM (operating temperature -50Â°C to +120Â°C). EPDM has excellent resistance to hot and cold water, steam, many polar solvents, and dilute acids/alkalis, but poor resistance to most oils, fuels, hydrocarbons and many chemicals (e.g., mineral oils, petrol, aromatic hydrocarbons). Therefore: - For oils, fuels or hydrocarbon-based fluids: EPDM is not suitable. Choose an oil-resistant seal such as NBR (nitrile/Buna-N) for general mineral oils and fuels, or FKM/Viton for higher chemical and temperature resistance and aggressive hydrocarbons. - For aggressive chemicals: select seal material based on the specific chemical compatibility (e.g., PTFE for very aggressive acids/solvents; FKM for many harsh chemicals; EPDM only if the chemical is known compatible). Confirm the exact media, temperature and pressure to pick the correct seal; consult material compatibility charts or the supplier if in doubt.

Can the Connector of the LAUX 42 lever joint, plug-plug, carbon steel, KK2V be used with abrasive or particulate media (e.g., grains, sand), and does seal choice affect wear?

Yes - the Connector of the LAUX 42 lever joint, plug-plug, carbon steel, KK2V can be used with abrasive or particulate media (grains, sand, granulates, cement, minerals) as its description explicitly lists bulk materials and transfer/unloading applications. However, abrasive media will increase wear on seals and internal surfaces. Seal choice matters: the standard EPDM gasket offers good general resistance but may not be optimal for all abrasive or chemically aggressive particulates; harder or more abrasion-resistant materials (e.g., NBR, BunaâN, or specially formulated polyurethane seals) can reduce wear in abrasive applications. Regular inspection and maintenance are recommended; ensure compatibility of chosen seal material with both the particulate and any accompanying liquids, and consider operating conditions (pressure, vacuum, temperature â50Â°C to +120Â°C) when selecting seals.

Can Connector of the LAUX 42 lever joint, plug-plug, carbon steel, KK2V be used for temporary irrigation and construction water installations?

Yes. Connector of the LAUX 42 lever joint, plug-plug, carbon steel, KK2V can be used for temporary irrigation and construction water installations. Its description explicitly lists construction of temporary water installations and irrigation systems among typical applications. Key suitability points: - Material and protection: carbon steel, galvanized. durable for field use. - Sealing: standard EPDM gasket. compatible with water; for other media select appropriate seal material. - Pressure rating: up to 12.5 bar for liquids. sufficient for most irrigation and construction water needs. - Temperature range: -50Â°C to +120Â°C. more than adequate for outdoor water applications. - Additional: vacuum-tight and 8 bar rating for air where relevant. Ensure EPDM is acceptable for any additives or chemicals in the water; if not, choose a compatible gasket material.

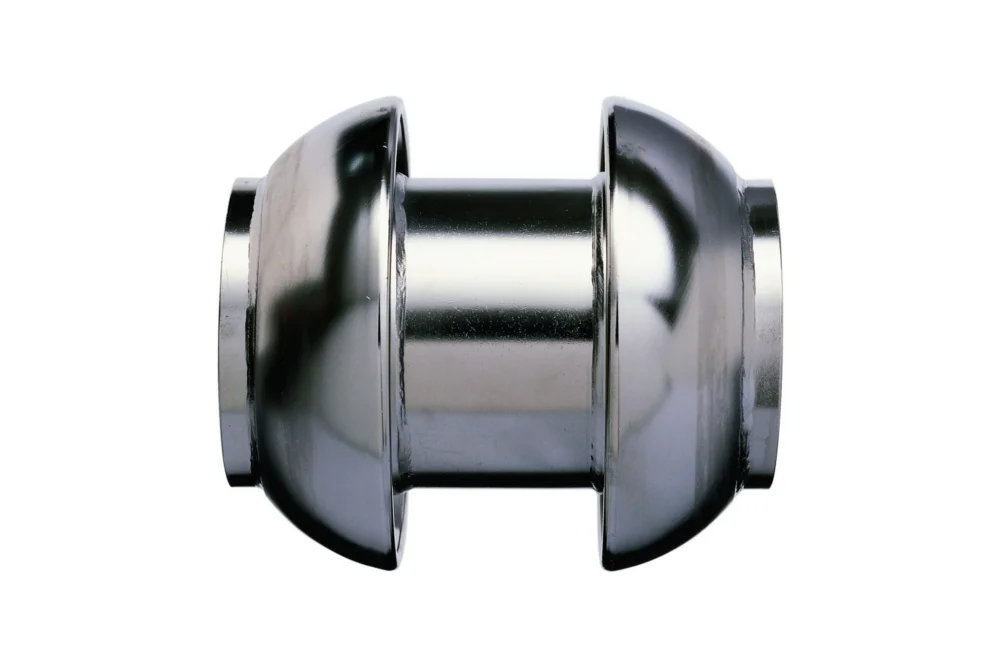

Connector lever coupling LAUX 42 plug-plug, steel carbon, KK2V

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)

Connector lever coupling LAUX 42 plug-plug with wide application np.: for transferring and unloading bulk materials (grain, flour, feed, granulates, cement, minerals), for pressure and vacuum pumps, for building temporary water and air installations in construction, mining and agriculture, and for irrigation systems. When selecting a coupling for a medium other than water, attention should be paid to the correct selection of the gasket material. The standard seal is an EPDM gasket. Material: steel carbon, galvanized. Maximum Working pressure: 12.5 bar (for fluids), 8 bar (for air). Vacuum tightness. Operating temperature: from -50°C to +120°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TF-KK2V-048	Connector KK2V plug-plug 48 mm, galvanized steel	-	12.5	In stock	Enquiry
TF-KK2V-076	Connector KK2V plug-plug 76 mm, galvanized steel	-	12.5	In stock	Enquiry
TF-KK2V-102	Connector KK2V plug-plug 102 mm, galvanized steel	-	12.5	In stock	Enquiry
TF-KK2V-133	Connector KK2V plug-plug 133 mm, galvanized steel	-	12.5	In stock	Enquiry
TF-KK2V-152	Connector KK2V plug-plug 152 mm, galvanized steel	-	12.5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Connector lever coupling LAUX 42 plug-plug with wide application np.: for transferring and unloading bulk materials (grain, flour, feed, granulates, cement, minerals), for pressure and vacuum pumps, for building temporary water and air installations in construction, mining and agriculture, and for irrigation systems. When selecting a coupling for a medium other than water, attention should be paid to the correct selection of the gasket material. The standard seal is an EPDM gasket. Material: steel carbon, galvanized. Maximum Working pressure: 12.5 bar (for fluids), 8 bar (for air). Vacuum tightness. Operating temperature: from -50°C to +120°C.
