Is the Connector of the LAUX lever socket 42 socket-socket, carbon steel, KK2M suitable for use with chemicals, and which gasket material should be chosen?

Connector of the LAUX lever socket 42 socket-socket, carbon steel, KK2M can be used with many fluids, but chemical compatibility depends mainly on the gasket material. The standard gasket is EPDM, which is excellent for water, steam, many alcohols, dilute acids and alkalis, and for general-purpose applications; EPDM is not resistant to most hydrocarbons, oils, fuels, and many organic solvents. For aggressive chemicals or solvents you should choose a gasket material matched to the specific medium and temperature. Typical alternatives: - NBR (Nitrile): good for oils, fuels, hydraulic fluids; limited with strong acids/oxidizers. - FKM / Viton: excellent resistance to oils, fuels, many solvents and high temperatures; limited with some amines and low-molecular-weight esters/ketones. - PTFE (Teflon): outstanding chemical resistance to most acids, alkalis and solvents; best choice for broad chemical compatibility and higher temperatures, but less elastic (may require backing/metal support). - Silicone: good for high/low temperatures and some chemicals but poor with oils/solvents. Check the specific chemicalâs compatibility charts and consider operating temperature (-50Â°C to +120Â°C) and pressure limits (12.5 bar liquids, 8 bar air). For vacuum-tight applications and unknown or aggressive chemicals, PTFE or a certified FKM grade is typically recommended. If in doubt, provide the exact chemical, concentration and temperature for a definitive gasket recommendation.

Can Connector of the LAUX lever socket 42 socket-socket, carbon steel, KK2M be used for food-grade bulk materials like grains and flours?

Connector of the LAUX lever socket 42 socket-socket, carbon steel, KK2M can be used for food-grade bulk materials like grains and flours in terms of mechanical performance (suitable for transport/unloading of grains, flours, feeds; vacuum tight; temperature and pressure ratings adequate). However, suitability for food-grade use depends on gasket material and surface safety: the standard EPDM gasket may be acceptable for many dry foods but is not inherently certified food-grade; carbon steel (galvanized) may pose corrosion or contamination risks and is not stainless food-grade. For true food-grade applications you must specify a food-approved gasket (e.g., FDA/EC-compliant material) and verify surface finish or use stainless steel construction. Without those food-grade materials/certifications, do not assume compliance.

Can Connector of the LAUX lever socket 42 socket-socket, carbon steel, KK2M be used with abrasive materials like cement or minerals?

Yes. Connector of the LAUX lever socket 42 socket-socket, carbon steel, KK2M can be used with abrasive bulk materials such as cement or minerals, provided you take a few precautions. Why itâs suitable: - The product description explicitly lists transport and unloading of bulk materials (including cement and minerals) among typical applications. - Carbon steel construction with galvanization offers good mechanical strength and corrosion resistance for general bulk-handling use. - The coupling is rated for practical pressures (up to 12.5 bar for liquids, 8 bar for air) and holds tightness under vacuum, covering most pneumatic and gravity-fed bulk-handling scenarios. - Wide operating temperature range (-50Â°C to +120Â°C) suits many environments. Important caveats: - Abrasive materials accelerate wear on internal surfaces and seals. Expect faster degradation compared with non-abrasive media. - The standard gasket is EPDM: chemically compatible with many materials but not optimal for all abrasive or chemically aggressive powders. For heavy abrasion or specific chemical exposures, select a more abrasion- and chemical-resistant gasket material (e.g., NBR, FKM or specialized compounds) based on the exact medium. - Ensure proper installation, alignment, and support to minimize abrasive wear and mechanical stress; consider frequent inspection and maintenance intervals in abrasive service. - For pneumatic conveying of abrasives, verify pressure/flow conditions do not exceed the couplingâs limits. Bottom line: Connector of the LAUX lever socket 42 socket-socket, carbon steel, KK2M is suitable for cement and mineral bulk handling, but choose an appropriate gasket material and plan for increased wear and regular maintenance when used with abrasive media.

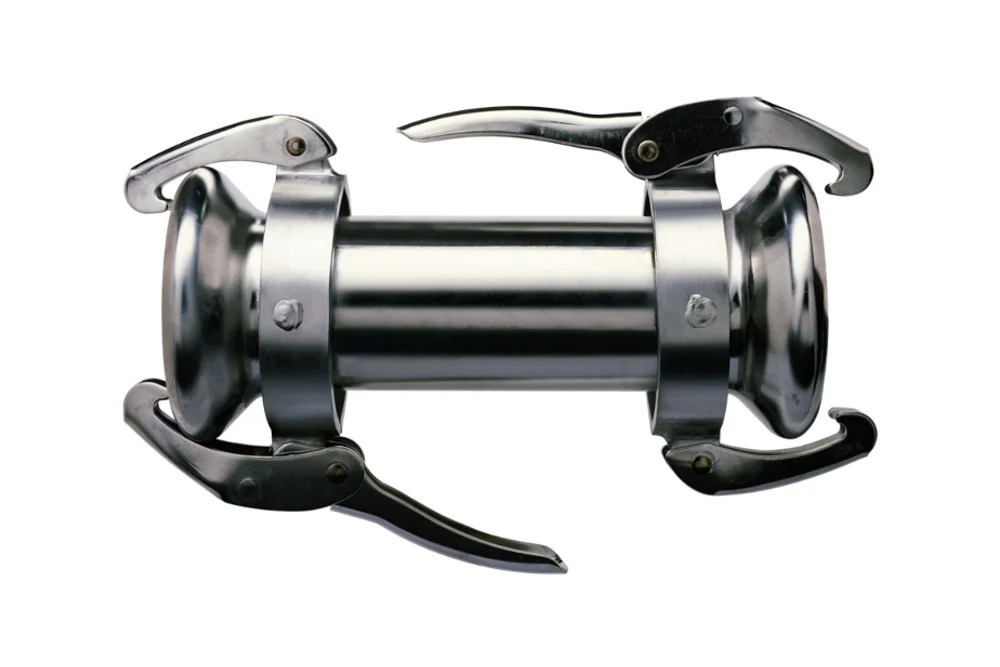

Connector of the LAUX lever socket 42 socket-socket, carbon steel, KK2M

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)

Connector for LAUX lever coupling 42 socket-socket with wide applications, e.g.: for the transport and unloading of bulk materials (grains, flours, feeds, granulates, cement, minerals), for pressure and vacuum pumps, for the construction of temporary water and air installations in construction, mining, agriculture, for irrigation systems. When selecting a coupling for a medium other than water, attention should be paid to the correct selection of gasket material. The standard sealing is an EPDM gasket. Material: carbon steel, galvanized. Maximum working pressure: 12.5 bar (for liquids), 8 bar (for air). Tightness under vacuum. Operating temperature: from -50°C to +120°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TF-KK2M-048	KK2M connector socket-socket 48 mm, galvanized steel.	-	12.5	In stock	Enquiry
TF-KK2M-076	KK2M connector socket-socket 76 mm, galvanized steel.	-	12.5	In stock	Enquiry
TF-KK2M-102	KK2M connector socket-socket 102 mm, galvanized steel.	-	12.5	In stock	Enquiry
TF-KK2M-133	KK2M connector socket-socket 133 mm, galvanized steel.	-	12.5	In stock	Enquiry
TF-KK2M-152	KK2M connector socket-socket 152 mm, galvanized steel.	-	12.5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Connector for LAUX lever coupling 42 socket-socket with wide applications, e.g.: for the transport and unloading of bulk materials (grains, flours, feeds, granulates, cement, minerals), for pressure and vacuum pumps, for the construction of temporary water and air installations in construction, mining, agriculture, for irrigation systems. When selecting a coupling for a medium other than water, attention should be paid to the correct selection of gasket material. The standard sealing is an EPDM gasket. Material: carbon steel, galvanized. Maximum working pressure: 12.5 bar (for liquids), 8 bar (for air). Tightness under vacuum. Operating temperature: from -50°C to +120°C.
