Which mounting screw sizes are required for the Bottom angle plate for DIN 3015 standard clamp for size groups 0â6 and what are torque recommendations?

Bottom angle plate for DIN 3015 standard clamp Format Required mounting screw sizes: - Size group 0: one screw. Use M6 (preferred) or equivalent diameter machine screw suitable for the plate material and clamp loading. - Size groups 1â6: two screws. Use M8 for groups 1â3 and M10 for groups 4â6 (standard practice; select according to pipe/clamp load and installation guidelines). Material considerations: - For galvanized carbon steel plate, use zinc-compatible fasteners (galvanized or zinc-plated) to minimize galvanic corrosion. - For AISI 316L plate, use AISI 316 or 316L stainless steel fasteners. Recommended tightening torques (recommended values; verify against fastener manufacturer and application specifics): - M6: 8â10 Nm - M8: 20â25 Nm - M10: 35â45 Nm Notes: - Torque values assume lubricated standard property-class 8.8 (carbon steel) or equivalent stainless fasteners; adjust if using different grade or dry threads. - Ensure proper washer use and contact surface cleanliness. If precise clamp preload or pipe support specs exist, follow those.

What are the recommended corrosion protection options for the Bottom angle plate for DIN 3015 standard clamp?

Bottom angle plate for DIN 3015 standard clamp - recommended corrosion protection options: - Hot-dip galvanizing (zinc coating) on carbon steel: economical, good for general indoor/outdoor use and moderate industrial environments. - Electro-galvanizing with passivation: thinner zinc layer than hot-dip; suitable for light corrosion exposure and aesthetic requirements. - Epoxy or polymer coating over galvanized carbon steel: adds chemical and abrasion resistance for harsher environments. - AISI 316L stainless steel: highest corrosion resistance (chlorides, marine, aggressive chemicals) and maintenance-free in most corrosive conditions. - Additional sacrificial protection (zinc anodes) or cathodic protection where severe corrosion risk exists. Choose based on environment (indoor, outdoor, marine, chemical exposure), required lifetime and budget.

How does the Bottom angle plate for DIN 3015 standard clamp accommodate differing hole counts across size groups 0â6?

Bottom angle plate for DIN 3015 standard clamp Format accommodates differing hole counts across size groups by providing configuration specific to the clamp size: for size group 0 the plate includes a single hole for one screw, while for size groups 1 through 6 the plate is drilled with two holes to accept two screws. This variation ensures proper attachment strength and alignment appropriate to the mechanical loads and pipe/clamp dimensions of each size group. The plates are produced in carbon steel (galvanized) or AISI 316L stainless steel to suit corrosion and strength requirements.

Bottom angle plate for DIN 3015 standard clamp

All products, Clamps for hydraulic pipes/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

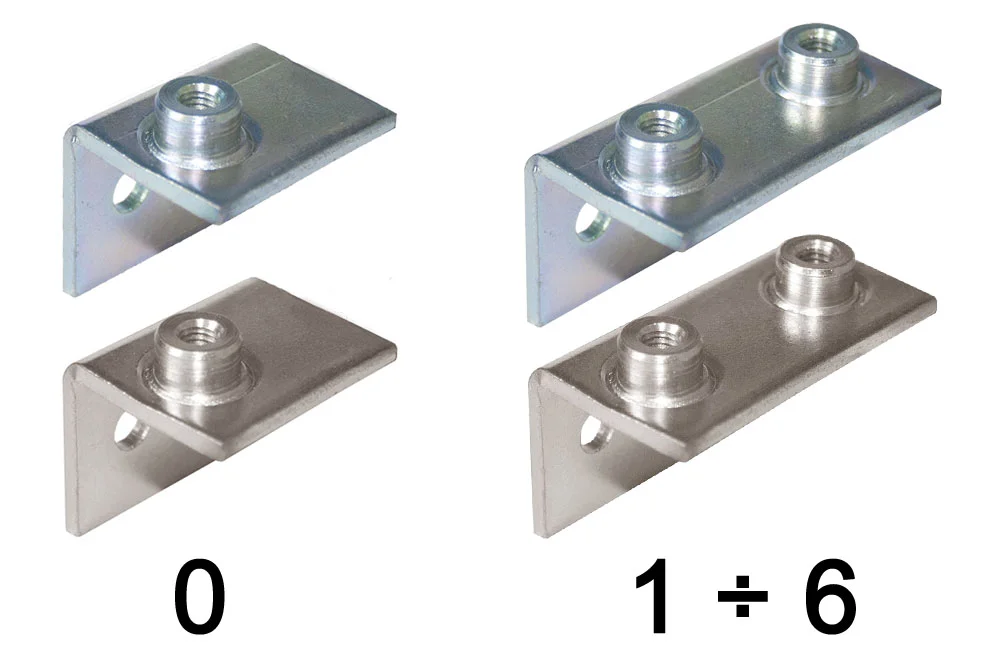

Corner lower plate for mounting DIN 3015 standard clamp type 100/101. For size group 0, there is one hole for a screw. For size group 1 to 6, there are two holes for screws. Material: carbon steel, galvanized or AISI 316L steel.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TC-APINL-0	Standard thickness 0 angular lower plate.	-	-
TC-APINL-0-SS	Bottom corner plate, standard thickness 0, AISI 316L	-	-
TC-APINL-1	Standard thickness 1 angular lower plate	-	-
TC-APINL-1-SS	Corner bottom plate standard thickness 1, AISI 316L	-	-
TC-APINL-2	Standard thickness 2 angular lower plate	-	-
TC-APINL-2-SS	Corner bottom plate, standard thickness 2, AISI 316L	-	-
TC-APINL-3	Standard thickness 3 angular lower plate	-	-
TC-APINL-3-SS	Corner bottom plate, standard thickness 3, AISI 316L	-	-
TC-APINL-4	Standard 4 mm thick corner bottom plate	-	-
TC-APINL-4-SS	Bottom corner plate standard thickness 4, AISI 316L	-	-
TC-APINL-5	Standard thickness 5 angular lower plate	-	-
TC-APINL-5-SS	Corner bottom plate, standard thickness 5, AISI 316L	-	-
TC-APINL-6	Standard 6 mm thick corner bottom plate	-	-
TC-APINL-6-SS	Corner bottom plate, standard thickness 6, AISI 316L	-	-

Corner lower plate for mounting DIN 3015 standard clamp type 100/101. For size group 0, there is one hole for a screw. For size group 1 to 6, there are two holes for screws. Material: carbon steel, galvanized or AISI 316L steel.
