Can DIN 3015 standard clamp polypropylene type 101 be used in marine environments and withstand saltwater exposure long-term?

DIN 3015 standard clamp, polypropylene, type 101 Format can be used in marine environments but has limitations for longâterm saltwater exposure. Reasons supporting use: - The product description explicitly states suitability for marine installations. - Polypropylene body is corrosionâresistant and chemically stable in seawater, so the plastic clamp element will not corrode. - Operating temperature range (â30 Â°C to +90 Â°C) covers typical marine conditions. Limitations and caveats: - Fasteners and plates are galvanized steel; base is carbon steel. Galvanized and carbon steels are susceptible to longâterm corrosion in seawater and splash zones unless given additional protection (thicker galvanizing, protective coatings, cathodic protection, or use of stainless/duplex steels). - Welded mounting to carbon steel structures in a marine atmosphere risks undercutting and corrosion at welds and interfaces. - Mechanical integrity of the polypropylene under continuous UV, repeated thermal cycling, or mechanical load in a splash/spray environment should be verified for the specific application and exposure class. - Galvanized coatings can suffer accelerated corrosion in chloride environments; bolted options or stainless fasteners/plates are recommended for long service life. Recommendation: For shortâtoâmedium term or sheltered marine locations the clamp may perform acceptably. For longâterm, exposed saltwater service, specify corrosionâresistant metal parts (stainless or duplex steel), stainless fasteners, or additional protective measures and consult TUBES INTERNATIONALÂ® for validated marine configurations and material options.

Is DIN 3015 standard clamp polypropylene type 101 suitable for use in petrochemical plants with occasional hydrocarbon exposure?

DIN 3015 standard clamp, polypropylene, type 101 is NOT recommended for petrochemical plants with occasional hydrocarbon exposure. Polypropylene has limited chemical resistance to many hydrocarbons (especially aromatics, chlorinated solvents and fuels) and can swell, soften or crack over time. The clampâs base is carbon steel and screws/plates are galvanized steel-metals are prone to corrosion in hydrocarbon-contaminated or aggressive environments unless protected or specified as corrosion-resistant. Operating temperature range (â30Â°C to +90Â°C) may be acceptable, but chemical compatibility and long-term durability with hydrocarbons are questionable. For petrochemical applications, choose clamps made of certified hydrocarbon-resistant plastics (e.g., PTFE/PEEK) or stainless/corrosion-resistant metals and verify material compatibility with the specific hydrocarbons and service conditions.

Can DIN 3015 standard clamp, polypropylene, type 101 be welded to stainless steel structures without affecting corrosion resistance?

DIN 3015 standard clamp, polypropylene, type 101 cannot be welded directly to stainless steel structures in a way that involves fusion welding of the plastic clamp to the metal without degrading the plastic. Polypropylene (PP) is a thermoplastic that melts at relatively low temperatures (approx. 160â170 Â°C) and will be damaged, deformed or burned by welding processes used for stainless steel (MIG/TIG, arc welding), which reach temperatures far above PPâs melting point. Welding the carbon-steel base or other metal parts of the clamp to stainless steel structures may be possible, but has important caveats: - Clamp construction: the described clamp has metal base/plates/screws (base and plates: carbon steel; screws/plates: galvanized steel). If the âweldâ refers to joining those metal parts to the stainless steel structure, appropriate welding procedures must be used for dissimilar metals (carbon/galvanized steel to stainless steel), with attention to metallurgical compatibility, filler material, pre/post treatment and corrosion consequences. - Galvanized components: welding galvanized steel releases toxic zinc fumes and produces brittle welds and potential cracking; generally not recommended to weld galvanized parts directly to stainless without stripping the zinc and using proper procedures. - Corrosion risk: welding carbon or galvanized steel components directly to stainless steel can create galvanic couples and local corrosion if protective coatings are removed or dissimilar metals are in contact in corrosive environments (especially marine). Heat-affected zones and iron contamination of stainless surfaces can reduce stainless corrosion resistance unless cleaned and passivated after welding. - Plastic integrity: any welding process that applies heat near the polypropylene body risks melting or deforming the clamp; even local heating from hot weld spatter may damage PP. Mechanical fastening (bolting) or mounting on a rail is the recommended mounting method where the polypropylene must remain intact. - Recommended approaches: - Use the bolt/rail mounting option supplied with the clamp to avoid heat damage. - If a welded connection is required, weld the stainless structure to a compatible metal adapter plate (stainless or suitably treated steel) and mechanically fasten the clamp to that plate, keeping heat and spatter away from PP. - If welding metal parts of the clamp is unavoidable, consult the manufacturer (TUBES INTERNATIONALÂ®) for approved procedures, and ensure removal of galvanizing, appropriate filler metals, corrosion protection, and post-weld cleaning/passivation of stainless surfaces. - Consider replacing carbon/galvanized base parts with stainless-steel variants if long-term corrosion resistance in marine environments is critical. Conclusion: Do not weld the polypropylene clamp body directly to stainless steel. Use bolting/rail mounting or attach via a welded-compatible metal adapter and follow proper welding and corrosion-control procedures to avoid compromising stainless steel corrosion resistance.

A clamp DIN 3015 standard, polypropylene, type 101

All products, Clamps for hydraulic pipes/

Additional information

Material	P – material (plastic)

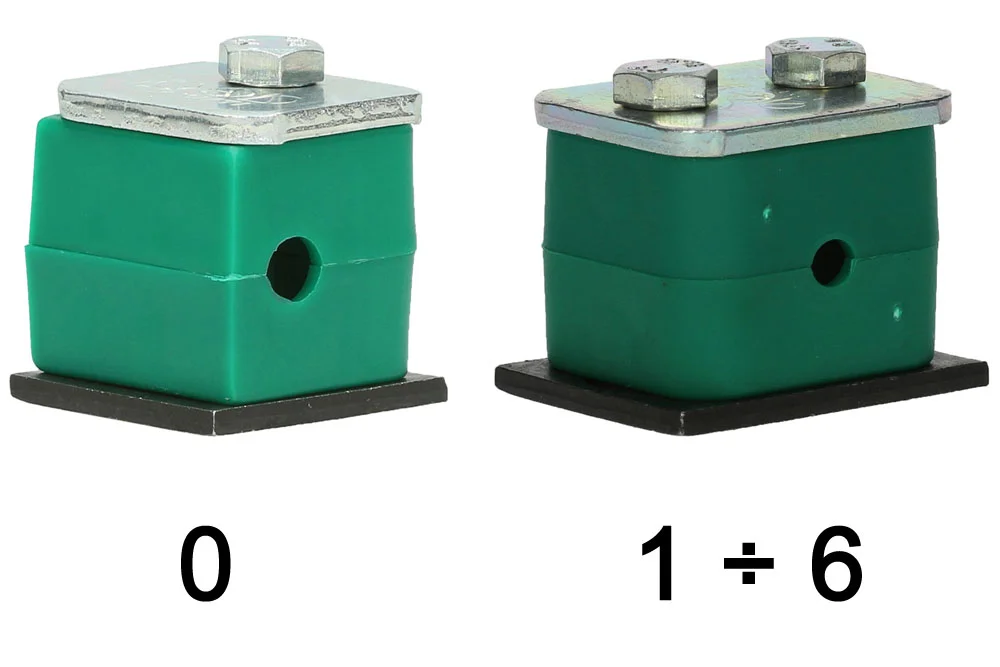

A DIN 3015 standard clamp, type 101 (with a top plate) intended for quick, easy, durable and aesthetic mounting of pipes, cables and hoses in various branches of industry, in above-ground and marine installations. Made in accordance with the DIN 3015 standard. The clamp is mounted to the structure by welding the clamp base (it is also possible to bolt it on or mount it on a rail). As standard, the clamp has a profiled (grooved) surface of the pipe hole. A clamp with a smooth hole surface is also available, intended for hoses and cables, marked with the letter H at the end of the index code. For dimension group 0 there is one bolt with a hexagonal head, for dimension groups 1 ÷ 6 there are two bolts with a hexagonal head. In addition to the standard metal element, you can order: extension plates, rails and bolts for mounting clamp sets. The selection of element should be consulted with TUBES INTERNATIONAL®. Material clamp: green polypropylene. Material bolts: steel galvanized. Material plate: steel galvanized. Material base: steel carbon. Operating temperature: from -30°C to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-PP101-006	Clamp DIN3015 standard PP for a 6 mm pipe	-	-	In stock	Enquiry
TC-PP101-008	Clamp DIN3015 standard PP for a 8 mm pipe	-	-	In stock	Enquiry
TC-PP101-010	Clamp DIN3015 standard PP for a 10 mm pipe	-	-	In stock	Enquiry
TC-PP101-012	Clamp DIN3015 standard PP for a 12 mm pipe	-	-	In stock	Enquiry
TC-PP101-106	Clamp DIN3015 standard PP for a 6 mm pipe	-	-	In stock	Enquiry
TC-PP101-106,4	Clamp DIN3015 standard PP for a 6.4 mm pipe	-	-	In stock	Enquiry
TC-PP101-108	Clamp DIN3015 standard PP for a 8 mm pipe	-	-	In stock	Enquiry
TC-PP101-108-SS	Clamp DIN3015 standard PP for a 8 mm pipe, AISI 316L/304	-	-	In stock	Enquiry
TC-PP101-109,5	Clamp DIN3015 standard PP for a 9.5 mm pipe	-	-	In stock	Enquiry
TC-PP101-110	Clamp DIN3015 standard PP for a 10 mm pipe	-	-	In stock	Enquiry
TC-PP101-112	Clamp DIN3015 standard PP for a 12 mm pipe	-	-	In stock	Enquiry
TC-PP101-112H	Clamp DIN3015 standard PP smooth for a 12 mm pipe	-	-	In stock	Enquiry
TC-PP101-212,7	Clamp DIN3015 standard PP for a 12.7 mm pipe	-	-	In stock	Enquiry
TC-PP101-213,5	Clamp DIN3015 standard PP for a 13.5 mm pipe	-	-	In stock	Enquiry
TC-PP101-214	Clamp DIN3015 standard PP for a 14 mm pipe	-	-	In stock	Enquiry
TC-PP101-215	Clamp DIN3015 standard PP for a 15 mm pipe	-	-	In stock	Enquiry
TC-PP101-216	Clamp DIN3015 standard PP for a 16 mm pipe	-	-	In stock	Enquiry
TC-PP101-217,2	Clamp DIN3015 standard PP for a 17.2 mm pipe	-	-	In stock	Enquiry
TC-PP101-218	Clamp DIN3015 standard PP for a 18 mm pipe	-	-	In stock	Enquiry
TC-PP101-218-SS	Clamp DIN3015 standard PP for a 18 mm pipe, AISI 316L/304	-	-	In stock	Enquiry
TC-PP101-219	Clamp DIN3015 standard PP for a 19 mm pipe	-	-	In stock	Enquiry
TC-PP101-319	Clamp DIN3015 standard PP for a 19 mm pipe	-	-	In stock	Enquiry
TC-PP101-320	Clamp DIN3015 standard PP for a 20 mm pipe	-	-	In stock	Enquiry
TC-PP101-320H	Clamp DIN3015 standard PP smooth for a 20 mm pipe	-	-	In stock	Enquiry
TC-PP101-321,3	Clamp DIN3015 standard PP for a 21.3 mm pipe	-	-	In stock	Enquiry
TC-PP101-322	Clamp DIN3015 standard PP for a 22 mm pipe	-	-	In stock	Enquiry
TC-PP101-325	Clamp DIN3015 standard PP for a 25 mm pipe	-	-	In stock	Enquiry
TC-PP101-325,4	Clamp DIN3015 standard PP for a 25.4 mm pipe	-	-	In stock	Enquiry
TC-PP101-325H	Clamp DIN3015 standard PP smooth for a 25 mm pipe	-	-	In stock	Enquiry
TC-PP101-426,9	Clamp DIN3015 standard PP for a 26.9 mm pipe	-	-	In stock	Enquiry
TC-PP101-428	Clamp DIN3015 standard PP for a 28 mm pipe	-	-	In stock	Enquiry
TC-PP101-430	Clamp DIN3015 standard PP for a 30 mm pipe	-	-	In stock	Enquiry
TC-PP101-432	Clamp DIN3015 standard PP for a 32 mm pipe	-	-	In stock	Enquiry
TC-PP101-532	Clamp DIN3015 standard PP for a 32 mm pipe	-	-	In stock	Enquiry
TC-PP101-533,7	Clamp DIN3015 standard PP for a 33.7 mm pipe	-	-	In stock	Enquiry
TC-PP101-533,7H	Clamp DIN3015 standard PP smooth for a 33.7 mm pipe	-	-	In stock	Enquiry
TC-PP101-535	Clamp DIN3015 standard PP for a 35 mm pipe	-	-	In stock	Enquiry
TC-PP101-538	Clamp DIN3015 standard PP for a 38 mm pipe	-	-	In stock	Enquiry
TC-PP101-538H	Clamp DIN3015 standard PP smooth for a 38 mm pipe	-	-	In stock	Enquiry
TC-PP101-540	Clamp DIN3015 standard PP for a 40 mm pipe	-	-	In stock	Enquiry
TC-PP101-542	Clamp DIN3015 standard PP for a 42 mm pipe	-	-	In stock	Enquiry
TC-PP101-542,4	Clamp DIN3015 standard PP for a 42.4 mm pipe	-	-	In stock	Enquiry
TC-PP101-545	Clamp DIN3015 standard PP for a 45 mm pipe	-	-	In stock	Enquiry
TC-PP101-644,5	Clamp DIN3015 standard PP for a 44.5 mm pipe	-	-	In stock	Enquiry
TC-PP101-648,3	Clamp DIN3015 standard PP for a 48.3 mm pipe	-	-	In stock	Enquiry
TC-PP101-650,8	Clamp DIN3015 standard PP for a 50.8 mm pipe	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A DIN 3015 standard clamp, type 101 (with a top plate) intended for quick, easy, durable and aesthetic mounting of pipes, cables and hoses in various branches of industry, in above-ground and marine installations. Made in accordance with the DIN 3015 standard. The clamp is mounted to the structure by welding the clamp base (it is also possible to bolt it on or mount it on a rail). As standard, the clamp has a profiled (grooved) surface of the pipe hole. A clamp with a smooth hole surface is also available, intended for hoses and cables, marked with the letter H at the end of the index code. For dimension group 0 there is one bolt with a hexagonal head, for dimension groups 1 ÷ 6 there are two bolts with a hexagonal head. In addition to the standard metal element, you can order: extension plates, rails and bolts for mounting clamp sets. The selection of element should be consulted with TUBES INTERNATIONAL®. Material clamp: green polypropylene. Material bolts: steel galvanized. Material plate: steel galvanized. Material base: steel carbon. Operating temperature: from -30°C to +90°C.
