Is the DIN quick coupling socket for agricultural machinery with GW, type PDV1 suitable for hydraulic oil up to 400 bar and compatible with ISO-A/ISO-B dimensions?

Yes. The DIN quick coupling socket for agricultural machinery with GW, type PDV1 is suitable for hydraulic oil service and can operate at working pressures up to 400 bar (depending on the coupling size). It is manufactured from galvanized steel with NBR seals (temperature range â25 Â°C to +100 Â°C), making it appropriate for typical hydraulic oils. Note that its dimensions differ from both ISOâA and ISOâB standards, so it is not directly dimensionally compatible with ISOâA/ISOâB couplings; verify mating parts or use appropriate adapters.

Does the DIN quick coupling socket for agricultural machinery with GW, type PDV1 use NBR seals rated -25Â°C to +100Â°C for hydraulic oil applications?

Yes. The DIN quick coupling socket for agricultural machinery with GW, type PDV1 uses NBR seals rated from -25Â°C to +100Â°C for hydraulic oil applications, per the provided specification.

Can the DIN quick coupling socket for agricultural machinery with GW, type PDV1 handle flow rates specified at Îp = 3 bar?

Yes. the DIN quick coupling socket for agricultural machinery with GW, type PDV1 can handle flow rates specified at Îp = 3 bar, provided the value quoted refers to the coupling size in question. The product description explicitly states that flow rate is "provided at Îp = 3 bar [l/min]" and the working pressure rating (up to 400 bar depending on coupling size) and materials (galvanized steel with NBR seals) are compatible with typical hydraulic oil service. Ensure you use the flow figure that matches the exact PDV1 coupling dimension you select, and confirm temperature and fluid compatibility with NBR seals (â25Â°C to +100Â°C).

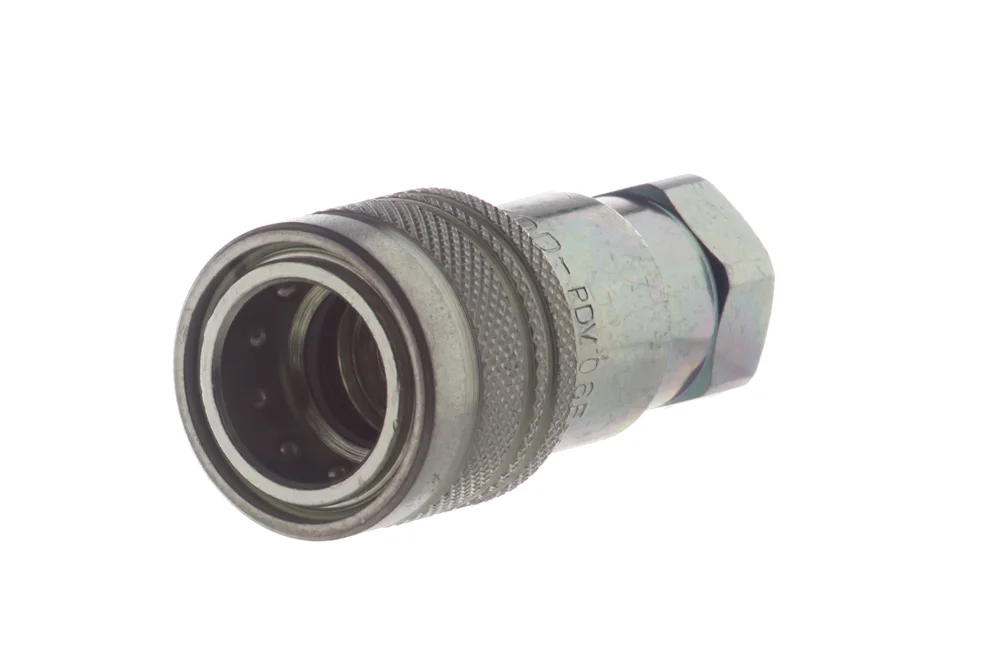

DIN quick coupling socket for agricultural machinery with GW, type PDV1

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 2, 4

Standard quick coupling socket DIN with internal BSP thread. Mainly used in agricultural machinery. Different dimensions from both ISO-A and ISO-B. Standard: manufacturer standard. Applications: hydraulic power (hydraulic oil). Working pressure: up to 400 bar (depending on coupling size). Material: galvanized steel. Sealing: NBR (from -25°C to +100°C). Flow rate provided at Δp = 3 bar [l/min].

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DP-PDV1-0606002	PDV1 DN6 socket with 1/4" BSP thread, nitrile seal	-	400	In stock	Enquiry
DP-PDV1-1010002	PDV1 DN10 socket with 3/8" BSP female thread, nitrile seal	-	350	In stock	Enquiry
DP-PDV1-2019002	PDV1 DN19 socket with 3/4" BSP thread, nitrile seal	-	250	In stock	Enquiry
DP-PDV1-2525002	PDV1 DN25 socket with 1" BSP female thread, nitrile seal	-	250	In stock	Enquiry
DP-PDV1-3031002	PDV1 DN30 socket with 1.1/4" BSP thread, nitrile seal	-	220	In stock	Enquiry
DP-PDV1-3939002	PDV1 DN40 socket with 1.1/2" BSP thread, nitrile seal	-	200	In stock	Enquiry
DP-PDV1-5051002	PDV1 socket DN50 with 2" BSP thread, nitrile seal	-	100	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard quick coupling socket DIN with internal BSP thread. Mainly used in agricultural machinery. Different dimensions from both ISO-A and ISO-B. Standard: manufacturer standard. Applications: hydraulic power (hydraulic oil). Working pressure: up to 400 bar (depending on coupling size). Material: galvanized steel. Sealing: NBR (from -25°C to +100°C). Flow rate provided at Δp = 3 bar [l/min].
