Is the Plug DN 6 quick connector with male thread, TST 060 series, brass suitable for steam up to 200Â°C and 25 bar working pressure?

Yes. The Plug DN 6 quick connector with male thread, TST 060 series, brass is suitable for steam up to 200Â°C and 25 bar working pressure. The product description explicitly lists steam among compatible media, specifies a working pressure of 25 bar and an operating temperature range up to +200Â°C (with Viton), and notes brass construction (body and valve) with stainless steel spring.matching the conditions you stated. Ensure compatible sealing material (Viton) and proper installation for safe operation at these limits.

Can the Plug DN 6 quick connector with male thread, TST 060 series, brass be used for hot oil applications up to 200Â°C?

Yes. The Plug DN 6 quick connector with male thread, TST 060 series, brass can be used for hot oil applications up to 200Â°C. The product description explicitly lists hot oil and steam as suitable media and states an operating temperature range of -20Â°C to +200Â°C when equipped with Viton seals. Ensure the connectorâs Viton sealing is specified/installed and that system pressure does not exceed the 25 bar working pressure. For prolonged or aggressive oil types, verify chemical compatibility with Viton and confirm installation follows manufacturer guidelines.

Can the Plug DN 6 quick connector with male thread, TST 060 series, brass be used for potable water and food-industry cleaning?

Plug DN 6 quick connector with male thread, TST 060 series, brass. based on the provided description. can be used for potable water and foodâindustry cleaning with caution and subject to verification of compliance. Key points from the description: - Materials: brass body and valve, stainless steel spring, Viton (FKM) sealing option. - Media listed: water (including cleaning machines), hot oil, steam. - Temperature range: -20Â°C to +200Â°C (with Viton). - Working pressure: 25 bar. Considerations for potable water and foodâindustry cleaning: 1. Material suitability: Brass often contains lead and other alloys that may not meet potable water or foodâcontact regulations unless specified as dezincificationâresistant (DZR) or leadâfree (e.g., â¤0.25% lead). Stainless steel spring is generally acceptable; however, contact with water depends on overall assembly. 2. Seals: Viton is chemically resistant and heat tolerant but is not always approved for direct food contact. Foodâgrade elastomers (e.g., EPDM certified for potable water, FDAâcompliant materials, or silicone) are typically required for food processing and potable water applications. 3. Certification: For potable water and foodâindustry cleaning you need relevant certifications/approvals (e.g., NSF/ANSI 61 or local potable water approval, EU Regulation 1935/2004, FDA 21 CFR for food contact, WRAS, ACS) and documentation from the manufacturer that this specific TST 060 brass variant meets them. 4. Corrosion and dezincification: In some water chemistries, ordinary brass can dezincify, causing contamination and leaks. DZR or suitable protective coatings/grades are recommended for longevity and safety. Conclusion/recommendation: Plug DN 6 quick connector with male thread, TST 060 series, brass can handle water, steam and high temperatures per its specs, but it is not possible to confirm safe use for potable water or foodâindustry cleaning without manufacturer confirmation of alloy composition (lead content/DZR), seal material certification (foodâgrade), and applicable potable/food contact approvals. Request from the supplier: material certificates, seal material certification (FDA/EC/NSF as applicable), and any potable/food contact approvals before using in those applications.

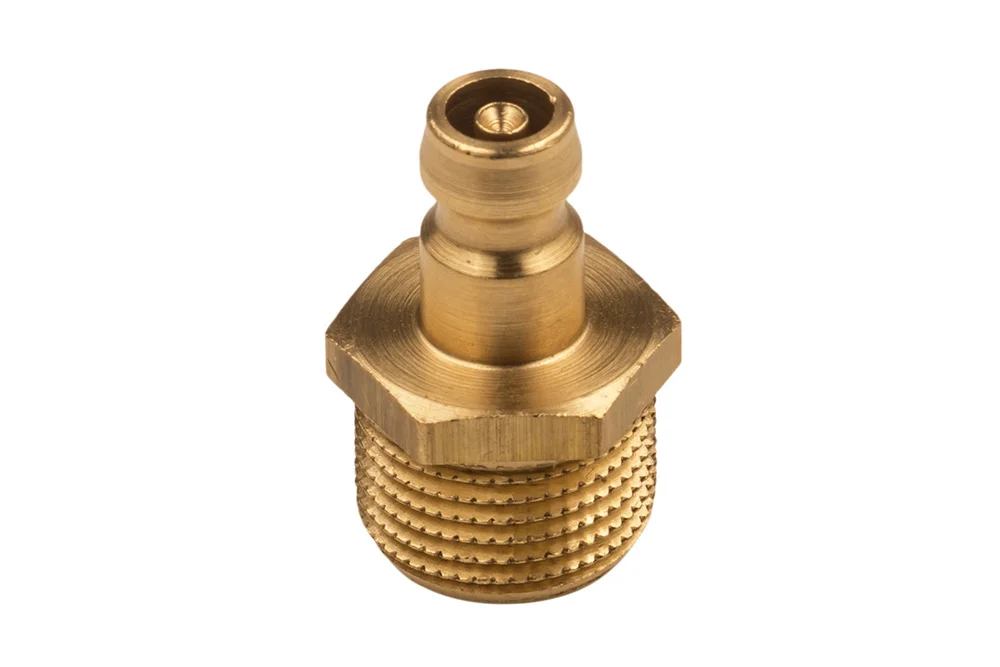

Plug DN 6 quick connector with male thread, TST 060 series, brass

Additional information

Material	B – brass (bronze)

DN 6 quick coupling plug with external BSP and metric thread, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 6 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (Viton). Material: brass (plug body, valve), stainless steel (spring).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-060-EU10	DN 6 plug with GZ 1/8" BSP, without valve	-	25	In stock	Enquiry
FW-060-EU13	DN 6 plug with 1/4" BSP female thread, without valve	-	25	In stock	Enquiry
FW-060-EU17	DN 6 plug with GZ 3/8" BSP, without valve	-	25	In stock	Enquiry
FW-060-EUB13	DN 6 plug with 1/4" BSP female thread, with valve	-	25	In stock	Enquiry
FW-060-EUB17	DN 6 plug with GZ 3/8" BSP, with valve	-	25	In stock	Enquiry
FW-060-EUBM14	Plug DN 6 with GZ M14x1.5, with valve	-	25	In stock	Enquiry
FW-060-EUM10	Plug DN 6 with GZ M10x1, without valve	-	25	In stock	Enquiry
FW-060-EUM10-1,5	Plug DN 6 with GZ M10x1.5, without valve	-	25	In stock	Enquiry
FW-060-EUM14	Plug DN 6 with GZ M14x1.5, without valve	-	25	In stock	Enquiry
FW-060-EUM8	Plug DN 6 with GZ M8x0.75, without valve	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DN 6 quick coupling plug with external BSP and metric thread, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 6 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (Viton). Material: brass (plug body, valve), stainless steel (spring).
