Can the Socket DN 6 quick connector with female thread, TST 060 series, brass, withstand 25 bar pressure and temperatures up to 200Â°C when used with water, hot oil, or steam?

Yes. The Socket DN 6 quick connector with female thread, TST 060 series, brass is rated for a working pressure of 25 bar and an operating temperature range from -20Â°C to +200Â°C (with Viton seals). It is explicitly specified for use with water (including cleaning machines), hot oil, and steam. Construction materials.brass body/connection/valve sleeve and stainless steel spring/ring/balls.are suitable for these media and conditions. Ensure correct assembly, compatible thread sealing, and that your specific application (e.g., continuous steam service, thermal cycling, or aggressive fluids) does not require additional verification or certification.

Is the Socket DN 6 quick connector with female thread, TST 060 series, brass suitable for cooling injection molds and casting parts?

Yes. The Socket DN 6 quick connector with female thread, TST 060 series, brass is suitable for cooling injection molds and casting parts. Description states itâs widely used in industry for cooling injection molds and parts made of plastics, aluminum, brass and zinc alloys. It supports water (including cleaning machines), hot oil and steam, has 6 mm flow diameter, 25 bar working pressure and an operating range of -20Â°C to +200Â°C (with Viton), and is made of brass with stainless steel internal parts-appropriate for typical mold cooling and casting applications.

Does the Socket DN 6 quick connector with female thread, TST 060 series, brass require special maintenance for steam use?

Socket DN 6 quick connector with female thread, TST 060 series, brass does not require any special or additional maintenance solely because it is used with steam, provided you follow normal maintenance practices and the stated operating limits. Key points: - Material and ratings: The product is brass with stainless steel spring/ring/balls, rated for working pressure up to 25 bar and operating temperature range â20Â°C to +200Â°C (with Viton). These specifications allow steam use within that temperature/pressure envelope. - Seal compatibility: Ensure the seal material (Viton) is compatible with the steam conditions you will use (temperature, pressure, possible contaminants). Viton is generally suitable for saturated steam up to its temperature rating; do not exceed +200Â°C. - Regular inspection: Periodically check for wear, corrosion, or deposits (scale) from steam, which can affect sealing and valve operation. Inspect O-rings/valves and replace if damaged. - Cleaning and descaling: If using hard or mineral-rich steam, implement descaling or flushing schedules to prevent buildup that can impede flow or sealing. - Lubrication and parts: Use only lubricants and replacement parts compatible with steam and the connector materials. Avoid non-compatible greases that degrade at steam temperatures. - Installation and operation: Operate within specified pressure and temperature limits. Ensure proper thread sealing and avoid over-tightening. Follow safe steam handling procedures. In summary: No special maintenance beyond standard checks, seal verification/replacement, and periodic cleaning/descaling when needed, as long as steam service stays within the connectorâs rated temperature and pressure.

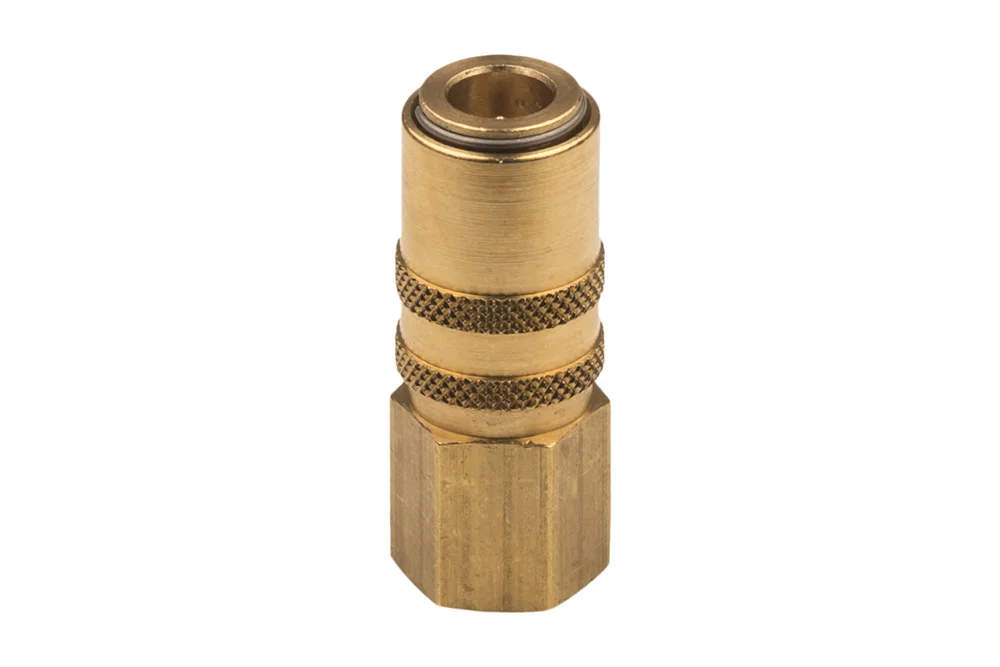

Socket DN 6 quick connector with female thread, TST 060 series, brass

Additional information

Material	B – brass (bronze)

DN 6 quick coupling socket with internal BSP and metric thread, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 6 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK060-DG13	Socket DN 6 with 1/4" BSP female thread, with valve	-	25	In stock	Enquiry
FW-CSK060-DG17	Socket DN 6 with 3/8" BSP female thread, with valve	-	25	In stock	Enquiry
FW-CSK060-DGM10	Socket DN 6 with G1/2 M10x1, with valve	-	25	In stock	Enquiry
FW-CSK060-DGM14	Socket DN 6 with G1/2 M14x1.5, with valve	-	25	In stock	Enquiry
FW-SK060-DG13	Socket DN 6 with 1/4" BSP female thread, without valve	-	25	In stock	Enquiry
FW-SK060-DG17	Socket DN 6 with 3/8" BSP female thread, without valve	-	25	In stock	Enquiry
FW-SK060-DGM10	Socket DN 6 with G1/2 M10x1, without valve	-	25	In stock	Enquiry
FW-SK060-DGM14	Socket DN 6 with G1/2 M14x1.5, without valve	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DN 6 quick coupling socket with internal BSP and metric thread, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 6 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).
