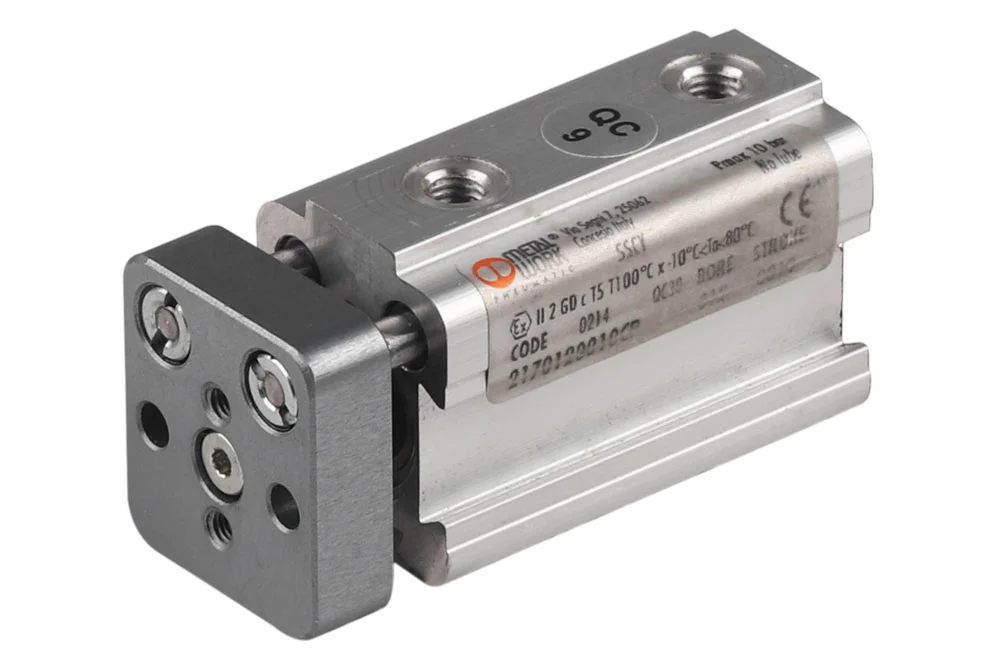

Short-stroke double-acting actuator with magnet protection, SSCY series
Double-acting short-stroke actuator with rotation protection using a magnet. The SSCY series is characterized by a compact design and is intended for installation in confined spaces. The operational lifespan of actuators without transverse load with NBR seals is 15 million cycles, and with polyurethane seals, it is 30 million cycles. Due to the variability of many factors affecting lifespan, the presented values should not be considered binding or guaranteed, but only as a reference. Available piston diameters: Ø 12 ÷ 80 mm. Working stroke: from 10 to 80 mm. Seal material of the actuator: NBR, polyurethane. Operating pressure: from 0.4 to 10 bar – depending on the piston diameter. Operating temperature: from -10°C to +80°C – depending on the type of seal.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Double-acting short-stroke actuator with rotation protection using a magnet. The SSCY series is characterized by a compact design and is intended for installation in confined spaces. The operational lifespan of actuators without transverse load with NBR seals is 15 million cycles, and with polyurethane seals, it is 30 million cycles. Due to the variability of many factors affecting lifespan, the presented values should not be considered binding or guaranteed, but only as a reference. Available piston diameters: Ø 12 ÷ 80 mm. Working stroke: from 10 to 80 mm. Seal material of the actuator: NBR, polyurethane. Operating pressure: from 0.4 to 10 bar – depending on the piston diameter. Operating temperature: from -10°C to +80°C – depending on the type of seal.
Additional information
| Maximum operating temperature [°C] | 80 |
|---|---|
| Minimum operating temperature [°C] | -10 |
