Is the Packing screw for DIN 3015 double clamp available in different lengths and thread sizes for stacking clamps?

Yes. The Packing screw for DIN 3015 double clamp Format is available with both external and internal metric threads to enable stacking clamps one on top of the other. Made of carbon steel and galvanized, it is supplied in metric thread sizes and corresponding lengths suitable for the double-clamp (type 301) stacking application. For exact thread dimensions and lengths offered, check the supplierâs product sheet or contact the manufacturer to confirm availability for your specific stacking and pipe-diameter requirements.

Can the Packing screw for DIN 3015 double clamp be used with stainless steel or non-galvanized clamps without corrosion issues?

No. The Packing screw for DIN 3015 double clamp is made of galvanized carbon steel. Used with stainless steel or non-galvanized clamps this can create a galvanic corrosion risk where dissimilar metals contact, especially in moist or corrosive environments. For long-term corrosion resistance match materials (stainless steel screw with stainless clamps) or use appropriate corrosion-resistant coatings, isolation layers, or sacrificial protection. If short-term or dry, low-corrosion conditions exist, the galvanized screw may be acceptable, but for reliable, long-term use choose compatible materials.

Does the Packing screw for DIN 3015 double clamp support torque specifications for stacking clamps?

No. the Packing screw for DIN 3015 double clamp does not, by itself, provide specified torque values for stacking clamps. Explanation: The description of the Packing screw for DIN 3015 double clamp (Format). âPackage screw for double clamp DIN 3015 type 301 with external and internal metric thread, intended for mounting clamps one on top of the other. Material: carbon steel, galvanized.â. identifies geometry, threads, intended use and material, but does not include torque specifications. Torque capacities for stacked/clamped assemblies depend on multiple factors not specified here: thread size and pitch, tensile strength and hardness of the carbon steel used, plating thickness and friction, clamp geometry, clamp material and thickness, assembly preload required, and safety factors. Therefore, to obtain torque specifications for stacking clamps you need either: - Manufacturerâs technical data or assembly instructions that list recommended tightening torques for the specific screw/thread/class, or - Material property and thread class data (e.g., steel grade, thread tolerance) plus engineering calculations (clamp load, friction coefficient) to derive required torque, or - Testing/validation under expected service conditions. Conclusion: The Packing screw for DIN 3015 double clamp (Format) description alone does not support definitive torque specifications for stacking clamps; consult the screw/clamp manufacturer or perform engineering assessment/testing to determine correct torque.

Packing screw for DIN 3015 double clamp

All products, Clamps for hydraulic pipes/

Additional information

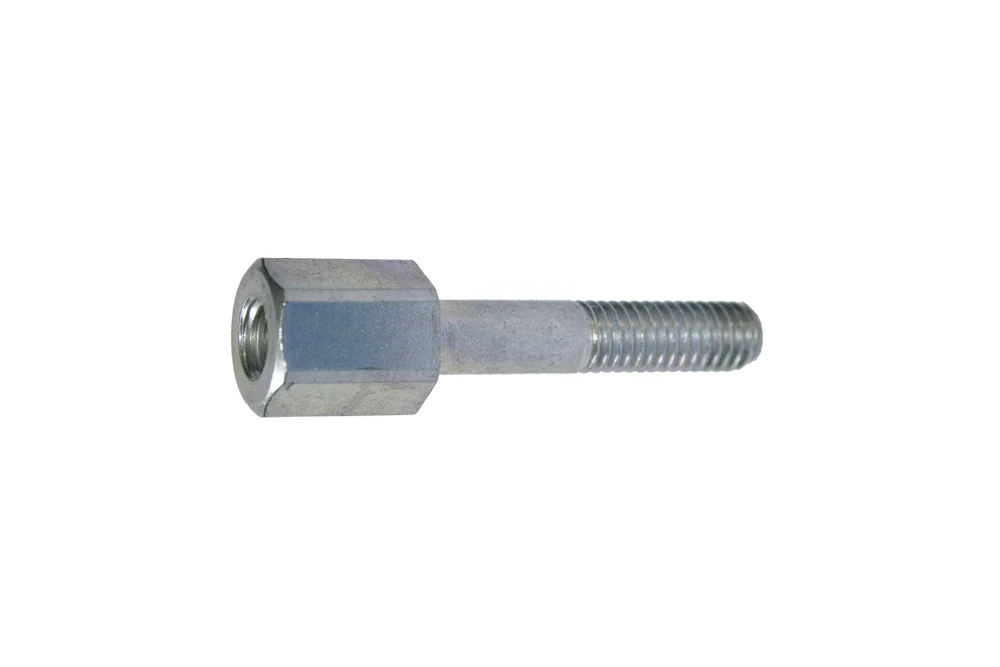

Package screw for double clamp DIN 3015 type 301 with external and internal metric thread, intended for mounting clamps one on top of the other. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-ADVTEA-1	M6x20 package screw, double thread, grade 1	-	-	In stock	Enquiry
TC-ADVTEA-2	M8x20 pack screw, double thread, grade 2	-	-	In stock	Enquiry
TC-ADVTEA-3	M8x29 package screw, double thread, grade 3	-	-	In stock	Enquiry
TC-ADVTEA-4	M8x34 package screw, double thread, grade 4	-	-	In stock	Enquiry
TC-ADVTEA-5	M8x47 pack screw, double thread, grade 5	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Package screw for double clamp DIN 3015 type 301 with external and internal metric thread, intended for mounting clamps one on top of the other. Material: carbon steel, galvanized.
