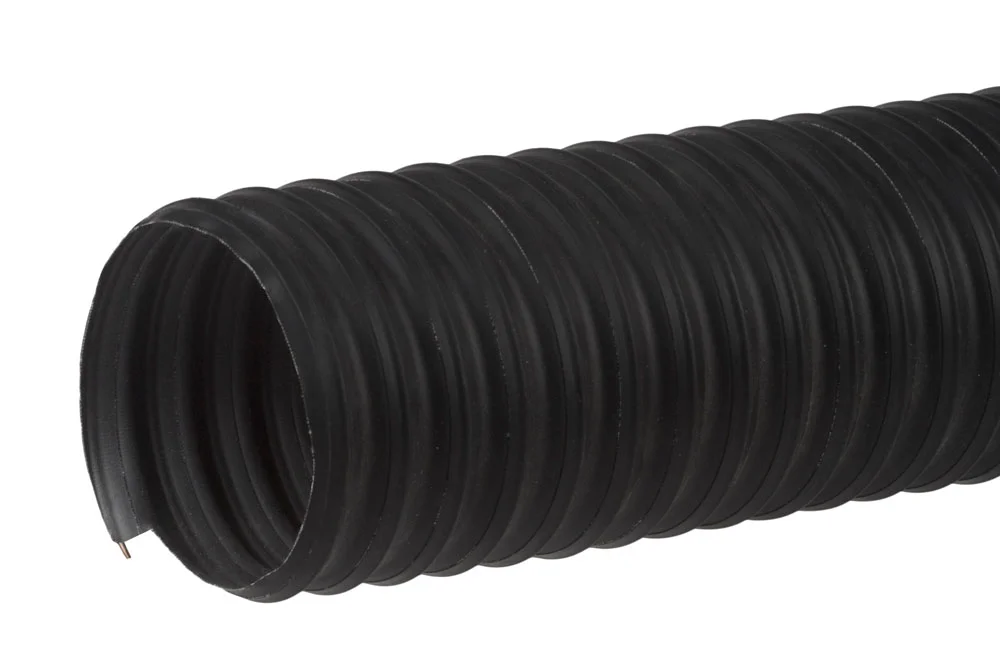

Hose ducting for conveying vapours acids and solvents P2SP, P2SPSE
Light, very flexible and pliable hose intended for discharge aggressive chemical vapours and for use in elevated temperature. good resistance to temperature, good resistance to vapours acids and solvents. resistant also on radiation UV, ozone, hydrolysis and corrosion biological. strength on bending. used for mechanical extraction vapours, air conditioning and ventilation in vehicles mechanical (buses, cars and trailers camping, boats recreational etc.), on inlets air for engines and compressors, in dryers granulates and plastics, in blow-moulding machines film etc. Other diameters are available on special order in the scope 15 ÷ 800 mm. version flame-retardant P2SP SE is compliant with requirements standards DIN 4102 B1 for materials construction. Hose material: fabric polyester impregnated black TPE (thermoplastic elastomer). Wall thickness: 0.4 mm. Reinforcement: spiral with wire steel. Operating temperature: od -40°C up to +150°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Light, very flexible and pliable hose intended for discharge aggressive chemical vapours and for use in elevated temperature. good resistance to temperature, good resistance to vapours acids and solvents. resistant also on radiation UV, ozone, hydrolysis and corrosion biological. strength on bending. used for mechanical extraction vapours, air conditioning and ventilation in vehicles mechanical (buses, cars and trailers camping, boats recreational etc.), on inlets air for engines and compressors, in dryers granulates and plastics, in blow-moulding machines film etc. Other diameters are available on special order in the scope 15 ÷ 800 mm. version flame-retardant P2SP SE is compliant with requirements standards DIN 4102 B1 for materials construction. Hose material: fabric polyester impregnated black TPE (thermoplastic elastomer). Wall thickness: 0.4 mm. Reinforcement: spiral with wire steel. Operating temperature: od -40°C up to +150°C.
Additional information
| Material | PEE – polyester |
|---|---|
| Maximum operating temperature [°C] | 150 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | yes |
| Standard length [m] | 10, 2, 25, 30, 4 |
| Reinforcement | steel spiral |
