Is the EZ-COIL P-series reel winder with MP20 hose, carbon steel compatible with food-grade fluids and easy to sanitize?

The EZ-COIL P-series reel winder with MP20 hose, carbon steel is designed for industries including food, but it is not explicitly described as food-grade or certified for direct contact with food. Key points affecting suitability and sanitization: - Materials: drum and many fittings are carbon steel (powder-coated), swivel coupling is brass. Carbon steel and brass are not inherently stainless or corrosion-resistant the way food-grade stainless steel (e.g., 316) is, and powder coating may degrade with repeated aggressive cleaning. - Hose: MP20 is intended for air, water, light chemicals, polyurethane/epoxy paints and water-based solvents . it is not specified as a food-grade hose or compliant with common food-contact standards (e.g., FDA, EU 10/2011, NSF). - Cleaning/sanitization: Powder-coated carbon steel and brass components can be cleaned, but they are more vulnerable to corrosion and coating damage from frequent use of hot caustic cleaners or steam sanitation. The operating temperature limit (+65Â°C) also restricts the use of high-temperature sanitization methods. - Risk: Without explicit food-contact certification for the hose and corrosion-resistant materials for all wet-contact parts, the unit is not recommended for direct handling of food-grade fluids where regulatory compliance and frequent sanitary cleaning are required. Recommendation: For food-grade fluids and easy sanitization, choose a reel with certified food-grade hose and stainless-steel (preferably 316) wetted parts, plus stated compliance with relevant food-safety standards.

Can the EZ-COIL P-series reel winder with MP20 hose, carbon steel be used with corrosive or abrasive chemicals without damaging the drum or swivel coupling?

EZ-COIL P-series reel winder with MP20 hose, carbon steel is intended for air, water, and light chemicals, polyurethane and epoxy paints, and water-based solvents. Drum is powder-coated carbon steel and swivel coupling is brass; fittings/adapters are carbon steel. These materials are not suitable for strongly corrosive chemicals or highly abrasive media. Use with mildly corrosive or abrasive substances may accelerate wear and shorten service life despite the EZ-Coil mechanism. For aggressive corrosives or abrasive slurries, choose reels and couplings made from corrosion-resistant materials (stainless steel, specialized alloys, or suitable coatings) and compatible hoses. If unsure, consult the chemical compatibility data and the manufacturer before use.

Can the EZ-COIL P-series reel winder with MP20 hose, carbon steel operate reliably at temperatures up to +65Â°C?

Yes. The EZ-COIL P-series reel winder with MP20 hose, carbon steel is specified for an operating temperature up to +65Â°C. Its powder-coated carbon steel drum, brass swivel coupling, carbon steel fittings/adapters/sleeves, and the MP20 hose (rated for air, water, light chemicals, polyurethane and epoxy paints, and water-based solvents) are designed to operate reliably at temperatures up to that limit. Ensure your specific media and application conditions (pressure, chemical concentration, and exposure duration) are compatible with the listed materials to maintain safety and longevity.

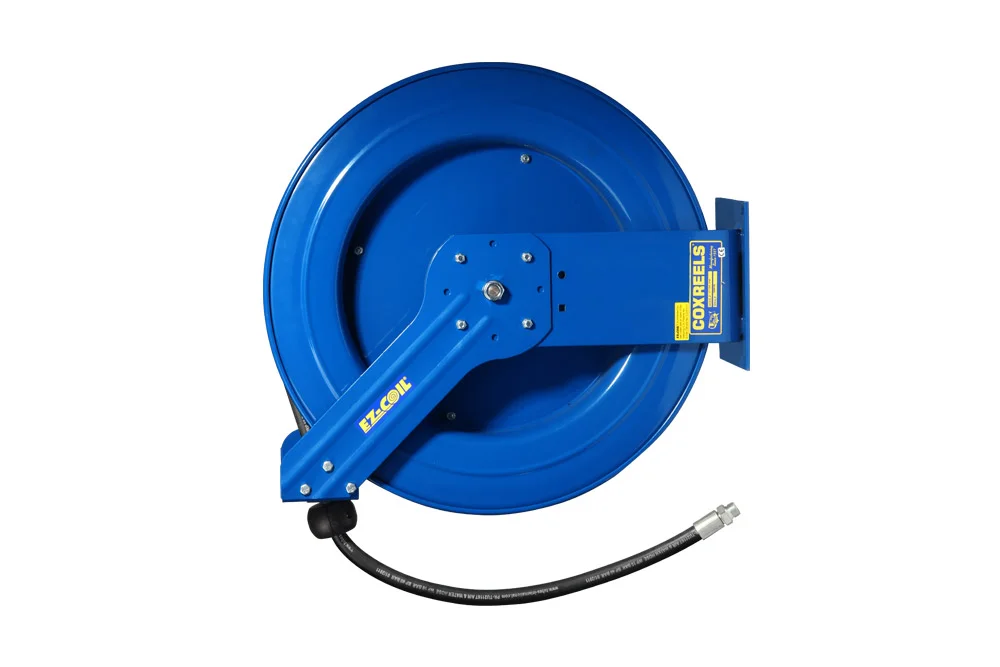

Reel drum EZ-COIL series P with a hose MP20, steel carbon

All products, Spring-driven hose reels/

Additional information

Material	CS – steel (cast iron)
Maximum operating temperature [°C]	65

A reel of carbon steel painted powder intended for industry food, chemical, plants production, workshops repair, itp. has unique mechanism spring EZ-Coil®, which allows wind automatically hose in time for 80% slower than traditional systems spring. System ten increases safety use the operator, extends service life drum, coupling swivel and hose. A reel equipped is in hose MP20 intended for transferring air, water and light chemicals, paints polyurethane, epoxy and na base solvents water, terminated fitting with male thread 3/8″ BSP (sealing butt). mounted stopper prevents retraction hose. Material drum: steel carbon (color blue). Material coupling swivel: brass. fitting, adapters and ferrules: steel carbon. Operating temperature: up to +65°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TU-01-11-2873	Reel EZ P with a hose MP20 DN10 Lc=15m	10	20	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A reel of carbon steel painted powder intended for industry food, chemical, plants production, workshops repair, itp. has unique mechanism spring EZ-Coil®, which allows wind automatically hose in time for 80% slower than traditional systems spring. System ten increases safety use the operator, extends service life drum, coupling swivel and hose. A reel equipped is in hose MP20 intended for transferring air, water and light chemicals, paints polyurethane, epoxy and na base solvents water, terminated fitting with male thread 3/8″ BSP (sealing butt). mounted stopper prevents retraction hose. Material drum: steel carbon (color blue). Material coupling swivel: brass. fitting, adapters and ferrules: steel carbon. Operating temperature: up to +65°C.
