Is the Heavy duty HDC heavy duty screw clamp, carbon steel suitable for reinforced industrial hoses and high-pressure applications?

Yes. The Heavy duty HDC heavy duty screw clamp, carbon steel is suitable for reinforced industrial hoses and highâpressure applications where a robust, tight connection is required. Its features that support this use: - Designed for heavy loads with a hinged closure and two full pins for strong, reliable clamping force. - Recommended specifically for thickâwalled, reinforced industrial hoses. - Wide steel band (18â26 mm) distributes pressure and, with rolled edges, minimizes damage to hose covers. - Galvanized steel construction provides durability and corrosion resistance. - Marked band shows min/max diameters and material, helping correct selection. - Hexagonal screw head allows use of standard tools to achieve high torque for secure tightening. Limitations: While suitable for many reinforced hoses and highâpressure systems, confirm clamp size matches hose diameter and verify compatibility with the specific pressure, temperature, and chemical conditions of your application. If your system requires certified highâpressure fittings or stainless steel for aggressive environments, consider those alternatives.

Can the Heavy duty HDC heavy duty screw clamp, carbon steel be used repeatedly without losing clamping strength?

Yes. The Heavy duty HDC heavy duty screw clamp, carbon steel is designed for repeated use without significant loss of clamping strength. Its durable galvanized steel construction, hinged closure with two full pins, and hexagonal screw head enable reliable, tight connections of thick-walled, reinforced industrial hoses. The rolled edges protect hose surfaces during repeated application and removal. Marked minimum/maximum diameters help ensure correct sizing, which preserves clamp performance over multiple cycles. Proper installation and avoiding over-torquing will maximize its longevity and maintain clamping strength.

What torque range is recommended when tightening the Heavy duty HDC heavy duty screw clamp, carbon steel to avoid hose damage?

For the Heavy duty HDC heavy duty screw clamp, carbon steel, to avoid damaging thick-walled, reinforced industrial hoses, tighten to a moderate, controlled torque. Because the clamp is made of galvanized carbon steel with rolled edges to protect the hose, a typical safe torque range is 5â10 Nm (44â88 inÂ·lbf). Start at the lower end, inspect the hose and clamp seating, and do not exceed 12 Nm (106 inÂ·lbf) to prevent crushing or cutting into the hose. Use common tools (flat wrench, socket, adjustable) and check the clamp markings for correct diameter; retighten after initial pressurization if needed.

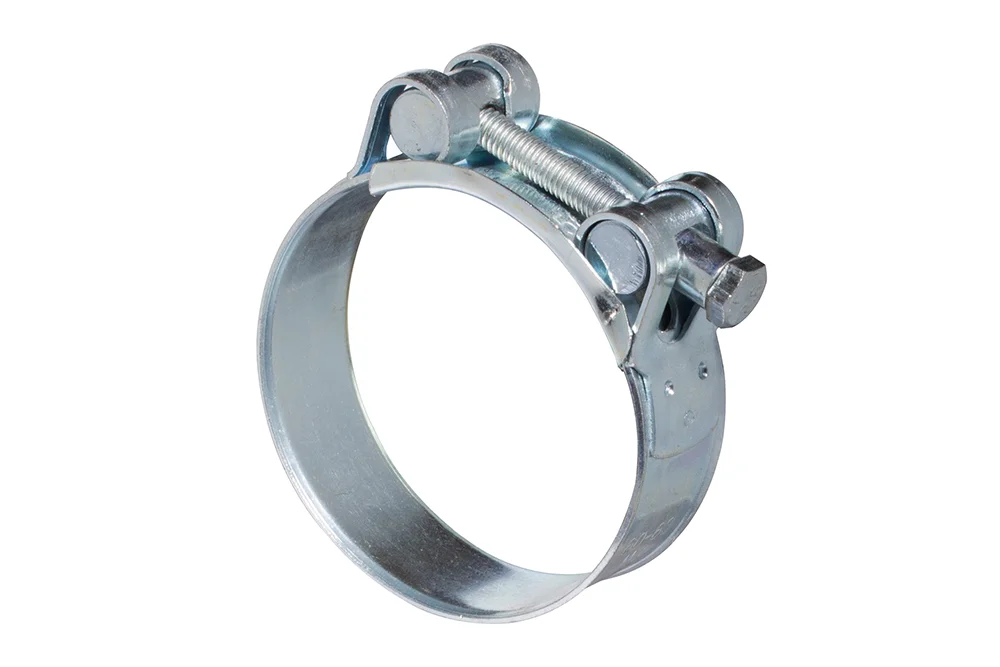

Heavy duty HDC heavy duty screw clamp, carbon steel

All products, Clamps for mounting ends/

Additional information

Material	CS – steel (cast iron)

Strong screw clamp with a hinged closure for heavy loads features a durable construction and two full pins. Recommended for tight connections of thick-walled, reinforced industrial hoses. The clamp is made from high-quality steel band with a width ranging from 18 mm to 26 mm. The rolled edges of the band prevent damage to the surface of the hose on which the clamp operates. The clamp has markings on the band indicating the minimum and maximum diameter as well as the material from which it is made. Thanks to the hexagonal head of the screw, commonly used tools such as flat wrenches, socket wrenches, and adjustable wrenches can be utilized. Material: all components made of galvanized steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-HDC-017-019-W1	HDC clamp 17÷19 mm, width 18 mm, W1	-	-	In stock	Enquiry
AB-HDC-020-022-W1	HDC clamp 20÷22 mm, width 18 mm, W1	-	-	In stock	Enquiry
AB-HDC-023-025-W1	HDC clamp 23÷25 mm, width 18 mm, W1	-	-	In stock	Enquiry
AB-HDC-026-028-W1	HDC clamp 26÷28 mm, width 18 mm, W1	-	-	In stock	Enquiry
AB-HDC-029-031-W1	HDC clamp 29÷31 mm, width 20 mm, W1	-	-	In stock	Enquiry
AB-HDC-032-035-W1	HDC clamp 32÷35 mm, width 20 mm, W1	-	-	In stock	Enquiry
AB-HDC-036-039-W1	HDC clamp 36÷39 mm, width 20 mm, W1	-	-	In stock	Enquiry
AB-HDC-040-043-W1	HDC clamp 40÷43 mm, width 20 mm, W1	-	-	In stock	Enquiry
AB-HDC-044-047-W1	HDC clamp 44÷47 mm, width 22 mm, W1	-	-	In stock	Enquiry
AB-HDC-048-051-W1	HDC clamp 48÷51 mm, width 22 mm, W1	-	-	In stock	Enquiry
AB-HDC-052-055-W1	HDC clamp 52÷55 mm, width 22 mm, W1	-	-	In stock	Enquiry
AB-HDC-056-059-W1	HDC clamp 56÷59 mm, width 22 mm, W1	-	-	In stock	Enquiry
AB-HDC-060-063-W1	HDC clamp 60÷63 mm, width 22 mm, W1	-	-	In stock	Enquiry
AB-HDC-064-067-W1	HDC clamp 64÷67 mm, width 22 mm, W1	-	-	In stock	Enquiry
AB-HDC-068-073-W1	HDC clamp 68÷73 mm, width 24 mm, W1	-	-	In stock	Enquiry
AB-HDC-074-079-W1	HDC clamp 74÷79 mm, width 24 mm, W1	-	-	In stock	Enquiry
AB-HDC-080-085-W1	HDC clamp 80÷85 mm, width 24 mm, W1	-	-	In stock	Enquiry
AB-HDC-086-091-W1	HDC clamp 86÷91 mm, width 24 mm, W1	-	-	In stock	Enquiry
AB-HDC-092-097-W1	HDC clamp 92÷97 mm, width 24 mm, W1	-	-	In stock	Enquiry
AB-HDC-098-103-W1	HDC clamp 98÷103 mm, width 24 mm, W1	-	-	In stock	Enquiry
AB-HDC-104-112-W1	HDC clamp 104÷112 mm, width 24 mm, W1	-	-	In stock	Enquiry
AB-HDC-113-121-W1	HDC clamp 113÷121 mm, width 24 mm, W1	-	-	In stock	Enquiry
AB-HDC-122-130-W1	HDC clamp 122÷130 mm, width 24 mm, W1	-	-	In stock	Enquiry
AB-HDC-131-139-W1	HDC clamp 131÷139 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-140-148-W1	HDC clamp 140÷148 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-149-161-W1	HDC clamp 149÷161 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-162-174-W1	HDC clamp 162÷174 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-175-187-W1	HDC clamp 175÷187 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-188-200-W1	HDC clamp 188÷200 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-201-213-W1	HDC clamp 201÷213 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-214-226-W1	HDC clamp 214÷226 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-227-239-W1	HDC clamp 227÷239 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-240-252-W1	HDC clamp 240÷252 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-253-265-W1	HDC clamp 253÷265 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-266-278-W1	HDC clamp 266÷278 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-279-291-W1	HDC clamp 279÷291 mm, width 26 mm, W1	-	-	In stock	Enquiry
AB-HDC-294-304-W1	HDC clamp 294÷304 mm, width 26 mm, W1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Strong screw clamp with a hinged closure for heavy loads features a durable construction and two full pins. Recommended for tight connections of thick-walled, reinforced industrial hoses. The clamp is made from high-quality steel band with a width ranging from 18 mm to 26 mm. The rolled edges of the band prevent damage to the surface of the hose on which the clamp operates. The clamp has markings on the band indicating the minimum and maximum diameter as well as the material from which it is made. Thanks to the hexagonal head of the screw, commonly used tools such as flat wrenches, socket wrenches, and adjustable wrenches can be utilized. Material: all components made of galvanized steel.
