Is the Copper flat gasket, type UM suitable for threaded connections exposed to temperatures up to +250Â°C in automotive and machine construction applications?

Yes. Copper flat gasket, type UM Format is suitable for threaded connections in automotive and machine construction applications up to +250Â°C. The product description specifically states it is intended for threaded connections (machine construction, automotive industry, etc.) and has an operating temperature rating of up to +250Â°C, which matches your requirement. Ensure proper installation, correct sizing and surface finish of mating parts, and consider any chemical exposure or dynamic loading in your specific application to confirm long-term suitability.

Can Copper flat gasket, type UM be used for threaded connections in engines and machinery operating at temperatures up to +250Â°C?

Yes. Copper flat gasket, type UM Format is intended for threaded connections in machine construction and the automotive industry and is suitable for use at operating temperatures up to +250Â°C. Ensure correct gasket size, proper surface finish and bolt torque per manufacturer recommendations to achieve reliable sealing in your specific application.

Does Copper flat gasket, type UM maintain sealing integrity in threaded joints at temperatures reaching +250Â°C?

Yes. Copper flat gasket, type UM Format is designed for threaded connections (machine construction, automotive industry, etc.) and is specified for operation up to +250Â°C. When installed correctly in threaded joints it will maintain sealing integrity at temperatures reaching +250Â°C, provided the following conditions are met: - Proper selection of gasket thickness and diameter to suit the thread size and flange/seating geometry. - Clean, undamaged sealing surfaces and correct alignment to ensure even compression. - Appropriate bolt torque to achieve the necessary compressive load without overstressing the gasket or the joint. - Compatibility with the media (chemical compatibility) and avoidance of corrosive environments that could degrade the copper or the joint components at elevated temperature. - Consideration of differential thermal expansion between mating parts; repetitive thermal cycling may require periodic inspection or retorquing. - For dynamic or vibratory applications, additional locking or joint design measures may be required to preserve preload. If these installation and service conditions are observed, Copper flat gasket, type UM Format will provide reliable sealing performance up to the specified +250Â°C.

Gasket flat copper, type UM

All products, General purpose seals/

Additional information

Maximum operating temperature [°C]	250

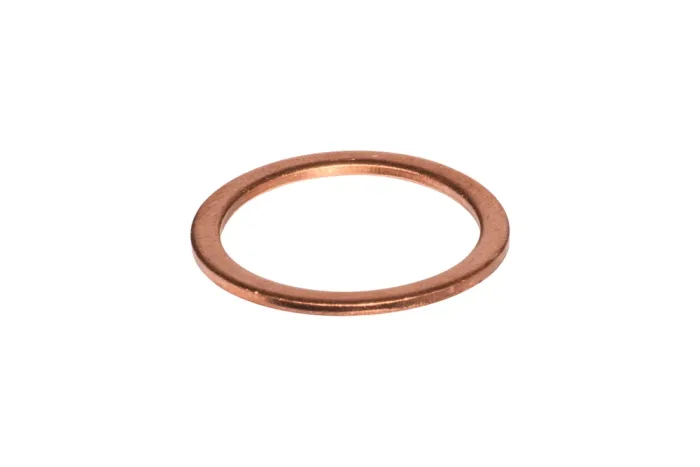

A flat copper seal intended for threaded connections (machine building, automotive industry, etc.). Operating temperature: up to +250°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-UM-06-10	Gasket copper 6x10x1.5	-	-	In stock	Enquiry
TI-UM-07-17,5-2	Gasket copper 7x17.5x2	-	-	In stock	Enquiry
TI-UM-08-12	Gasket copper 8x12x1.5	-	-	In stock	Enquiry
TI-UM-08-14	Gasket copper 8x14x1.5	-	-	In stock	Enquiry
TI-UM-10-14	Gasket copper 10x14x1.5 (1/8")	-	-	In stock	Enquiry
TI-UM-10-14-0,8	Gasket copper 10x14x0.8	-	-	In stock	Enquiry
TI-UM-10-16	Gasket copper 10x16x1.5 (1/8")	-	-	In stock	Enquiry
TI-UM-12-15	Gasket copper 12x15x1.5	-	-	In stock	Enquiry
TI-UM-12-18	Gasket copper 12x18x1.5	-	-	In stock	Enquiry
TI-UM-13-19	Gasket copper 13x19x1.5 (1/4")	-	-	In stock	Enquiry
TI-UM-14-20	Gasket copper 14x20x1.5	-	-	In stock	Enquiry
TI-UM-16-22	Gasket copper 16x22x1.5	-	-	In stock	Enquiry
TI-UM-17-21	Gasket copper 17x21x1.5 (3/8")	-	-	In stock	Enquiry
TI-UM-18-24	Gasket copper 18x24x1.5	-	-	In stock	Enquiry
TI-UM-20-26	Gasket copper 20x26x1.5	-	-	In stock	Enquiry
TI-UM-21-26	Gasket copper 21x26x1.5 (1/2")	-	-	In stock	Enquiry
TI-UM-22-27	Gasket copper 22x27x1.5	-	-	In stock	Enquiry
TI-UM-22-27-2	Gasket copper 22x27x2	-	-	In stock	Enquiry
TI-UM-24-30	Gasket copper 24x30x1.5 (5/8")	-	-	In stock	Enquiry
TI-UM-26-33	Gasket copper 26x33x1.5	-	-	In stock	Enquiry
TI-UM-27-33	Gasket copper 27x33x1.5 (3/4")	-	-	In stock	Enquiry
TI-UM-30-36	Gasket copper 30x36x1.5	-	-	In stock	Enquiry
TI-UM-33-40	Gasket copper 33x40x1.5 (1")	-	-	In stock	Enquiry
TI-UM-33-40-2	Gasket copper 33x40x2	-	-	In stock	Enquiry
TI-UM-42-49	Gasket copper 42x49x1.5 (1.1/4")	-	-	In stock	Enquiry
TI-UM-48-59	Gasket copper 48x59x1.5 (1.1/2")	-	-	In stock	Enquiry
