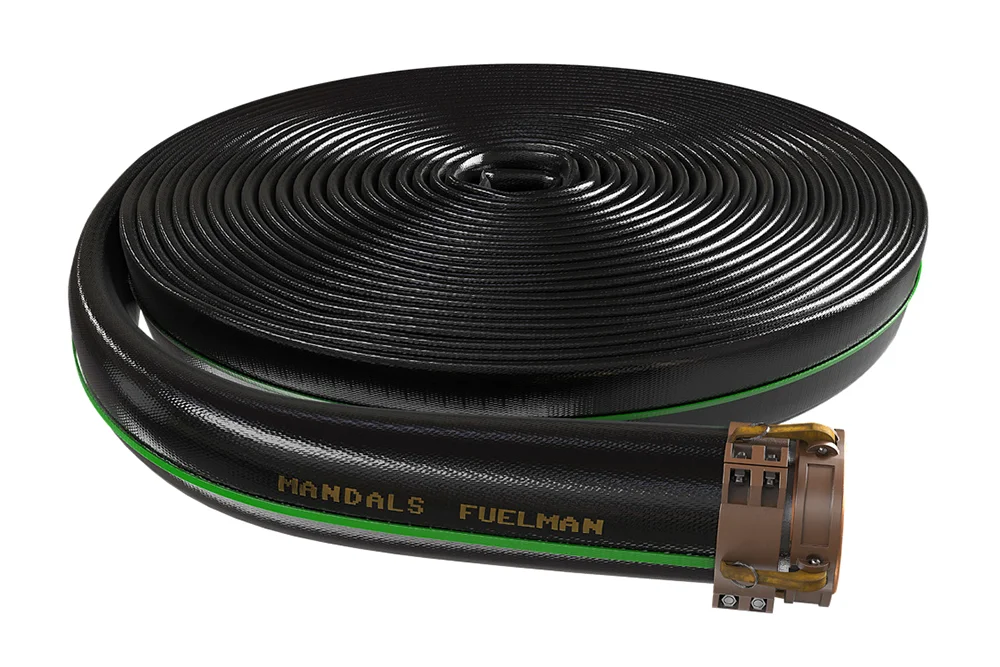

Flat hose delivery for fuels and liquid hydrocarbons FUELMAN
Strong, resistant to abrasion hose delivery for designed specially for conveying fuels, other liquid hydrocarbons or for use as hose antistatic general purpose. lighter and more flexible than standard hoses rubber, has buoyancy (stays on surface) in water fresh and salt. flat at rest, co facilitates operation and storage. intended for conveying and handling products petrochemical, oils and fuels in refineries, industry and transport. used for refuelling vessels, cleaning tanks, applications firefighting and military. Meets the requirements of standards MIL-PRF-370J for hoses for fuels liquid. antistatic – has two externally longitudinally arranged copper cable ensuring continuity electrical between fitting hose easily available for correct connection for ends (R ‹ 0.02 Ω/m, Exceeds the requirements of standards MIL-PRF-370J). inner surface hose smooth, not causing losses flow. resistant to abrasion, conditions atmospheric, hydrolysis, ozone, fuels and commonly used chemicals (recommended range pH: 5 ÷ 9). resistant to loads longitudinal during unwinding and pulling. Hose material: polyurethane (PUR) pressed in braid in process extrusion hose. Working pressure: from 7 bar to 11 bar – depending on the diameter hose (given pressure working for fuels). Operating temperature: od-50°C up to +50°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Strong, resistant to abrasion hose delivery for designed specially for conveying fuels, other liquid hydrocarbons or for use as hose antistatic general purpose. lighter and more flexible than standard hoses rubber, has buoyancy (stays on surface) in water fresh and salt. flat at rest, co facilitates operation and storage. intended for conveying and handling products petrochemical, oils and fuels in refineries, industry and transport. used for refuelling vessels, cleaning tanks, applications firefighting and military. Meets the requirements of standards MIL-PRF-370J for hoses for fuels liquid. antistatic – has two externally longitudinally arranged copper cable ensuring continuity electrical between fitting hose easily available for correct connection for ends (R ‹ 0.02 Ω/m, Exceeds the requirements of standards MIL-PRF-370J). inner surface hose smooth, not causing losses flow. resistant to abrasion, conditions atmospheric, hydrolysis, ozone, fuels and commonly used chemicals (recommended range pH: 5 ÷ 9). resistant to loads longitudinal during unwinding and pulling. Hose material: polyurethane (PUR) pressed in braid in process extrusion hose. Working pressure: from 7 bar to 11 bar – depending on the diameter hose (given pressure working for fuels). Operating temperature: od-50°C up to +50°C.
Additional information
| Material | PU – polyurethane |
|---|---|
| Maximum operating temperature [°C] | 50 |
| Minimum operating temperature [°C] | -50 |
| Vacuum resistance | no |
| Standard length [m] | 200 |
| Reinforcement | synthetic braid |
