Is the Foam and spray gun for lance and nozzle assembly, outlet quick-connect socket DN11.8, brass, AKBO safe to use at 24 bar and +95Â°C without additional trigger insulation?

Short answer: No . not recommended. Reasoning: The Foam and spray gun for lance and nozzle assembly, outlet quick-connect socket DN11.8, brass, AKBO specification lists a maximum working pressure of 24 bar and a maximum operating temperature of +95Â°C, so the body and internal seals are rated for those conditions. However the product description explicitly states âno insulation on the trigger.â At +95Â°C the stainless steel trigger and the operatorâs hand will be exposed to very high surface temperatures; EPDM cover and seals may protect internal parts but do not prevent the trigger from becoming dangerously hot. Without additional trigger insulation or a thermal barrier there is a substantial burn risk and reduced safe handling, particularly during extended use or repeated cycles. Also consider that exposure to nearâlimit temperature can accelerate seal wear and affect safe operation. Recommendation: Do not use without adding appropriate thermal insulation or an insulated trigger/handle accessory, wearing certified heatâresistant gloves, and confirming with the manufacturer that the trigger area is safe for direct manual operation at 95Â°C.

Can the Foam and spray gun for lance and nozzle assembly, outlet quick-connect socket DN11.8, brass, AKBO be used with different seal materials than EPDM for higher chemical compatibility?

Foam and spray gun for lance and nozzle assembly, outlet quick-connect socket DN11.8, brass, AKBO: The technical description states sealing and cover material as EPDM and gives max temperature and pressure but does not mention alternative seal options. Using different seal materials (e.g., Viton/FKM, NBR, PTFE) for higher chemical compatibility may be possible but requires confirmation from the manufacturer because changing seals can affect fit, chemical resistance, temperature limits and certification. Recommend contacting the manufacturer/supplier to ask if compatible seal kits or alternative elastomers are available and to verify compatibility with your specific chemicals, temperature and pressure conditions before modification.

Does the Foam and spray gun for lance and nozzle assembly, outlet quick-connect socket DN11.8, brass, AKBO require seasonal maintenance for EPDM seals?

Foam and spray gun for lance and nozzle assembly, outlet quick-connect socket DN11.8, brass, AKBO Format: Yes. EPDM seals benefit from seasonal inspection and basic maintenance. Although EPDM is chemically resistant and rated for temperatures up to +95Â°C, regular checks help prevent wear, hardening, swelling or damage from detergents and prolonged heat exposure. Recommended actions: - Inspect seals and blue EPDM cover visually and by touch before and after heavy seasonal use. - Clean seals with fresh water and mild, nonâpetroleum-based detergent; avoid solvents that can degrade elastomers. - Lightly lubricate with an EPDMâcompatible silicone or glycerin lubricant if seals feel dry (do not use petroleum greases). - Replace seals showing cracks, flattening, stickiness or leakage. - Store the gun in a cool, dry place away from direct sunlight and freezing conditions when not in use. Following these steps will help maintain sealing performance and prolong service life under the gunâs specified maximum working pressure (24 bar) and temperature limits.

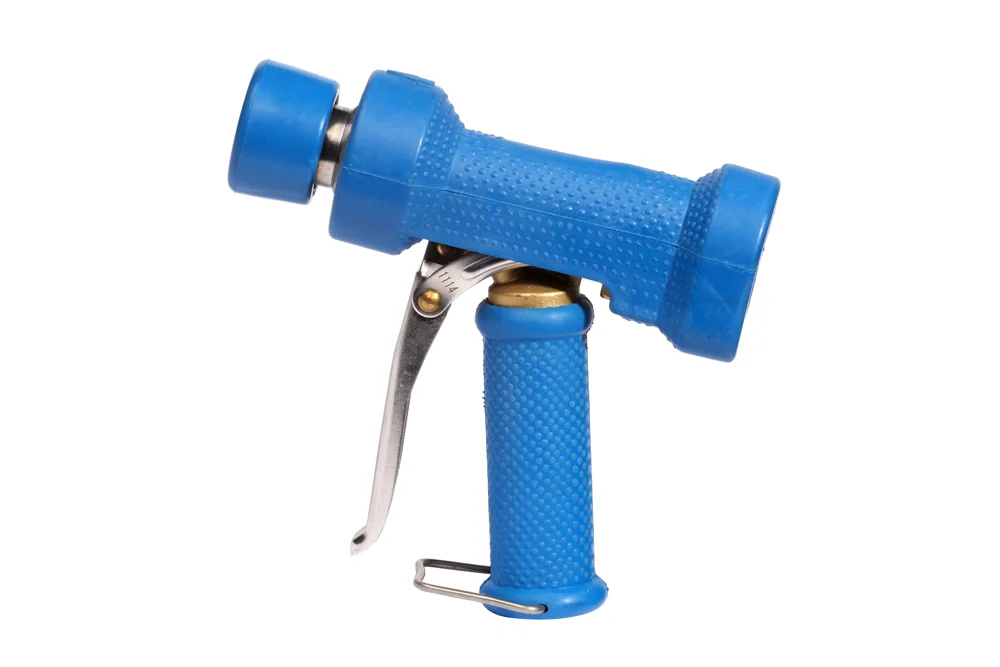

A gun for foam and spraying for mounting lances and nozzles, outlet socket quick coupling DN11.8, brass, AKBO

Additional information

A gun for foam and spraying for mounting lances and nozzles (na outlet socket quick coupling DN11.8). has smooth adjustment flow and lock trigger (without insulation na trigger). Automatic flow shut-off when the trigger is released. Material: brass. Trigger made of stainless steel. A guard made of blue EPDM rubber. Sealing: EPDM. Connection (inlet): 1/2″ BSP female. maximum pressure working: 24 bar. Maximum operating temperature: +95°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AK-KLMLCP2-BL	Gun for lances i nozzles AKBO, (inlet) 1/2" BSP female, (outlet) g. DN11.8 w guard, without insulated, brass, blue	-	24	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A gun for foam and spraying for mounting lances and nozzles (na outlet socket quick coupling DN11.8). has smooth adjustment flow and lock trigger (without insulation na trigger). Automatic flow shut-off when the trigger is released. Material: brass. Trigger made of stainless steel. A guard made of blue EPDM rubber. Sealing: EPDM. Connection (inlet): 1/2″ BSP female. maximum pressure working: 24 bar. Maximum operating temperature: +95°C.
