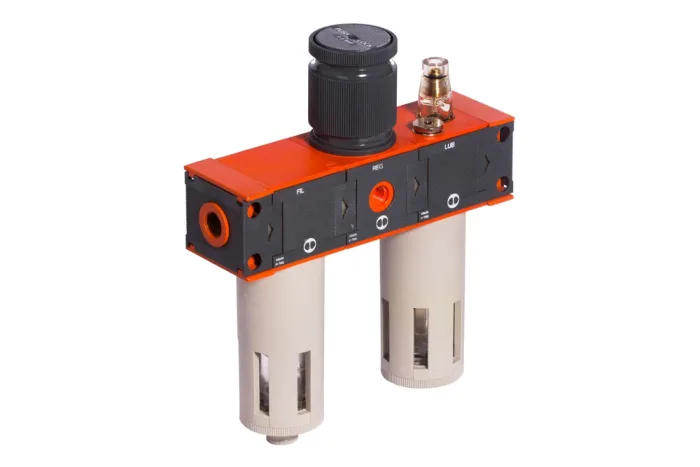

The FRL set series SKILLAIR® with a high degree of reliability consists of an air filter, a pressure reducing valve, and a lubricator. The purpose of the set is to purify the air supplied by the compressor, reduce and maintain a stable set pressure amidst fluctuations in supply pressure, and lubricate with an oil mist. Size: 100, 200, 300. Supply pressure: up to 15 bar, depending on size and type of discharge. Filtration degree: 5 µm, 20 µm, 50 µm. Output pressure range: 0÷8, 0÷12 bar. Connection: GW BSP 1/4″ ÷ 1″. Condensate discharge: manual / semi-automatic (RMSA), automatic (SAC, RA). Operating temperature: up to +50°C. Nominal flow: from 800 to 4500 l/min (at an inlet pressure of 6 bar Δp = 1 bar), depending on size.
The FRL set series SKILLAIR® with a high degree of reliability consists of an air filter, a pressure reducing valve, and a lubricator. The purpose of the set is to purify the air supplied by the compressor, reduce and maintain a stable set pressure amidst fluctuations in supply pressure, and lubricate with an oil mist. Size: 100, 200, 300. Supply pressure: up to 15 bar, depending on size and type of discharge. Filtration degree: 5 µm, 20 µm, 50 µm. Output pressure range: 0÷8, 0÷12 bar. Connection: GW BSP 1/4″ ÷ 1″. Condensate discharge: manual / semi-automatic (RMSA), automatic (SAC, RA). Operating temperature: up to +50°C. Nominal flow: from 800 to 4500 l/min (at an inlet pressure of 6 bar Δp = 1 bar), depending on size.
Additional information
Maximum operating temperature [°C]
50
Standard length [m]
10, 120, 15, 25, 3, 30, 50, 60
