What is the recommended operating viscosity range for the Positive displacement gear pump, Ã25.4 mm plate, right direction of rotation, flanged connections, TRALE?

Positive displacement gear pump, Ã25.4 mm plate, right direction of rotation, flanged connections, TRALE . recommended operating viscosity range: 30â45 cSt (acceptable overall range 10â600 cSt).

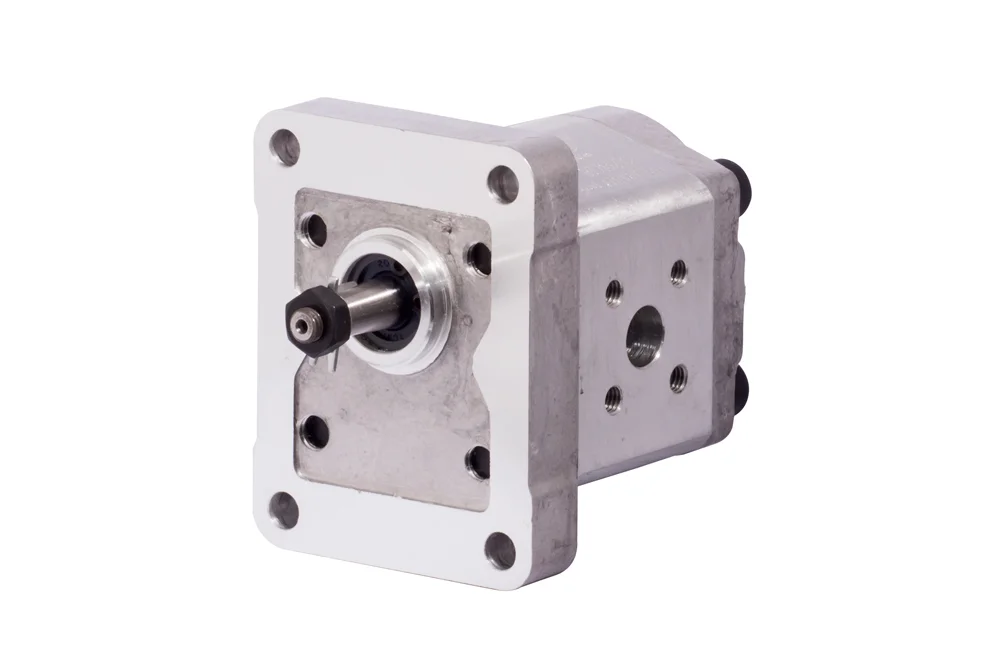

Positive displacement gear pump, Ø25.4 mm plate, right direction of rotation, flanged connections, TRALE

Q: Can the Positive displacement gear pump, Ã25.4 mm plate, right direction of rotation, flanged connections, TRALE handle hydraulic oils with viscosities up to 600 cSt?

Yes. Positive displacement gear pump, Ã25.4 mm plate, right direction of rotation, flanged connections, TRALE can handle hydraulic oils with viscosities up to 600 cSt. The product specification explicitly states liquid viscosity range from 10 cSt to 600 cSt (recommended 30â45 cSt), and medium is hydraulic oil type L-HM45 or equivalent. Ensure operation stays within the stated temperature limits (medium: -20Â°C to +90Â°C) and that continuous operation respects the maximum working pressure. NBR sealing and aluminum construction are compatible with typical hydraulic oils in that viscosity range.

All products, Hydraulic pumps/

Positive displacement gear pump, Ø25.4 mm plate, right direction of rotation, flanged connections, TRALE

Additional information

Maximum operating temperature [°C]	90
Minimum operating temperature [°C]	-20

Gear displacement pump (hydraulic), TRALE, with external gearing, intended for use in hydraulic systems of machines and equipment. Connections: flanged. Direction of rotation: right. The stated maximum working pressure applies to continuous operation. Material: body and mounting plate – aluminum, rear cover – aluminum. Sealing: NBR. Medium: hydraulic oil type L-HM45 or equivalent. Liquid viscosity: from 10 cSt to 600 cSt (recommended 30 ÷ 45). Operating temperature: from -20°C to +90°C (medium), from -20°C to +60°C (environment).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TL-BTD111D03	Gear pump G.1, 1.1 cm3/rev, plate 25.4 mm, with collar.	-	250	In stock	Enquiry
TL-BTD116D03	Gear pump G.1, 1.6 cm3/rev, plate 25.4 mm, with collar.	-	250	In stock	Enquiry
TL-BTD118D03	Gear pump G1, 1.8 cm3/rev, plate 25.4 mm, with collar.	-	250	In stock	Enquiry
TL-BTD127D03	Gear pump G1, 2.7 cm3/rev, plate 25.4 mm, with collar.	-	250	In stock	Enquiry
TL-BTD132D03	Gear pump G.1, 3.2 cm3/rev, plate 25.4 mm, connection collar.	-	250	In stock	Enquiry
TL-BTD137D03	Gear pump G.1, 3.7 cm3/rev, plate 25.4 mm, with collar.	-	250	In stock	Enquiry
TL-BTD148D03	Gear pump G1, 4.8 cm3/rev, plate 25.4 mm, with collar.	-	200	In stock	Enquiry
TL-BTD158D03	Gear pump G.1, 5.8 cm3/rev, plate 25.4 mm, with collar.	-	200	In stock	Enquiry
TL-BTD163D03	Gear pump G.1, 6.3 cm3/rev, plate 25.4 mm, with collar.	-	200	In stock	Enquiry
TL-BTD180D03	Gear pump, size 1, 8.0 cm3/rev, plate 25.4 mm, with collar.	-	200	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Gear displacement pump (hydraulic), TRALE, with external gearing, intended for use in hydraulic systems of machines and equipment. Connections: flanged. Direction of rotation: right. The stated maximum working pressure applies to continuous operation. Material: body and mounting plate – aluminum, rear cover – aluminum. Sealing: NBR. Medium: hydraulic oil type L-HM45 or equivalent. Liquid viscosity: from 10 cSt to 600 cSt (recommended 30 ÷ 45). Operating temperature: from -20°C to +90°C (medium), from -20°C to +60°C (environment).
